Model Image
Manufacturer

LG

Model Number

NB3730ANB

Description

300 Watt Sound Bar With Wireless Subwoofer

Interactive Exploded View

Parts List

Part Number Description
6910A90004A 6910A90004A AAA BATTERY

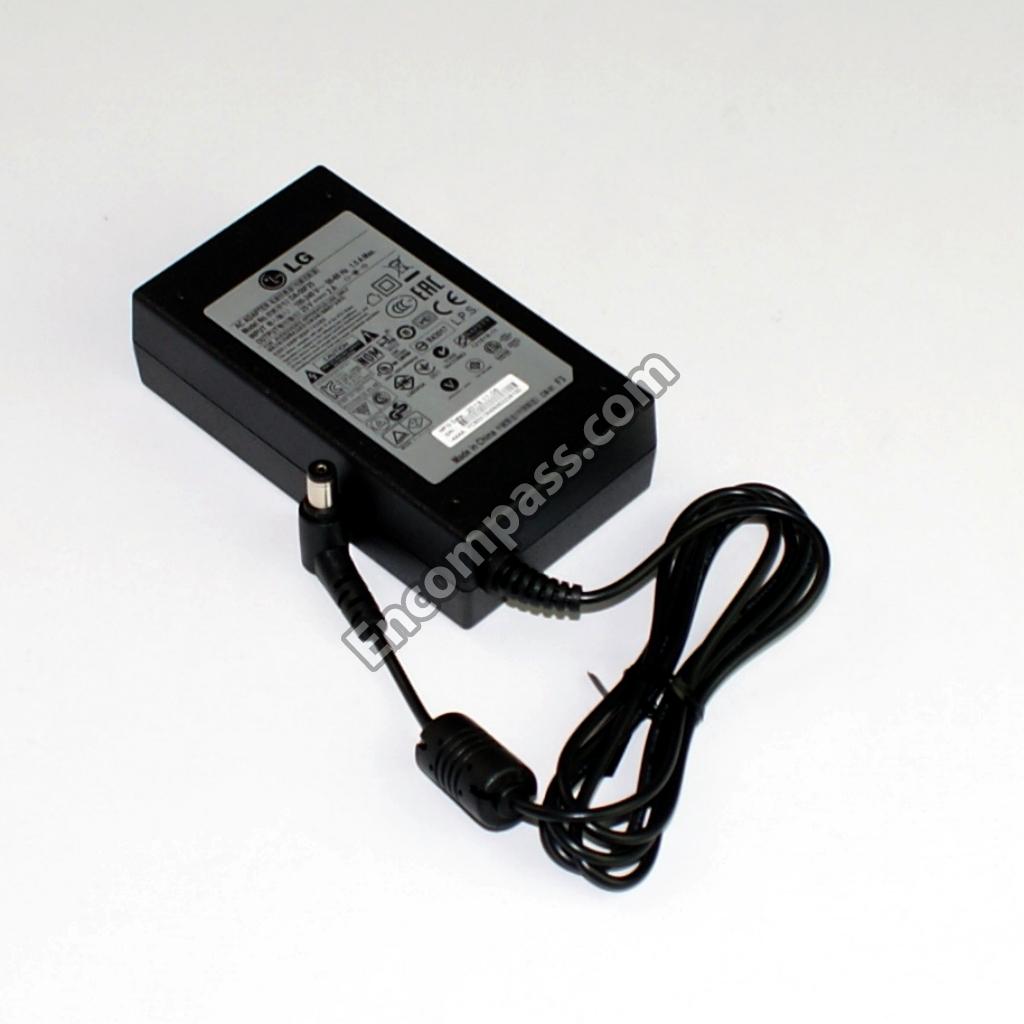

EAY62909702 EAY62909702 AC ADAPTER (NEED POWER CORD ALSO)
EAD63505502 EAD63505502 AC POWER CORD (NEED AC ADAPTER)
EBR76717801 EBR76717801 AMP PCB
MAF61906412 MAF61906412 BAG
EAT61633102 EAT61633102 BLUETOOTH MODULE PCB
MAY65713668 MAY65713668 BOX,MASTER
MAJ62422501 MAJ62422501 CABLE TIES
EAD62096302 EAD62096302 CABLE,FFC
EAD62096402 EAD62096402 CABLE,FFC
EAD62097302 EAD62097302 CABLE,FFC
EAD62246403 EAD62246403 CABLE,FFC
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP
0CH8106J691 0CH8106J691 CAPACITOR,AL,CHIP
0CZZR00035A 0CZZR00035A CAPACITOR,AL,CHIP
EAE30174501 EAE30174501 CAPACITOR,AL,CHIP
EAE39330001 EAE39330001 CAPACITOR,AL,CHIP
EAE60658901 EAE60658901 CAPACITOR,AL,CHIP
EAE60659101 EAE60659101 CAPACITOR,AL,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC120BK4AA 0CC120BK4AA CAPACITOR,CERAMIC,CHIP
0CC270BK61A 0CC270BK61A CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CC4R7BHFAA 0CC4R7BHFAA CAPACITOR,CERAMIC,CHIP
0CH1223K562 0CH1223K562 CAPACITOR,CERAMIC,CHIP
0CH1473K562 0CH1473K562 CAPACITOR,CERAMIC,CHIP
0CH1562K562 0CH1562K562 CAPACITOR,CERAMIC,CHIP
0CH1822K562 0CH1822K562 CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CK103DN56A 0CK103DN56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK104CKG6A 0CK104CKG6A CAPACITOR,CERAMIC,CHIP
0CK104DN56A 0CK104DN56A CAPACITOR,CERAMIC,CHIP
0CK105CC56A 0CK105CC56A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK105DF56A 0CK105DF56A CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CK152BKG6A 0CK152BKG6A CAPACITOR,CERAMIC,CHIP
0CK225DF56A 0CK225DF56A CAPACITOR,CERAMIC,CHIP
0CK226FF56A 0CK226FF56A CAPACITOR,CERAMIC,CHIP
0CK272BKF6A 0CK272BKF6A CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CK333DN56A 0CK333DN56A CAPACITOR,CERAMIC,CHIP
0CK475CD64A 0CK475CD64A CAPACITOR,CERAMIC,CHIP
0CZZB00019A 0CZZB00019A CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
EAE30383301 EAE30383301 CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE33947201 EAE33947201 CAPACITOR,CERAMIC,CHIP
EAE36194101 EAE36194101 CAPACITOR,CERAMIC,CHIP
EAE37475001 EAE37475001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
ABQ74165001 ABQ74165001 CASE ASSEMBLY
ABQ74165101 ABQ74165101 CASE ASSEMBLY
6630R-BF03F 6630R-BF03F CONNECTOR,BTOB
EAG00743103 EAG00743103 CONNECTOR,BTOB
6630X60142K 6630X60142K CONNECTOR,FFC/FPC/PIC
6630XE00124 6630XE00124 CONNECTOR,FFC/FPC/PIC

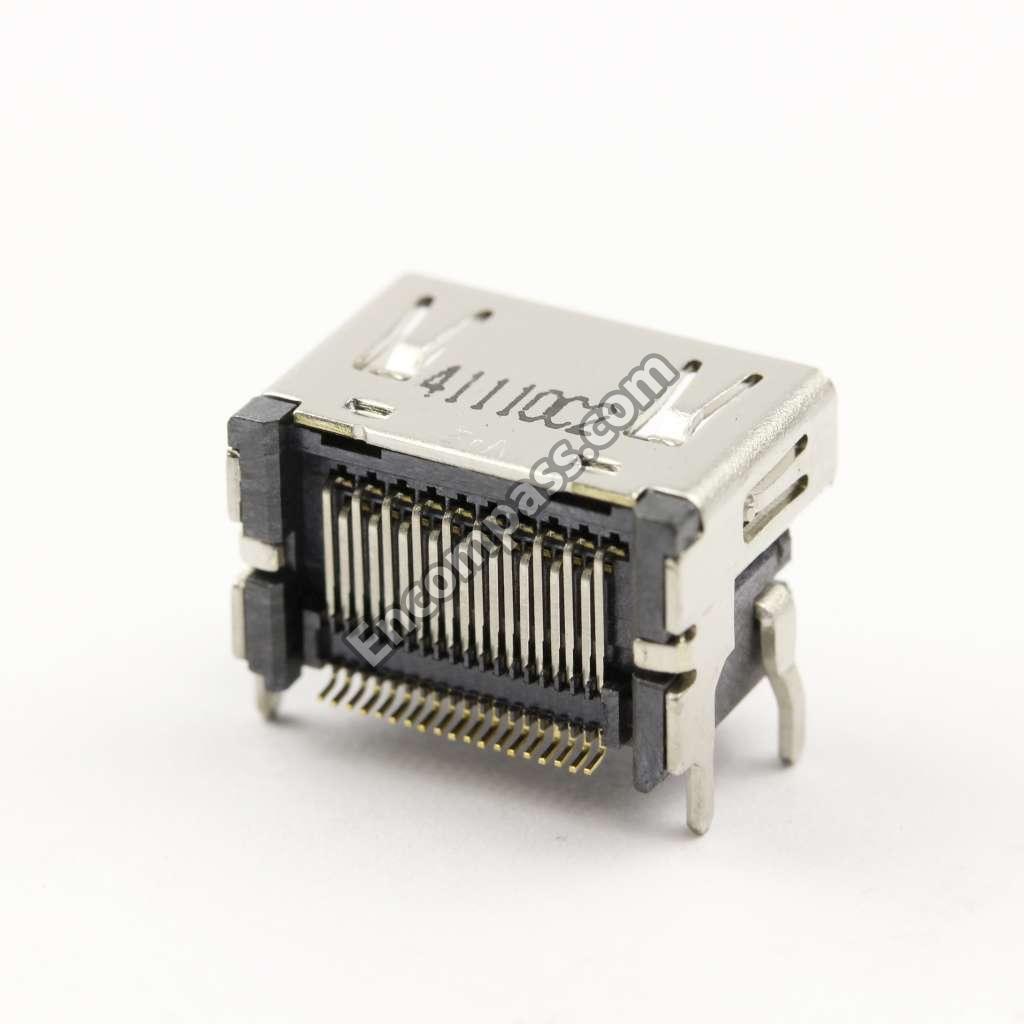

EAG62611202 EAG62611202 CONNECTOR,HDMI
EAG40457701 EAG40457701 CONNECTOR,USB
6602T25008A 6602T25008A CONNECTOR,WAFER
6602T25008B 6602T25008B CONNECTOR,WAFER
6630V90078E 6630V90078E CONNECTOR,WAFER
EAG62611104 EAG62611104 CONNECTOR,WAFER
EAG62611106 EAG62611106 CONNECTOR,WAFER
MCK67007901 MCK67007901 COVER
MCK67503301 MCK67503301 COVER
6212AB2220C 6212AB2220C CRYSTAL
6212AB2246C 6212AB2246C CRYSTAL
EAW32919201 EAW32919201 CRYSTAL
MCQ32325007 MCQ32325007 DAMPER
MCQ32325026 MCQ32325026 DAMPER
MCQ32325027 MCQ32325027 DAMPER
MCQ62096416 MCQ62096416 DAMPER
0DRTW00268A 0DRTW00268A DIODE,RECTIFIER
0DSKE00048A 0DSKE00048A DIODE,SCHOTTKY
EAH56919501 EAH56919501 DIODE,TVS
EAH61515001 EAH61515001 DIODE,TVS
EAH62033601 EAH62033601 DIODE,TVS
0DZPH00038A 0DZPH00038A DIODE,ZENER
0DZPH00048A 0DZPH00048A DIODE,ZENER
0DZPH00088A 0DZPH00088A DIODE,ZENER
EAH39305801 EAH39305801 DIODE,ZENER
EAH43050901 EAH43050901 DIODE,ZENER
0TRRH80042A 0TRRH80042A FET
EAM42641607 EAM42641607 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM60887204 EAM60887204 FILTER,BEAD
EAM61090601 EAM61090601 FILTER,BEAD
EAM62155401 EAM62155401 FILTER,BEAD
EAM62634201 EAM62634201 FILTER,LINE NOISE
ADV74469402 ADV74469402 FRAME ASSEMBLY
EBR76705201 EBR76705201 FRONT DISPLAY PCB
EAF61631901 EAF61631901 FUSE,NON TIME DELAY
MDS63870401 MDS63870401 GASKET
EAD33638822 EAD33638822 HARNESS,SINGLE
MEG63260301 MEG63260301 HOLDER
EAN38256201 EAN38256201 IC,ANALOG SWITCH
EAN62395902 EAN62395902 IC,AUDIO AMPLIFIER
EAN57771001 EAN57771001 IC,DC,DC CONVERTER
EAN61832901 EAN61832901 IC,DC,DC CONVERTER
EAN61969901 EAN61969901 IC,DC,DC CONVERTER
EAN61829003 EAN61829003 IC,DDR3 SDRAM
EAN61829203 EAN61829203 IC,DDR3 SDRAM
EAN61859501 EAN61859501 IC,DDR3 SDRAM
EAN61859702 EAN61859702 IC,DDR3 SDRAM
EAN61508101 EAN61508101 IC,DISPLAY DRIVER
EAN57037601 EAN57037601 IC,EEPROM
EAN57065701 EAN57065701 IC,I/O SUPPORT CHIP
EAN62352301 EAN62352301 IC,I/O SUPPORT CHIP
EAN61866701 EAN61866701 IC,LDO VOLTAGE REGULATOR
EAN62580901 EAN62580901 IC,SOUND/AUDIO PROCESSOR
EAN62230602 EAN62230602 IC,VIDEO PROCESSORS
EAN38061301 EAN38061301 IC,VOLTAGE DETECTOR
EAP61827601 EAP61827601 INDUCTOR,WIRE WOUND,CHIP
EAP62267601 EAP62267601 INDUCTOR,WIRE WOUND,CHIP
EAP62286201 EAP62286201 INDUCTOR,WIRE WOUND,CHIP
EAG63410102 EAG63410102 JACK,DC POWER
EAG37842006 EAG37842006 JACK,FIBER OPTIC
EAG32089104 EAG32089104 JACK,MODULAR
EAV60793101 EAV60793101 LED,CHIP
EBR76568003 EBR76568003 MAIN BOARD PCB
EAT61613101 EAT61613101 MODULE,ASSEMBLY
EAD63345601 EAD63345601 OPTICAL CABLE
MFZ62114347 MFZ62114347 PACKING
MFZ63549201 MFZ63549201 PACKING
EBR76792905 EBR76792905 PCB ASSEMBLY,SUB
EBR76792906 EBR76792906 PCB ASSEMBLY,SUB
EAV61333201 EAV61333201 RECEIVER MODULE
AKB73775701 AKB73775701 REMOTE CONTROLLER ASSEMBLY
0RH0000C622 0RH0000C622 RESISTOR,CHIP
0RH0000D622 0RH0000D622 RESISTOR,CHIP
0RH0331D622 0RH0331D622 RESISTOR,CHIP
0RH0471D622 0RH0471D622 RESISTOR,CHIP
0RH1000C622 0RH1000C622 RESISTOR,CHIP
0RH1000D622 0RH1000D622 RESISTOR,CHIP
0RH1003D622 0RH1003D622 RESISTOR,CHIP
0RH1802C422 0RH1802C422 RESISTOR,CHIP
0RH2202D622 0RH2202D622 RESISTOR,CHIP
0RH2203C622 0RH2203C622 RESISTOR,CHIP
0RH3300D622 0RH3300D622 RESISTOR,CHIP
0RH3303D622 0RH3303D622 RESISTOR,CHIP
0RH4702C622 0RH4702C622 RESISTOR,CHIP
0RH5602D622 0RH5602D622 RESISTOR,CHIP
0RH8202B622 0RH8202B622 RESISTOR,CHIP
0RH8202D622 0RH8202D622 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1004C678 0RJ1004C678 RESISTOR,CHIP
0RJ1200C678 0RJ1200C678 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1203C678 0RJ1203C678 RESISTOR,CHIP
0RJ1302C478 0RJ1302C478 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ2001C478 0RJ2001C478 RESISTOR,CHIP
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2402C478 0RJ2402C478 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ2702C678 0RJ2702C678 RESISTOR,CHIP
0RJ3001C478 0RJ3001C478 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ3901C478 0RJ3901C478 RESISTOR,CHIP
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ5600C678 0RJ5600C678 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ6802C678 0RJ6802C678 RESISTOR,CHIP
0RJ9100C478 0RJ9100C478 RESISTOR,CHIP
EBC38990201 EBC38990201 RESISTOR,CHIP
EBC40092901 EBC40092901 RESISTOR,CHIP
SAA35932205 SAA35932205 S/W,SYSTEM PROGRAM
SAA36297301 SAA36297301 S/W,SYSTEM PROGRAM
SAA36372401 SAA36372401 S/W,SYSTEM PROGRAM
SAA36399201 SAA36399201 S/W,SYSTEM PROGRAM
1SZZR-0097D 1SZZR-0097D SCREW,CUSTOMIZED
1SZZR-0098D 1SZZR-0098D SCREW,CUSTOMIZED
1SZZR-0098G 1SZZR-0098G SCREW,CUSTOMIZED
TCG35409001 TCG35409001 SUBWOOFER SPEAKER - COMPLETE
SAC35713701 SAC35713701 TITLE
0TR103009AC 0TR103009AC TR,BIPOLAR
0TR103009AM 0TR103009AM TR,BIPOLAR
0TR150409AB 0TR150409AB TR,BIPOLAR
EBK36400001 EBK36400001 TR,BIPOLAR
EBJ61651201 EBJ61651201 TRANSFORMER,SWITCHING
EAB62870201 EAB62870201 TWEETER SPEAKER (SOUNDBAR)
EAJ60868406 EAJ60868406 VFD
AAA74310301 AAA74310301 WALL BRACKET

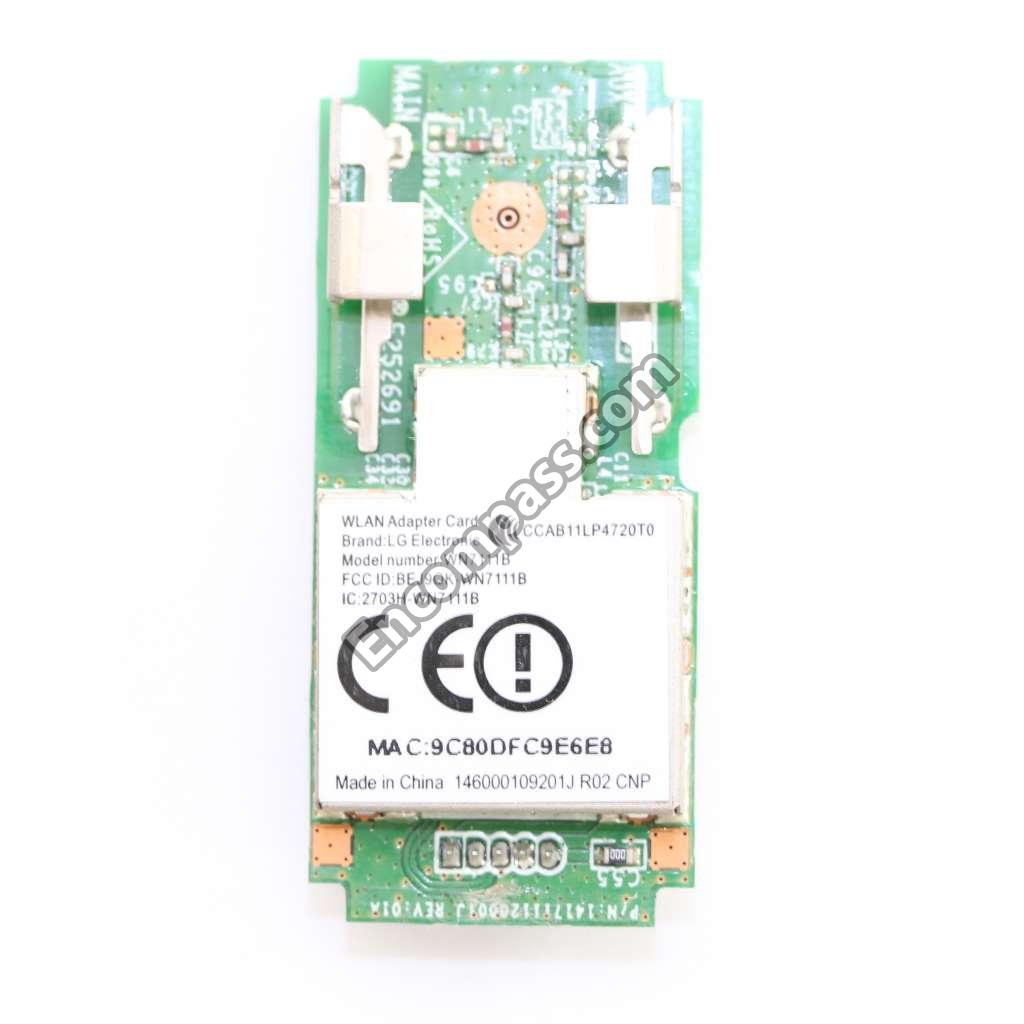

EAT61653601 EAT61653601 WIRELESS MODULE PCB
EAB62851801 EAB62851801 WOOFER SPEAKER (SOUNDBAR)
