Model Image
Manufacturer

LG

Model Number

OLED55C6PU

Description

55-inch 4k Ultra Hd Smart Oled Tv

Interactive Exploded View

Parts List

Part Number Description

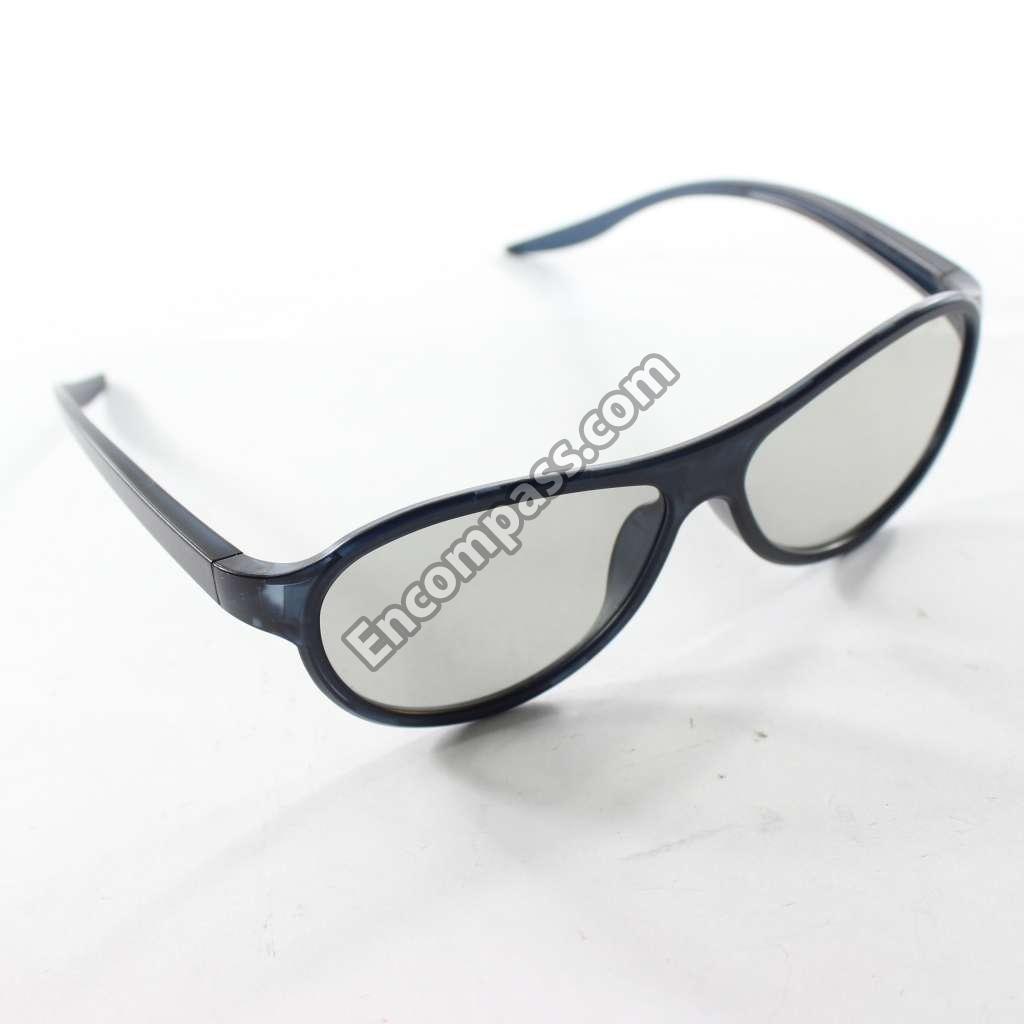

EBX61668505 EBX61668505 ACCESSORY,3D GLASSES
MAZ65150404 MAZ65150404 BRACKET
MAZ65113205 MAZ65113205 BRACKET
MAZ65113102 MAZ65113102 BRACKET
MAZ64550805 MAZ64550805 BRACKET
EAW62583503 EAW62583503 CRYSTAL
EAW61645502 EAW61645502 CRYSTAL
EAW58239602 EAW58239602 CRYSTAL
EAN63846302 EAN63846302 DISPLAY SOC,DIGITAL TV
EAN62968002 EAN62968002 DISPLAY SOC,DIGITAL TV
EBK63231801 EBK63231801 FET
EBK63231701 EBK63231701 FET
EBK63231501 EBK63231501 FET
EBK61913702 EBK61913702 FET
EAM38769505 EAM38769505 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
MDS62110235 MDS62110235 GASKET
MDS62110215 MDS62110215 GASKET
EAN64148901 EAN64148901 IC,ANALOG SWITCH
EAN64130101 EAN64130101 IC,ANALOG SWITCH
EAN62871401 EAN62871401 IC,ANALOG SWITCH
EAN62886102 EAN62886102 IC,AUDIO AMPLIFIER
EAN64107101 EAN64107101 IC,DC,DC CONVERTER
EAN62870501 EAN62870501 IC,DC,DC CONVERTER
EAN62774701 EAN62774701 IC,DC,DC CONVERTER
EAN62653301 EAN62653301 IC,DC,DC CONVERTER
EAN64108501 EAN64108501 IC,DDR3 SDRAM
EAN64028101 EAN64028101 IC,DDR3 SDRAM
EAN62389502 EAN62389502 IC,EEPROM
EAN62219201 EAN62219201 IC,ETHERNET
EAN63492001 EAN63492001 IC,LDO VOLTAGE REGULATOR
EAN64106701 EAN64106701 IC,MCP,EMMC
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN63146601 EAN63146601 IC,SERIAL FLASH MEMORY
EAN41348201 EAN41348201 IC,TX/RX
EAN62945801 EAN62945801 IC,VOLTAGE DETECTOR
EAP63606905 EAP63606905 INDUCTOR,WIRE WOUND,CHIP
EAP62886505 EAP62886505 INDUCTOR,WIRE WOUND,CHIP
EAP62506407 EAP62506407 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
MEV65833901 MEV65833901 INSULATOR

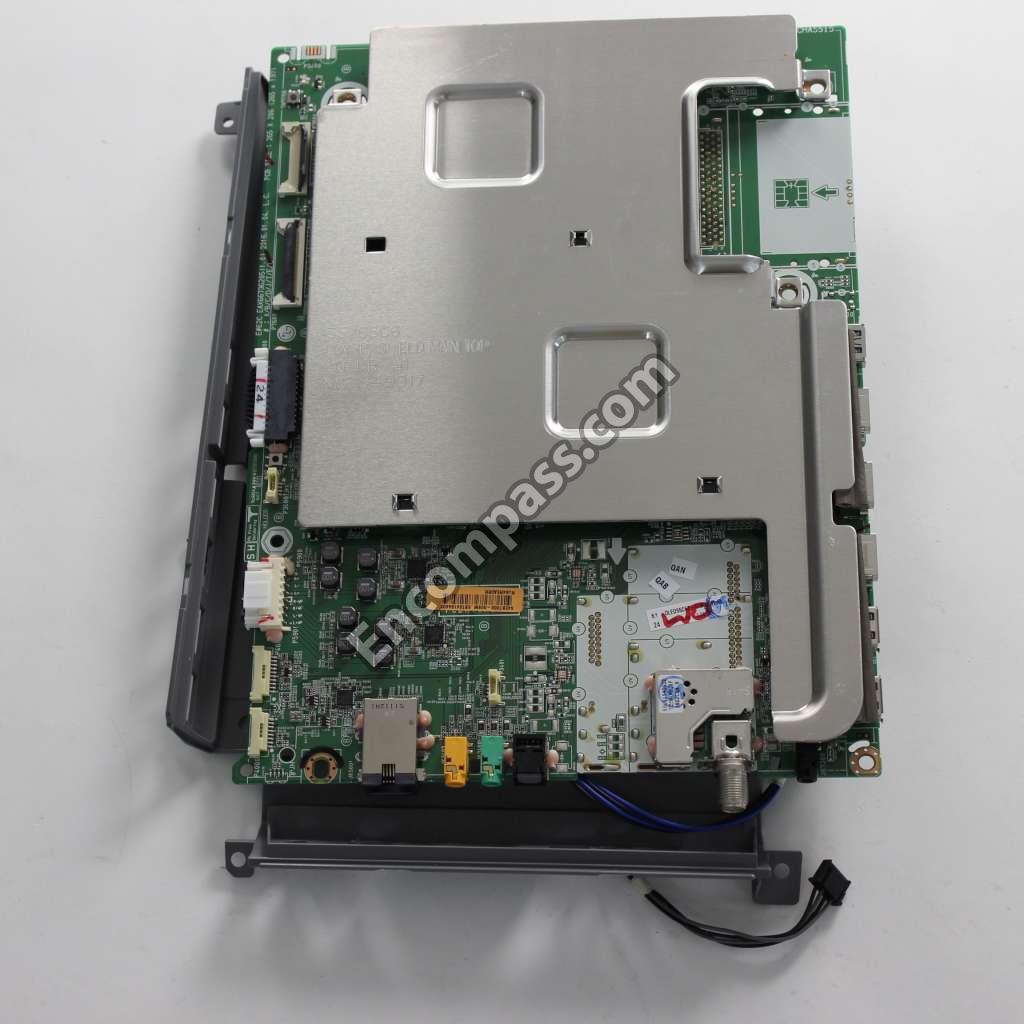

EBT64194403 EBT64194403 MAIN BOARD
EAT63153401 EAT63153401 MODULE,WLAN
EBR82055601 EBR82055601 PCB ASSEMBLY,SUB

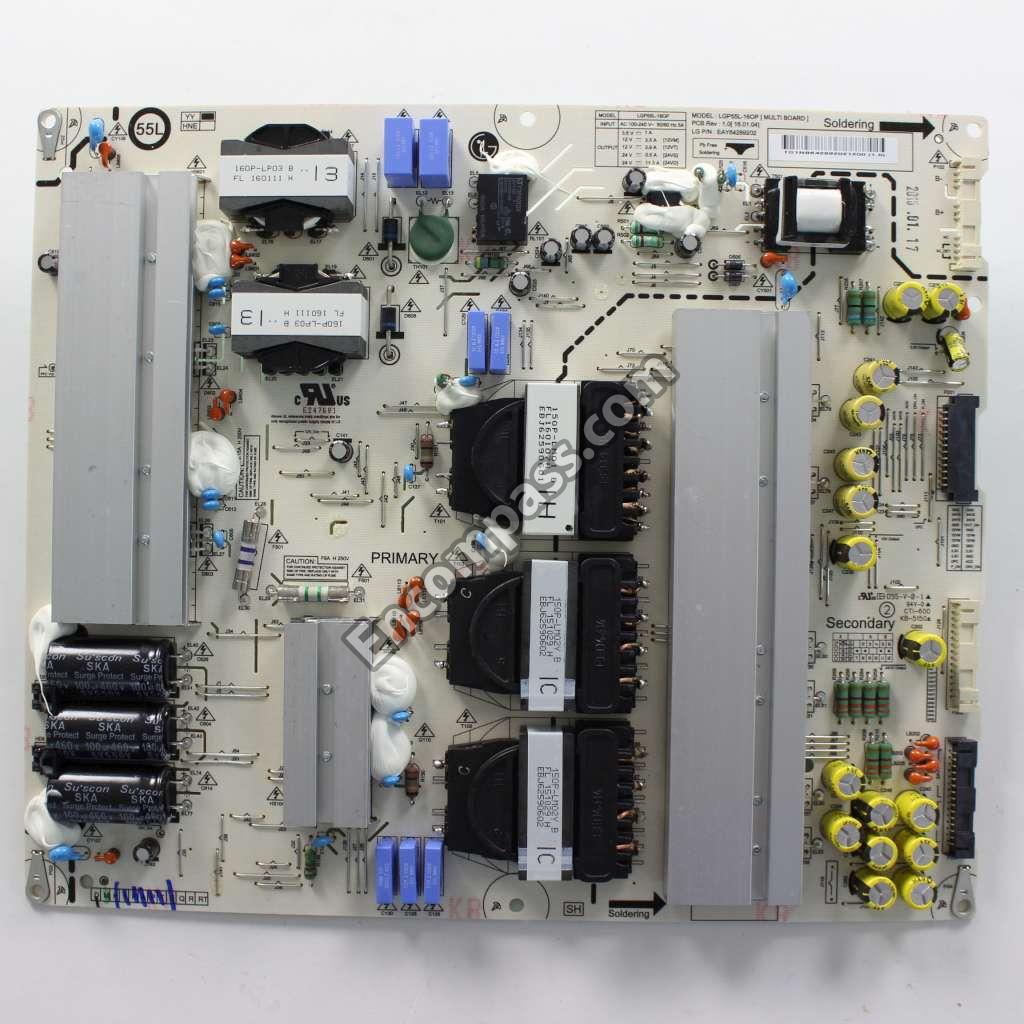

EAY64289202 EAY64289202 POWER SUPPLY BOARD

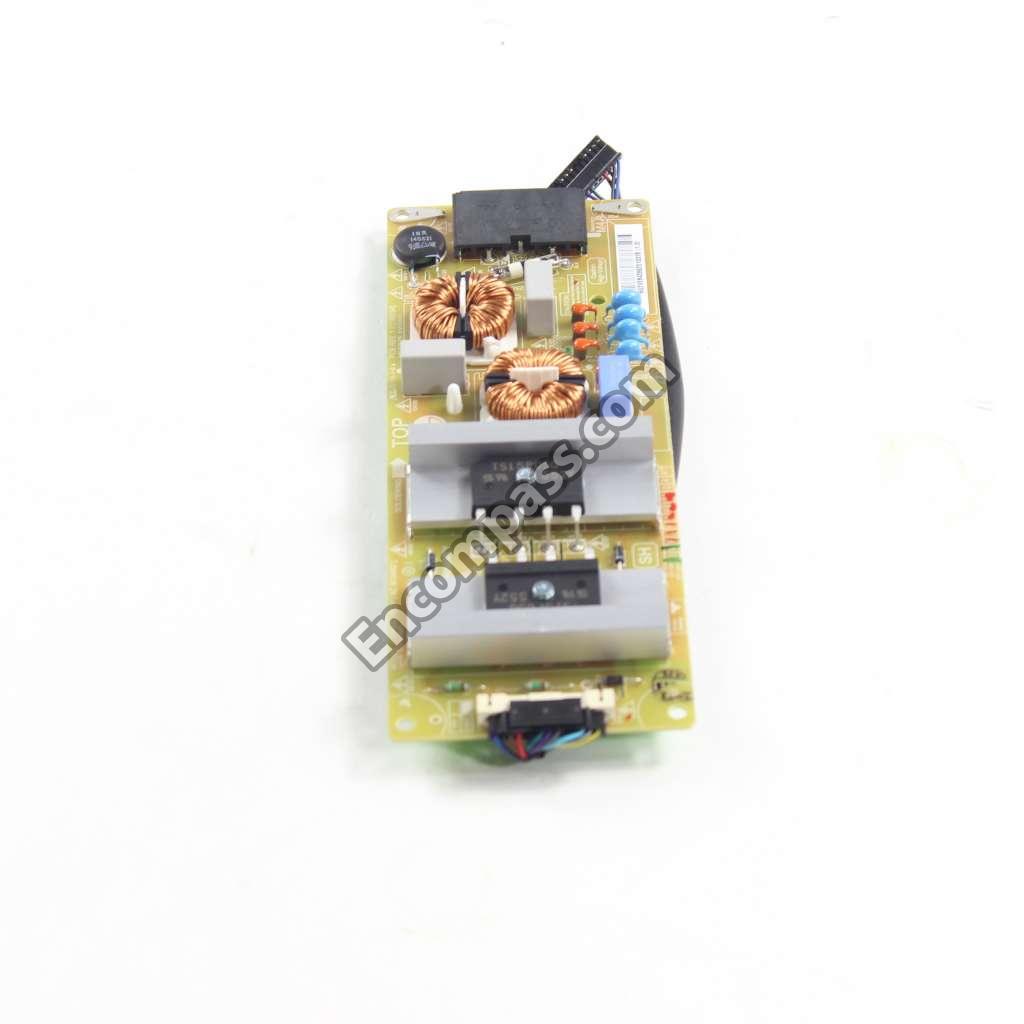

EAY64289201 EAY64289201 POWER SUPPLY BOARD
EBC62582706 EBC62582706 RESISTOR,ARRAY
EBC62582703 EBC62582703 RESISTOR,ARRAY
EBC62582702 EBC62582702 RESISTOR,ARRAY
EBC62582701 EBC62582701 RESISTOR,ARRAY
EBC32260603 EBC32260603 RESISTOR,ARRAY
EBC32260401 EBC32260401 RESISTOR,ARRAY
ERHZ0000242 ERHZ0000242 RESISTOR,CHIP
ERHY0000124 ERHY0000124 RESISTOR,CHIP
EBC62798406 EBC62798406 RESISTOR,CHIP
EBC59174901 EBC59174901 RESISTOR,CHIP
EBC42830501 EBC42830501 RESISTOR,CHIP
EBC41607701 EBC41607701 RESISTOR,CHIP
EBC30996801 EBC30996801 RESISTOR,CHIP
EBC01890805 EBC01890805 RESISTOR,CHIP
FAB30016122 FAB30016122 STAND BASE SCREW ASSEMBLY
MJH64335102 MJH64335102 SUPPORTER
MJH63757302 MJH63757302 SUPPORTER
EBK61012701 EBK61012701 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBL61540002 EBL61540002 TUNER,ANALOG/DIGITAL
EAD61273133 EAD61273133 CABLE Component G/b/r Rca To 3.5
EAD61273134 EAD61273134 Cable, Composite R/W/Y RCA to 3.5
AKB74855407 AKB74855407 REMOTE CONTROL
EAD62394903 EAD62394903 POWER CORD
AAN75329305 AAN75329305 STAND BASE
