Model Image
Manufacturer

LG

Model Number

OM7550FB

Description

1000w Bluetooth Speaker System

Interactive Exploded View

Parts List

Part Number Description
EAA56671904 EAA56671904 ANTENNA,T
EBR81524001 EBR81524001 AUTO SMT PCB ASSEMBLY,DISPLAY
EBR81544101 EBR81544101 AUTO SMT PCB ASSEMBLY,MAIN
MAM63944701 MAM63944701 BASE
MAM63924301 MAM63924301 BASE
4400R-0010A 4400R-0010A BELT
MAZ64866501 MAZ64866501 BRACKET
MAZ64866401 MAZ64866401 BRACKET
MAZ64846301 MAZ64846301 BRACKET
EAD62056809 EAD62056809 CABLE,FFC
EAD62056808 EAD62056808 CABLE,FFC
EAD62056610 EAD62056610 CABLE,FFC
EAD62037906 EAD62037906 CABLE,FFC
EAE60659001 EAE60659001 CAPACITOR,AL,CHIP
EAE60658901 EAE60658901 CAPACITOR,AL,CHIP
EAE60658801 EAE60658801 CAPACITOR,AL,CHIP
EAE30174501 EAE30174501 CAPACITOR,AL,CHIP
EAE63162001 EAE63162001 CAPACITOR,AL,RADIAL
EAE62784911 EAE62784911 CAPACITOR,AL,RADIAL
EAE60800601 EAE60800601 CAPACITOR,AL,RADIAL
EAE42721810 EAE42721810 CAPACITOR,AL,RADIAL
624-085D 624-085D CAPACITOR,AL,RADIAL
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE39487601 EAE39487601 CAPACITOR,CERAMIC,CHIP
EAE37475001 EAE37475001 CAPACITOR,CERAMIC,CHIP
EAE36194101 EAE36194101 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
EAE42618801 EAE42618801 CAPACITOR,CERAMIC,RADIAL
0CG1020U630 0CG1020U630 CAPACITOR,CERAMIC,RADIAL
624-087J 624-087J CAPACITOR,CERAMIC,RADIAL
624-087H 624-087H CAPACITOR,CERAMIC,RADIAL
624-087G 624-087G CAPACITOR,CERAMIC,RADIAL
624-087B 624-087B CAPACITOR,CERAMIC,RADIAL
EAE63090003 EAE63090003 CAPACITOR,FILM,BOX
EAE62962601 EAE62962601 CAPACITOR,FILM,BOX
EAE62887602 EAE62887602 CAPACITOR,FILM,BOX
EAE62561701 EAE62561701 CAPACITOR,FILM,BOX
EAE50550201 EAE50550201 CAPACITOR,FILM,DIP
MBS63365701 MBS63365701 CHASSIS
MBU62365501 MBU62365501 CLAMP
ACA73149601 ACA73149601 CLAMP ASSEMBLY
EAP62308301 EAP62308301 COIL,CHOKE
EAP62268101 EAP62268101 COIL,CHOKE
6140RCC003H 6140RCC003H COIL,RF
EAG63390002 EAG63390002 CONNECTOR,BTOB
6630VL01006 6630VL01006 CONNECTOR,BTOB
6630XF00433 6630XF00433 CONNECTOR,FFC/FPC/PIC
6630XE00123 6630XE00123 CONNECTOR,FFC/FPC/PIC
6630XE00110 6630XE00110 CONNECTOR,FFC/FPC/PIC
6630R-FB02D 6630R-FB02D CONNECTOR,FFC/FPC/PIC
EAG43134801 EAG43134801 CONNECTOR,USB
EAG63270202 EAG63270202 CONNECTOR,WAFER
EAG58732906 EAG58732906 CONNECTOR,WAFER
EAG58732905 EAG58732905 CONNECTOR,WAFER
EAG58732902 EAG58732902 CONNECTOR,WAFER
6630VM015A2 6630VM015A2 CONNECTOR,WAFER
6630VK20704 6630VK20704 CONNECTOR,WAFER
6630R3S006E 6630R3S006E CONNECTOR,WAFER
6602V39002C 6602V39002C CONNECTOR,WAFER
6602T25008P 6602T25008P CONNECTOR,WAFER
6602T20009J 6602T20009J CONNECTOR,WAFER
6602T20009C 6602T20009C CONNECTOR,WAFER
561-292B 561-292B CONNECTOR,WAFER
MCK68806502 MCK68806502 COVER
MCK68806402 MCK68806402 COVER
MCK68788201 MCK68788201 COVER
MCK68788101 MCK68788101 COVER
MCK68768501 MCK68768501 COVER
MCK68768401 MCK68768401 COVER
MCK67310501 MCK67310501 COVER
ACQ88061301 ACQ88061301 COVER ASSEMBLY
EAW62583505 EAW62583505 CRYSTAL
EAW62583502 EAW62583502 CRYSTAL
EAW30067102 EAW30067102 CRYSTAL
6212AB2884A 6212AB2884A CRYSTAL
MCQ68667216 MCQ68667216 DAMPER
MCQ68667212 MCQ68667212 DAMPER
MCQ68667211 MCQ68667211 DAMPER
MCQ68667209 MCQ68667209 DAMPER
MCQ68386801 MCQ68386801 DAMPER
MCQ67348911 MCQ67348911 DAMPER
EAH61933801 EAH61933801 DIODE,BRIDGE
EAH62273601 EAH62273601 DIODE,RECTIFIER
EAH61714201 EAH61714201 DIODE,RECTIFIER
EAH61655101 EAH61655101 DIODE,RECTIFIER
EAH61655001 EAH61655001 DIODE,RECTIFIER
EAH61436301 EAH61436301 DIODE,RECTIFIER
EAH61253701 EAH61253701 DIODE,RECTIFIER
EAH61112901 EAH61112901 DIODE,RECTIFIER
EAH62134601 EAH62134601 DIODE,SCHOTTKY
EAH62095801 EAH62095801 DIODE,SCHOTTKY
EAH61533501 EAH61533501 DIODE,SCHOTTKY
EAH60993301 EAH60993301 DIODE,SCHOTTKY
EAH31951401 EAH31951401 DIODE,SWITCHING
EAH61192501 EAH61192501 DIODE,TVS
EAH61533801 EAH61533801 DIODE,ZENER
EAH61433801 EAH61433801 DIODE,ZENER
EAH61132701 EAH61132701 DIODE,ZENER
EAH42410401 EAH42410401 DIODE,ZENER
MCV63513401 MCV63513401 DOOR
EAL60700911 EAL60700911 FAN MODULE
EBK61493601 EBK61493601 FET
EBK61492501 EBK61492501 FET
EBK61492401 EBK61492401 FET
EBK60711201 EBK60711201 FET
EAM62151101 EAM62151101 FILTER,BEAD
EAM62151001 EAM62151001 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM56488801 EAM56488801 FILTER,BEAD
EAM42641607 EAM42641607 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
EAM62092401 EAM62092401 FILTER,EMI/POWER
EAM62151601 EAM62151601 FILTER,LINE NOISE
EAM62130101 EAM62130101 FILTER,LINE NOISE
MDP62946702 MDP62946702 FOOT
ADV75545705 ADV75545705 FRAME ASSEMBLY
EAF61631901 EAF61631901 FUSE,NON TIME DELAY
MDS65452602 MDS65452602 GASKET
MDT62367501 MDT62367501 GEAR
MDT62367401 MDT62367401 GEAR
MEA62870901 MEA62870901 GUIDE
EAD63706401 EAD63706401 HARNESS,SINGLE
EAD63706202 EAD63706202 HARNESS,SINGLE
EAD63706201 EAD63706201 HARNESS,SINGLE
EAD63647701 EAD63647701 HARNESS,SINGLE
EAD63647601 EAD63647601 HARNESS,SINGLE
EAD42218212 EAD42218212 HARNESS,SINGLE
6631R-G007C 6631R-G007C HARNESS,SINGLE
MED63371402 MED63371402 HEAT SINK
MED62731204 MED62731204 HEAT SINK
MED62731203 MED62731203 HEAT SINK
MED62731202 MED62731202 HEAT SINK
MED62731201 MED62731201 HEAT SINK
MEG64459401 MEG64459401 HOLDER
MEG64459301 MEG64459301 HOLDER
586-008B 586-008B HOLDER
EAN60910101 EAN60910101 IC,A/D CONVERTER
EAN58772001 EAN58772001 IC,A/D CONVERTER
EAN62986201 EAN62986201 IC,D/A CONVERTER
EAN63530001 EAN63530001 IC,DC,DC CONVERTER
EAN57771001 EAN57771001 IC,DC,DC CONVERTER
EAN62909501 EAN62909501 IC,DIGITAL SIGNAL PROCESSORS
EAN62790501 EAN62790501 IC,DISPLAY DRIVER
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN62866301 EAN62866301 IC,LDO VOLTAGE REGULATOR
EAN62206201 EAN62206201 IC,LDO VOLTAGE REGULATOR
EAN61866701 EAN61866701 IC,LDO VOLTAGE REGULATOR
EAN60728201 EAN60728201 IC,LDO VOLTAGE REGULATOR
EAN44022001 EAN44022001 IC,LDO VOLTAGE REGULATOR
EAN62579201 EAN62579201 IC,LINE DRIVER
EAN33860001 EAN33860001 IC,MOTOR DRIVER
EAN60778301 EAN60778301 IC,POWER DRIVER
EAN62574101 EAN62574101 IC,PWM CONTROLLER
EAN61970101 EAN61970101 IC,PWM CONTROLLER
EAN61854102 EAN61854102 IC,PWM CONTROLLER
EAN63446501 EAN63446501 IC,RF AMPLIFIER
EAN62746202 EAN62746202 IC,SDRAM
EAN62580901 EAN62580901 IC,SOUND/AUDIO PROCESSOR
EAN38061301 EAN38061301 IC,VOLTAGE DETECTOR
EAN38519601 EAN38519601 IC,VOLTAGE REGULATOR
EAP63026901 EAP63026901 INDUCTOR,WIRE WOUND,CHIP
EAP61747403 EAP61747403 INDUCTOR,WIRE WOUND,CHIP
6612R-A002A 6612R-A002A JACK,PHONE
6612F00105C 6612F00105C JACK,PHONE
6612J00015N 6612J00015N JACK,RCA
MEY63653701 MEY63653701 KNOB
MEY63433701 MEY63433701 KNOB
MEY63393801 MEY63393801 KNOB
RAB33072001 RAB33072001 MAGNET,FERRITE
AFN77073213 AFN77073213 MANUAL ASSEMBLY,OWNERS
EAT62833601 EAT62833601 MODULE,BLUETOOTH
EAU62065801 EAU62065801 MOTOR,DC
4680R-E008A 4680R-E008A MOTOR,DC
AGL75154903 AGL75154903 PANEL ASSEMBLY,FRONT
MGC64119903 MGC64119903 PANEL,REAR
EBR81316101 EBR81316101 PCB ASSEMBLY
EBR81296401 EBR81296401 PCB ASSEMBLY
EBR80792401 EBR80792401 PCB ASSEMBLY,DECK
EBR80766001 EBR80766001 PCB ASSEMBLY,POWER
EAV61473101 EAV61473101 PHOTO,COUPLER
EAV59176001 EAV59176001 PHOTO,COUPLER
EAZ60673606 EAZ60673606 PICK UP ASSEMBLY
MGJ63182401 MGJ63182401 PLATE
EAD63505502 EAD63505502 POWER CORD
534-008C 534-008C PRIMARY CELL BATTERY,CARBON ZINC
4560R-1016A 4560R-1016A PULLEY
4560H-1005A 4560H-1005A PULLEY
AKB73655781 AKB73655781 REMOTE CONTROLLER ASSEMBLY
0RR0222T621 0RR0222T621 RESISTOR,ARRAY
EBC42756301 EBC42756301 RESISTOR,CEMENT
EBC62736001 EBC62736001 RESISTOR,CHIP
EBC62460701 EBC62460701 RESISTOR,CHIP
EBC38126501 EBC38126501 RESISTOR,CHIP
EBC38126101 EBC38126101 RESISTOR,CHIP
0RJ8202C478 0RJ8202C478 RESISTOR,CHIP
0RJ8201C678 0RJ8201C678 RESISTOR,CHIP
0RJ4704C678 0RJ4704C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
EBC31729501 EBC31729501 RESISTOR,METAL OXIDE FILM
0RS5602K619 0RS5602K619 RESISTOR,METAL OXIDE FILM
0RS1500J619 0RS1500J619 RESISTOR,METAL OXIDE FILM
0RS0470K619 0RS0470K619 RESISTOR,METAL OXIDE FILM
SAA37962601 SAA37962601 S/W,SYSTEM PROGRAM
SAA37962501 SAA37962501 S/W,SYSTEM PROGRAM
SAA37962401 SAA37962401 S/W,SYSTEM PROGRAM
FAB30840502 FAB30840502 SCREW,CUSTOMIZED
353M025Z 353M025Z SCREW,CUSTOMIZED
353-100AAAD 353-100AAAD SCREW,CUSTOMIZED
1SZZR-0098M 1SZZR-0098M SCREW,CUSTOMIZED
1SZZR-0098J 1SZZR-0098J SCREW,CUSTOMIZED
1SZZH-1007B 1SZZH-1007B SCREW,CUSTOMIZED
MHK65285901 MHK65285901 SHEET
MHK63748901 MHK63748901 SHEET
TCG36368001 TCG36368001 SPEAKER SYSTEM TOTAL
4970R-0146D 4970R-0146D SPRING
6600KW3004G 6600KW3004G SWITCH,DETECTOR
EBF61954401 EBF61954401 SWITCH,ENCODER
EBF61915401 EBF61915401 SWITCH,ENCODER
6600KW3004C 6600KW3004C SWITCH,MICRO
EBF40098801 EBF40098801 SWITCH,TACT
6600R00004A 6600R00004A SWITCH,TACT
EBG61545702 EBG61545702 THERMISTOR,NTC
EBG61545701 EBG61545701 THERMISTOR,NTC
EBG61206101 EBG61206101 THERMISTOR,PTC
EBK61231501 EBK61231501 TR,BIPOLAR
EBK61012701 EBK61012701 TR,BIPOLAR
EBK36400001 EBK36400001 TR,BIPOLAR
0TRKE90013A 0TRKE90013A TR,BIPOLAR
0TRKE80040A 0TRKE80040A TR,BIPOLAR
0TRAU80040A 0TRAU80040A TR,BIPOLAR
0TR534409AA 0TR534409AA TR,BIPOLAR
0TR387509AC 0TR387509AC TR,BIPOLAR
0TR222209IB 0TR222209IB TR,BIPOLAR
0TR186209AB 0TR186209AB TR,BIPOLAR
0TR103009AM 0TR103009AM TR,BIPOLAR
0TR103009AC 0TR103009AC TR,BIPOLAR
0TR103009AA 0TR103009AA TR,BIPOLAR
EBJ62710201 EBJ62710201 TRANSFORMER,SWITCHING
EBJ62650401 EBJ62650401 TRANSFORMER,SWITCHING
EBJ61630404 EBJ61630404 TRANSFORMER,SWITCHING
EBJ61630402 EBJ61630402 TRANSFORMER,SWITCHING
MJS62532202 MJS62532202 TRAY
MJS62532201 MJS62532201 TRAY

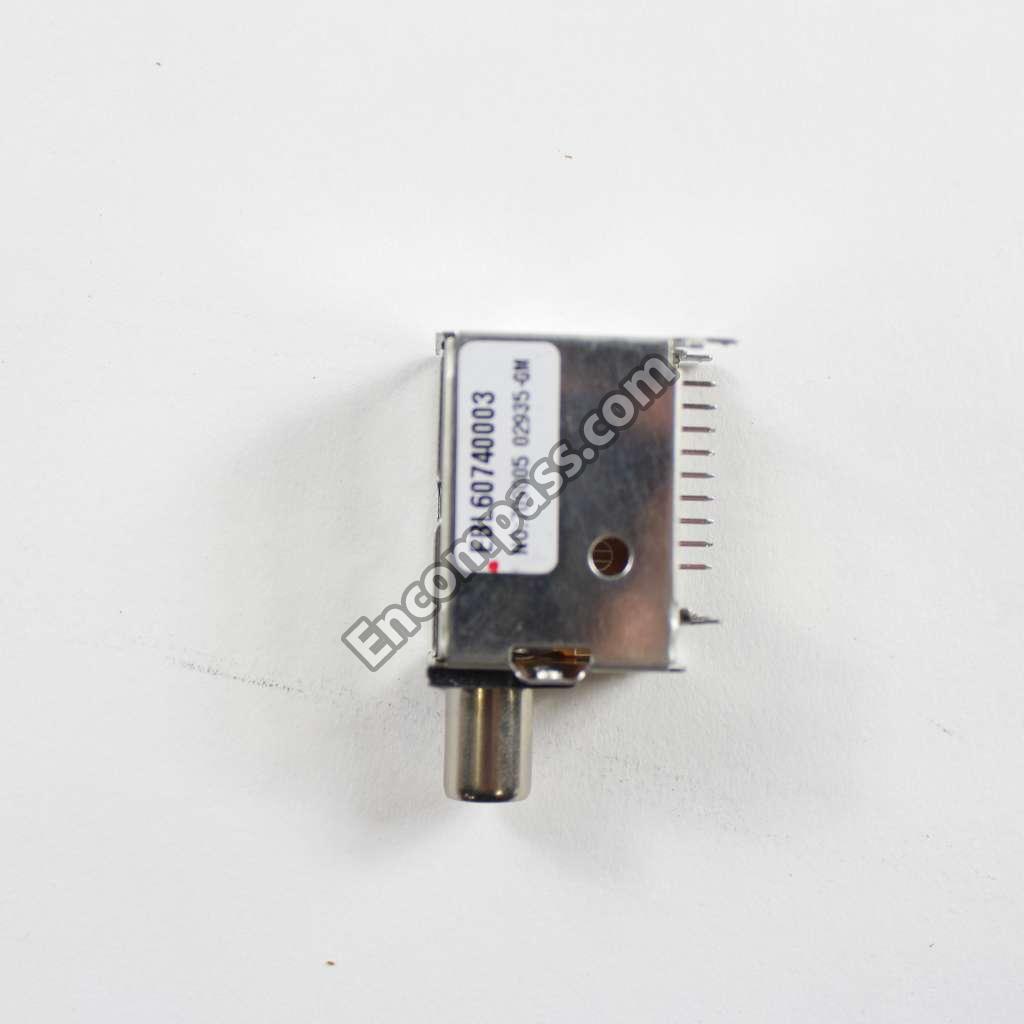

EBL60740003 EBL60740003 TUNER,ANALOG
EAF43134201 EAF43134201 VARISTOR
EAJ60868405 EAJ60868405 VFD
