Model Image
Manufacturer

LG

Model Number

S5MSB

Description

Lg Studio Styler - Refresh Garments In Minutes Wit

Interactive Exploded View

Parts List

Part Number Description
AAA77728629 AAA77728629 ACCESSORY ASSEMBLY
AAA76464401 AAA76464401 ACCESSORY ASSEMBLY
AAA77728620 AAA77728620 ACCESSORY ASSEMBLY
AAA77190902 AAA77190902 ACCESSORY ASSEMBLY
AGM73611313 AGM73611313 AROMA SHEET,PARTS ASSEMBLY,SVC
AGM73611312 AGM73611312 AROMA SHEET,PARTS ASSEMBLY,SVC
AGM73611301 AGM73611301 AROMA SHEET,PARTS ASSEMBLY,SVC
MAS61863901 MAS61863901 BELT,POLY V
CLS30860013 CLS30860013 BOX ASSEMBLY,LOCAL SOURCING PARTS
ABA73968811 ABA73968811 BRACKET ASSEMBLY
MAZ64264101 MAZ64264101 BRACKET,HINGE
4830ER4002A 4830ER4002A BUSH
ABJ73588325 ABJ73588325 CABINET ASSEMBLY
ABJ73588225 ABJ73588225 CABINET ASSEMBLY
MBL67477005 MBL67477005 CAP,COVER
MBL65997101 MBL65997101 CAP,COVER
MBL68680902 MBL68680902 CAP,COVER
MBL67457305 MBL67457305 CAP,COVER
MBL68680802 MBL68680802 CAP,COVER
MBL68680702 MBL68680702 CAP,COVER
MBL68680602 MBL68680602 CAP,COVER
MBL65997001 MBL65997001 CAP,COVER
MBL65478502 MBL65478502 CAP,SCREW
MBL64820202 MBL64820202 CAP,SCREW
ABQ74860801 ABQ74860801 CASE ASSEMBLY
5215EA4001D 5215EA4001D CLAMP
4861FR3068T 4861FR3068T CLAMP
4861FR3068A 4861FR3068A CLAMP
4861FR3068P 4861FR3068P CLAMP
TCA37511303 TCA37511303 COMPRESSOR,SET ASSEMBLY
ACG73125305 ACG73125305 CONDENSER ASSEMBLY
ACJ74430102 ACJ74430102 CONNECTOR ASSEMBLY
MCD61843101 MCD61843101 CONNECTOR,HOSE
MCD61843001 MCD61843001 CONNECTOR,NOZZLE
EBR83227501 EBR83227501 CONTROL BOARD,WIFI
EBR83227508 EBR83227508 CONTROL BOARD,WIFI
ACQ86034002 ACQ86034002 COVER ASSEMBLY,REAR
ACQ87472601 ACQ87472601 COVER ASSEMBLY,REAR
MCK68026002 MCK68026002 COVER,GUIDE
MCK71372801 MCK71372801 COVER,GUIDE
MCK62185601 MCK62185601 COVER,LAMP
MCK66807103 MCK66807103 COVER,LOWER
MCK68069801 MCK68069801 COVER,LOWER
MCK66807102 MCK66807102 COVER,LOWER
MCK68007401 MCK68007401 COVER,LOWER
MCK69277301 MCK69277301 COVER,PROTECT
MCK67986601 MCK67986601 COVER,PROTECT
MCK67986701 MCK67986701 COVER,PROTECT
MCK66927802 MCK66927802 COVER,REAR
3550ER2010G 3550ER2010G COVER,SAFETY
MCK66927901 MCK66927901 COVER,TOP
MCK68007501 MCK68007501 COVER,TOP
ACT76598436 ACT76598436 CYCLE ASSEMBLY
ACT74354655 ACT74354655 CYCLE ASSEMBLY
ACT74354685 ACT74354685 CYCLE ASSEMBLY
4766EA3001L 4766EA3001L DAMPER
MCQ68026101 MCQ68026101 DAMPER
3940EA3001U 3940EA3001U DAMPER
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
MCR65387515 MCR65387515 DECOR,DOOR
MCR62353101 MCR62353101 DECOR,GUARD
MCR62466701 MCR62466701 DECOR,SIDE
EBR85064948 EBR85064948 DISPLAY CONTROL BOARD
ADC76845902 ADC76845902 DOOR ASSEMBLY
ADC75685502 ADC75685502 DOOR ASSEMBLY
AGM30065508 AGM30065508 DOOR,PARTS ASSEMBLY,SVC
AGM30070901 AGM30070901 DUCT ASSEMBLY,PARTS ASSEMBLY,SVC
AGM30071001 AGM30071001 DUCT ASSEMBLY,PARTS ASSEMBLY,SVC
MCZ65373201 MCZ65373201 DUCT,CONNECTOR
ADL72941705 ADL72941705 EVAPORATOR ASSEMBLY
MDJ62664301 MDJ62664301 FILTER
EAM62492338 EAM62492338 FILTER ASSEMBLY

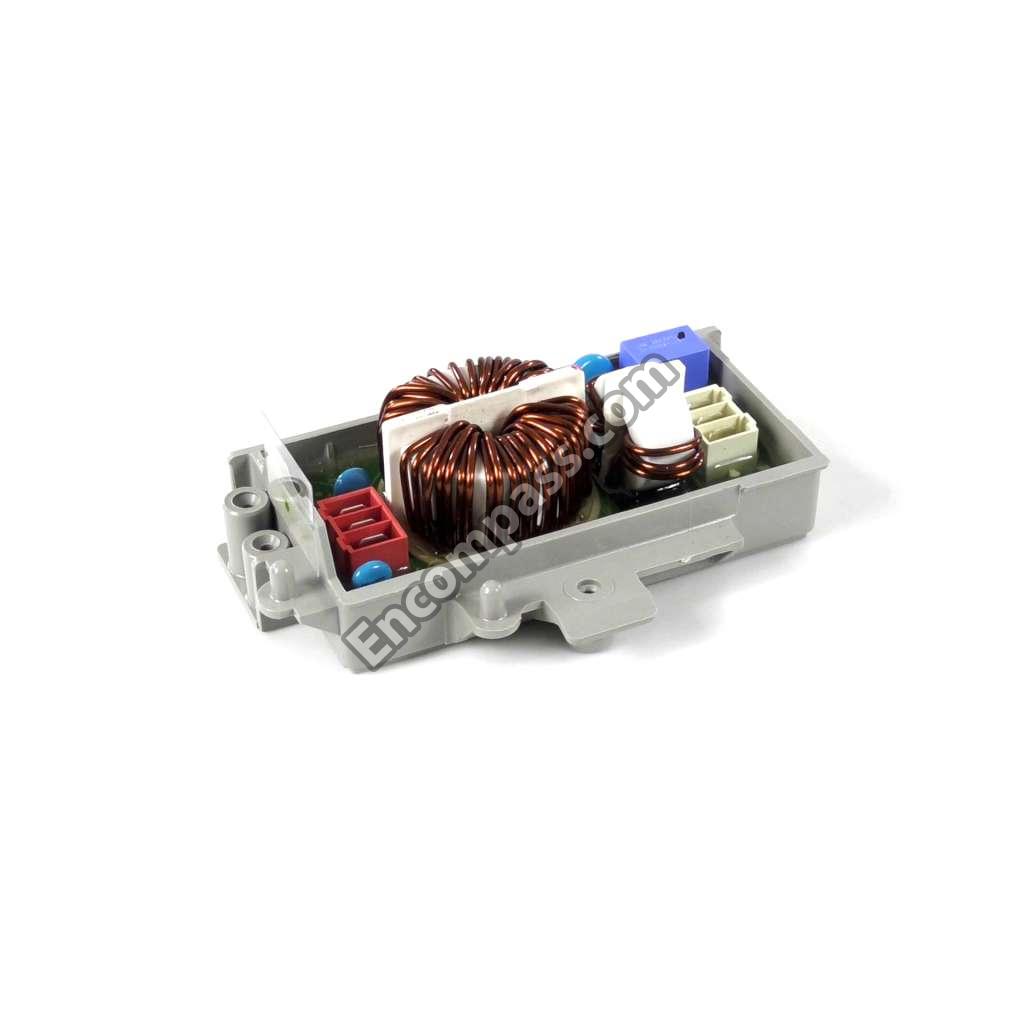

EAM62492313 EAM62492313 FILTER ASSEMBLY
ADQ72973401 ADQ72973401 FILTER ASSEMBLY,MESH
ADS73089101 ADS73089101 FLOAT ASSEMBLY
ADV75085502 ADV75085502 FRAME ASSEMBLY
ADV75085501 ADV75085501 FRAME ASSEMBLY
MDQ63776701 MDQ63776701 FRAME,BODY
MDQ63736601 MDQ63736601 FRAME,BODY
MDQ66689801 MDQ66689801 FRAME,LOWER
MDQ63776601 MDQ63776601 FRAME,LOWER
MDS64510906 MDS64510906 GASKET
MDS64510905 MDS64510905 GASKET
MDS62912135 MDS62912135 GASKET
MDS62912109 MDS62912109 GASKET
MDS62912104 MDS62912104 GASKET
MDS62912102 MDS62912102 GASKET
MDS62912101 MDS62912101 GASKET
MDS62133701 MDS62133701 GASKET
4036EA3003A 4036EA3003A GASKET
MDS62912120 MDS62912120 GASKET
MDS62912121 MDS62912121 GASKET
MDS62912114 MDS62912114 GASKET
MDS62912123 MDS62912123 GASKET
MDS62912122 MDS62912122 GASKET
MDS62912124 MDS62912124 GASKET
ADZ73350109 ADZ73350109 GENERATOR ASSEMBLY
ADZ73350106 ADZ73350106 GENERATOR ASSEMBLY
3111ER1001G 3111ER1001G GENERATOR ASSEMBLY
3111ER1001J 3111ER1001J GENERATOR ASSEMBLY
MDX65452001 MDX65452001 GRILLE
MDX64132402 MDX64132402 GRILLE
3650FA3488P 3650FA3488P HANDLE
MEB62154201 MEB62154201 HANDLE
AEE73009502 AEE73009502 HANGER ASSEMBLY
AEE73009506 AEE73009506 HANGER ASSEMBLY
AEE72909304 AEE72909304 HANGER ASSEMBLY
AEE73409402 AEE73409402 HANGER ASSEMBLY
AEE72909301 AEE72909301 HANGER ASSEMBLY
AEE73089501 AEE73089501 HANGER ASSEMBLY

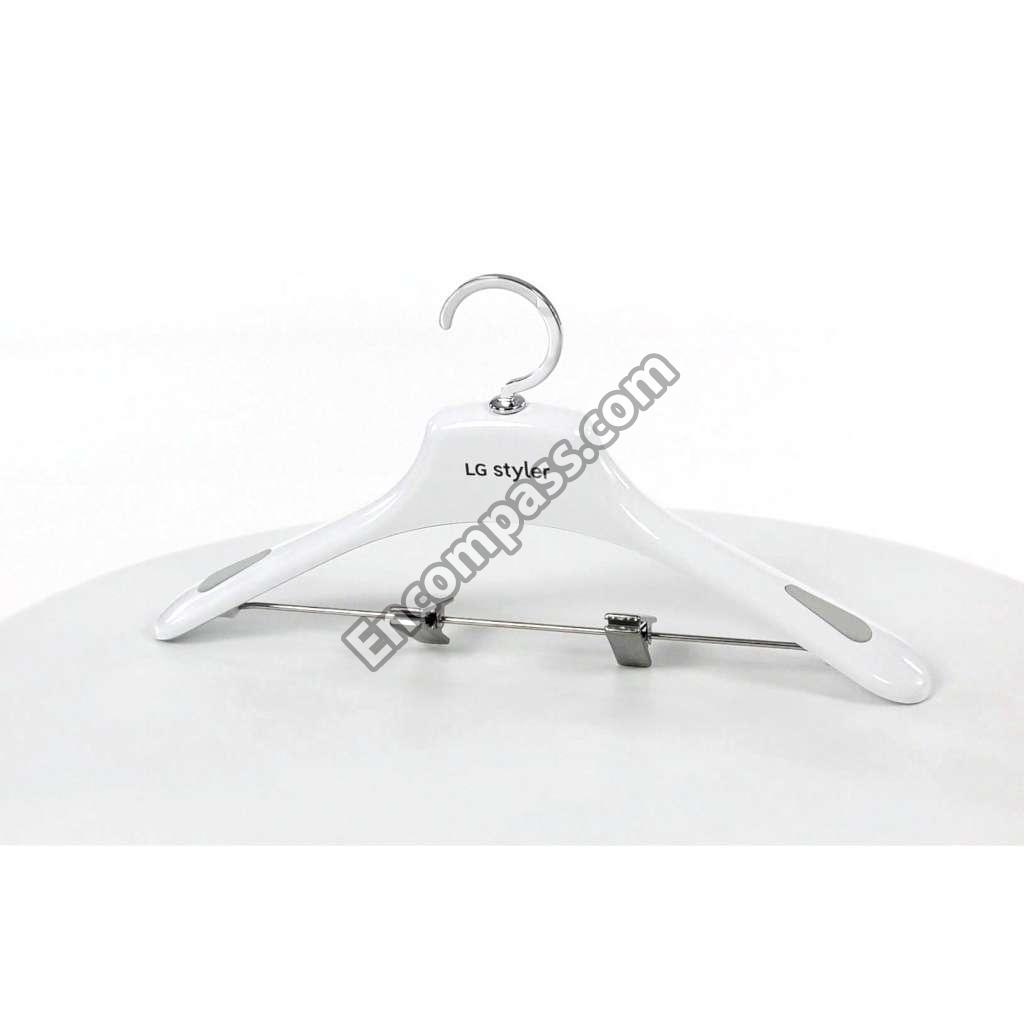

AEE73009504 AEE73009504 HANGER ASSEMBLY
EAD61028720 EAD61028720 HARNESS,MULTI
EAD61028707 EAD61028707 HARNESS,MULTI
EAD61028504 EAD61028504 HARNESS,MULTI
EAD61029003 EAD61029003 HARNESS,MULTI
EAD62468225 EAD62468225 HARNESS,SINGLE
MEF62482502 MEF62482502 HINGE
MEF62482402 MEF62482402 HINGE
AEJ33026401 AEJ33026401 HOLDER
MEG63099701 MEG63099701 HOLDER
MEG62039101 MEG62039101 HOLDER
MEG61963201 MEG61963201 HOLDER
4W40115B 4W40115B HOLDER
MEG63618902 MEG63618902 HOLDER
MEG61870601 MEG61870601 HOLDER
AEJ74219501 AEJ74219501 HOLDER ASSEMBLY
4930A20053A 4930A20053A HOLDER,SENSOR
MEJ61904920 MEJ61904920 HOSE,CONNECTOR
MEJ61904915 MEJ61904915 HOSE,CONNECTOR
MEJ61904914 MEJ61904914 HOSE,CONNECTOR
MEJ61905004 MEJ61905004 HOSE,OVERFLOW
MEJ61904811 MEJ61904811 HOSE,PUMP
MEJ61904807 MEJ61904807 HOSE,PUMP
MEJ61904808 MEJ61904808 HOSE,PUMP
MEJ61904809 MEJ61904809 HOSE,PUMP
AEN72911401 AEN72911401 HOUSING ASSEMBLY,BEARING
MEK62926601 MEK62926601 HOUSING,BLOWER
MEK62946801 MEK62946801 HOUSING,BLOWER
MER61841501 MER61841501 IMPELLER,BLOWER
EAQ60660310 EAQ60660310 LAMP,INCANDESCENT
EAQ60660301 EAQ60660301 LAMP,INCANDESCENT
EAQ60660303 EAQ60660303 LAMP,INCANDESCENT
EAQ60660307 EAQ60660307 LAMP,INCANDESCENT
MFA63122901 MFA63122901 LEG
AFC72755402 AFC72755402 LEG ASSEMBLY
MFD62041401 MFD62041401 LID,INNER
AFK73529601 AFK73529601 LOCKER ASSEMBLY
MFG63358601 MFG63358601 LOCKER,HOOK
5016EA4001B 5016EA4001B MAGNET,NDFEB
5016EA4002C 5016EA4002C MAGNET,NDFEB
EBR79528109 EBR79528109 MAIN BOARD
EBR37099901 EBR37099901 MAIN BOARD
4681ER1007E 4681ER1007E MOTOR ASSEMBLY,DC,FAN
4681ER1007A 4681ER1007A MOTOR ASSEMBLY,DC,FAN
EAU61503501 EAU61503501 MOTOR ASSEMBLY,DC,PUMP
4681ED1004D 4681ED1004D MOTOR ASSEMBLY,DC,WASHER
4681ED1004B 4681ED1004B MOTOR ASSEMBLY,DC,WASHER
AGB72910601 AGB72910601 NOZZLE ASSEMBLY
4020FA3041B 4020FA3041B NUT,COMMON
1NZZER3001A 1NZZER3001A NUT,COMMON
AGM73611305 AGM73611305 PARTS ASSEMBLY
AGM73611306 AGM73611306 PARTS ASSEMBLY
AGM73611307 AGM73611307 PARTS ASSEMBLY
383EEL9003B 383EEL9003B PARTS ASSEMBLY
MGE62212603 MGE62212603 PIPE
MGE62212604 MGE62212604 PIPE
MGE62131603 MGE62131603 PIPE
MGE62131503 MGE62131503 PIPE
MGE62131403 MGE62131403 PIPE
MGE62212601 MGE62212601 PIPE
MGE62212602 MGE62212602 PIPE
MGE62131402 MGE62131402 PIPE
MGE62131602 MGE62131602 PIPE
MGE62131502 MGE62131502 PIPE
6411ER1006V 6411ER1006V POWER CORD ASSEMBLY
MGN61841301 MGN61841301 PULLEY,IDLE
MGN61841401 MGN61841401 PULLEY,MOTOR
AGM30049401 AGM30049401 PULLEY,PARTS ASSEMBLY,SVC
AGM30079501 AGM30079501 PUMP,PARTS ASSEMBLY,SVC
4W50523A 4W50523A RING,C
4J03500A 4J03500A ROLLER
AHJ72909201 AHJ72909201 ROLLER ASSEMBLY
6501ED4001J 6501ED4001J SENSOR ASSEMBLY
AGM30049501 AGM30049501 SHAFT ASSEMBLY,PARTS ASSEMBLY,SVC
AGM30085201 AGM30085201 SHAFT,ROLLER
MHJ61847501 MHJ61847501 SHAFT,SPIN
AHT72933805 AHT72933805 SHELF ASSEMBLY
AHT72933804 AHT72933804 SHELF ASSEMBLY
MHS62482201 MHS62482201 SLIDER
4J03277A 4J03277A STOPPER,COMPRESSOR
MJH61858802 MJH61858802 SUPPORTER,HOLDER
MJH61958901 MJH61958901 SUPPORTER,HOLDER
MJH61858201 MJH61858201 SUPPORTER,HOLDER
MJH62014301 MJH62014301 SUPPORTER,HOLDER
MJH61858801 MJH61858801 SUPPORTER,HOLDER
6601EA2001B 6601EA2001B SWITCH ASSEMBLY,LID
6601EA2001T 6601EA2001T SWITCH ASSEMBLY,LID
6601EA2001M 6601EA2001M SWITCH ASSEMBLY,LID
6601EA2001W 6601EA2001W SWITCH ASSEMBLY,LID
6601EA2001N 6601EA2001N SWITCH ASSEMBLY,LID
AJL74012002 AJL74012002 TANK ASSEMBLY,WATER
AJL74011902 AJL74011902 TANK ASSEMBLY,WATER
6323ER2001D 6323ER2001D THERMISTOR ASSEMBLY
6323ER2001A 6323ER2001A THERMISTOR ASSEMBLY
EBG60806202 EBG60806202 THERMISTOR ASSEMBLY
EBG60806203 EBG60806203 THERMISTOR ASSEMBLY
AJU72910202 AJU72910202 VALVE ASSEMBLY,GAS
AJU72910001 AJU72910001 VALVE ASSEMBLY,INLET
4W50511A 4W50511A WASHER,COMMON
MKC64799302 MKC64799302 WINDOW,DISPLAY
