Model Image
Manufacturer

LG

Model Number

T1001E2J

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
FAA30850703 FAA30850703 BOLT,COMMON
MAY65797246 MAY65797246 BOX,DETERGENT
ABJ76757716 ABJ76757716 CABINET ASSEMBLY
ABN76543301 ABN76543301 CAP ASSEMBLY,PULSATOR
MBL68747101 MBL68747101 CAP,HINGE
MBL68689901 MBL68689901 CAP,SCREW
MBN66576502 MBN66576502 CASE
3W40106R 3W40106R CLAMP
MBU62225409 MBU62225409 CLAMP,HOSE
ACJ73350404 ACJ73350404 CONNECTOR ASSEMBLY
MCD62647002 MCD62647002 CONNECTOR,DRAIN HOSE
AGL76633920 AGL76633920 CONTROL PANEL
MCK71814801 MCK71814801 COVER,FRONT
MCK71861901 MCK71861901 COVER,GUIDE
MCK62185701 MCK62185701 COVER,GUIDE
MCK66959305 MCK66959305 COVER,PROTECT
MCK67652502 MCK67652502 COVER,REAR
MCK67652501 MCK67652501 COVER,REAR
MCK71780902 MCK71780902 COVER,TOP
MCK71474701 MCK71474701 COVER,TUB
5040FA4226F 5040FA4226F DAMPER
ACV73790001 ACV73790001 DAMPER ASSEMBLY,FRICTION
MCQ70897701 MCQ70897701 DAMPER,LID
EBR39935601 EBR39935601 DISPLAY CONTROL BOARD
6201EC2002V 6201EC2002V FILTER ASSEMBLY
MEA66391501 MEA66391501 GUIDE,COVER
EAD64149717 EAD64149717 HARNESS,MULTI
EAD63954760 EAD63954760 HARNESS,MULTI
EAD64545806 EAD64545806 HARNESS,SINGLE
AEH76195802 AEH76195802 HINGE ASSEMBLY
AEH76195801 AEH76195801 HINGE ASSEMBLY
MEG64858801 MEG64858801 HOLDER
4930EA3002A 4930EA3002A HOLDER
MEG64119601 MEG64119601 HOLDER
AEJ33026401 AEJ33026401 HOLDER ASSEMBLY
AEM73732920 AEM73732920 HOSE ASSEMBLY,DRAIN
5215FD3715U 5215FD3715U HOSE,INLET
5215FD3715V 5215FD3715V HOSE,INLET
MEJ62565304 MEJ62565304 HOSE,INLET
AEN75455407 AEN75455407 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN72910503 AEN72910503 HOUSING ASSEMBLY,DETERGENT
4263FA3933H 4263FA3933H LEG ASSEMBLY
MFD63003401 MFD63003401 LID,OUT
EBR39935702 EBR39935702 MAIN BOARD
EAU64283201 EAU64283201 MOTOR ASSEMBLY,DC,CLUTCH
EAU63743301 EAU63743301 MOTOR ASSEMBLY,DC,CLUTCH
AGB72932408 AGB72932408 NOZZLE ASSEMBLY
FAD33190601 FAD33190601 NUT,COMMON
4020FA4208V 4020FA4208V NUT,COMMON
4020FA4208J 4020FA4208J NUT,COMMON
MGC66443502 MGC66443502 PANEL,REAR
EAD65611404 EAD65611404 POWER CORD ASSEMBLY
AGZ73571301 AGZ73571301 PULSATOR ASSEMBLY

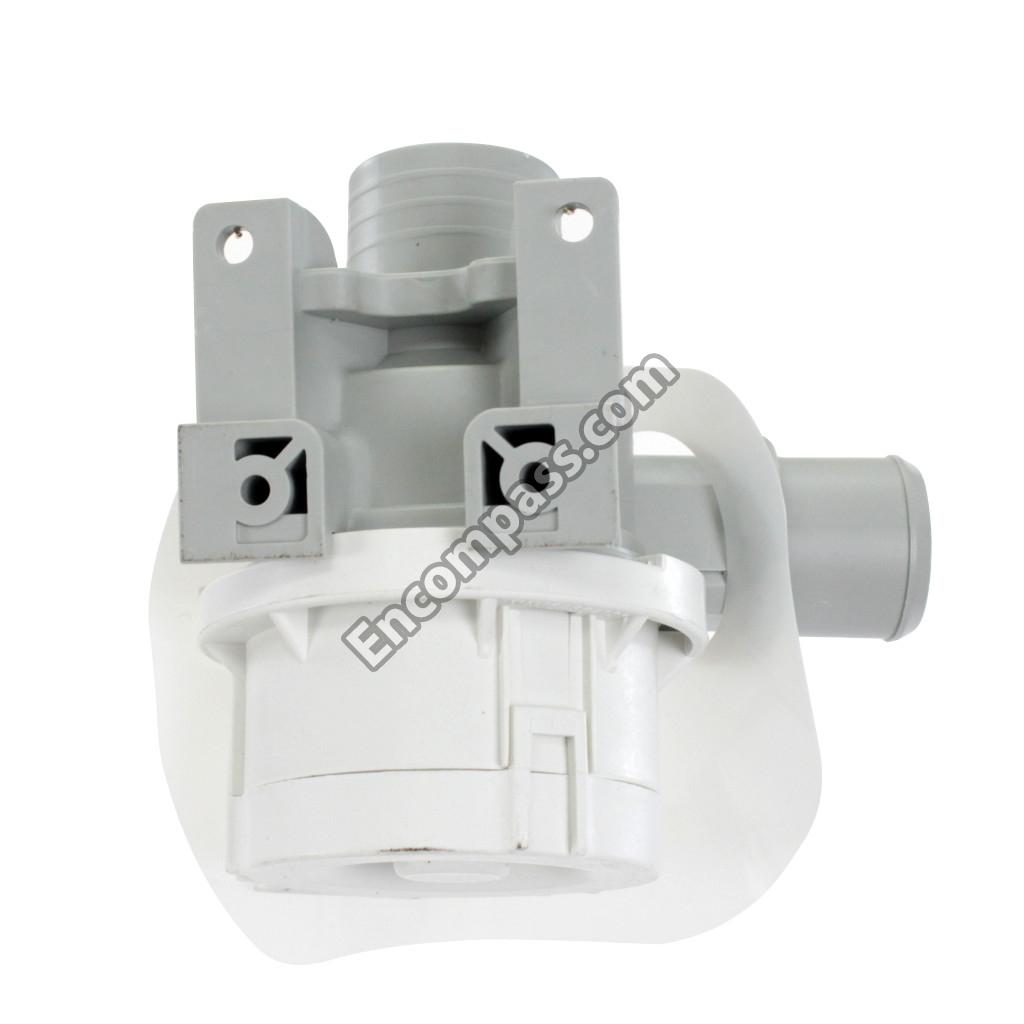

AGF30196101 AGF30196101 PUMP ASSEMBLY,DRAIN
AHL76195113 AHL76195113 ROTOR ASSEMBLY,COMBINED
FAB30598601 FAB30598601 SCREW,CUSTOMIZED
FAB33199206 FAB33199206 SCREW,CUSTOMIZED
FAB35008201 FAB35008201 SCREW,CUSTOMIZED
EBD48922824 EBD48922824 SENSOR ASSEMBLY
AJB76315028 AJB76315028 STATOR ASSEMBLY,COMBINED
MJH66405801 MJH66405801 SUPPORTER,LID
AJK73229723 AJK73229723 SUSPENSION ROD KIT ASSEMBLY
EBF61674802 EBF61674802 SWITCH ASSEMBLY
6601FA3675X 6601FA3675X SWITCH ASSEMBLY,LID
6501EA1001R 6501EA1001R SWITCH ASSEMBLY,SENSOR
AJQ75294806 AJQ75294806 TUB ASSEMBLY,INNER
AAN73431033 AAN73431033 TV STAND ASSEMBLY,CABINET
AAS73229407 AAS73229407 WASHER DOOR BELLOWS ASSEMBLY
1WZZEA4002C 1WZZEA4002C WASHER,COMMON
4040FA4045C 4040FA4045C WASHER,COMMON
FAF30369204 FAF30369204 WASHER,COMMON
5221EA1001G 5221EA1001G WATER INLET VALVE
