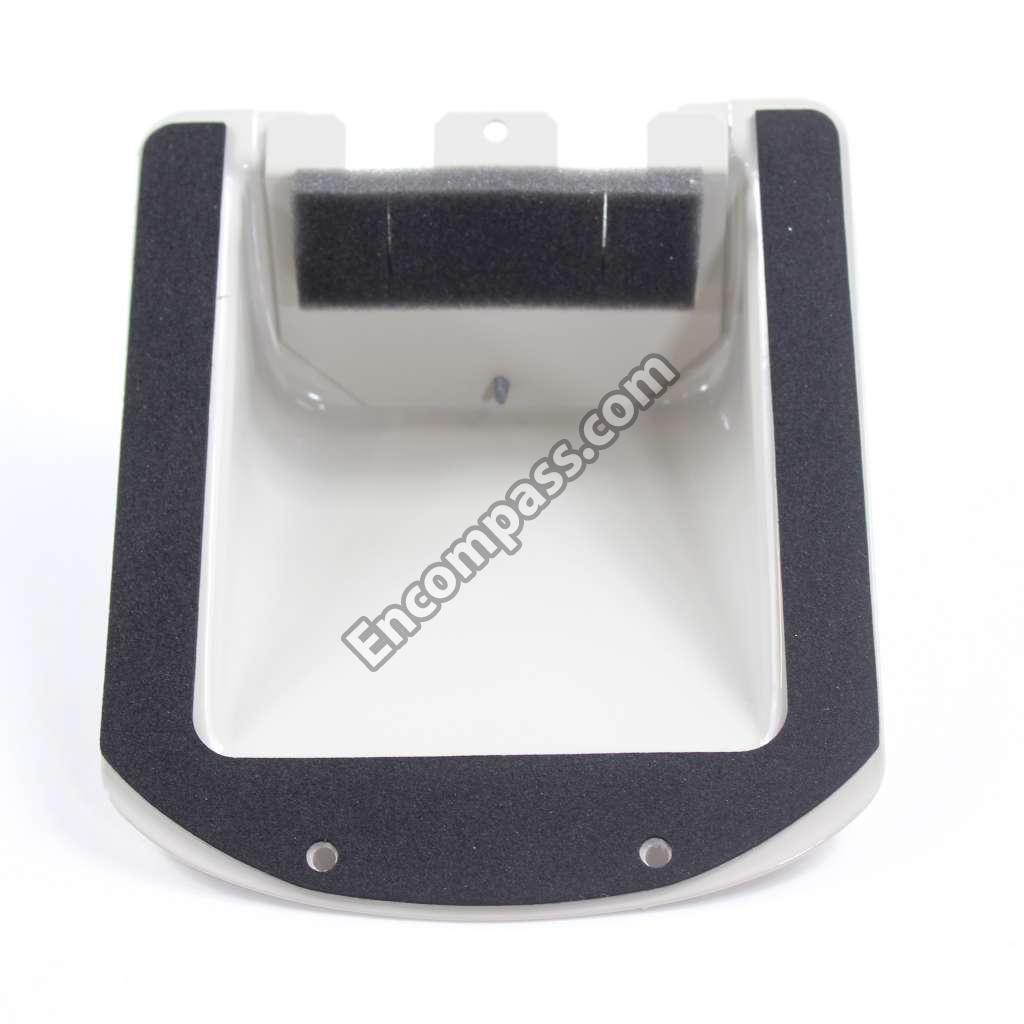

Model Image
Manufacturer

LG

Model Number

TSK1830CL

Description

Ts-k1830cl

Interactive Exploded View

Parts List

Part Number Description
2H02110S 2H02110S BARRIER ASSEMBLY,OUTDOOR
2H02110M 2H02110M BARRIER ASSEMBLY,OUTDOOR [447910]
AAN73130011 AAN73130011 BASE ASSEMBLY,OUTDOOR
AAN68932412 AAN68932412 BASE ASSEMBLY,OUTDOOR [430410]
3041A30003B 3041A30003B BASE ASSEMBLY,WELD(OUTDOOR)
3H02821B 3H02821B BEARING
ABA73010801 ABA73010801 BRACKET ASSEMBLY,MOTOR(OUTDOOR)
4960AP1361A 4960AP1361A BRACKET,MOTOR [349600]
EAE43285406 EAE43285406 CAPACITOR,FILM,BOX
EAE43285408 EAE43285408 CAPACITOR,FILM,BOX [W0CZZ]
4995A20123U 4995A20123U CASE ASSEMBLY,CONTROL(INDOOR)
4781AR1528Q 4781AR1528Q CASE ASSEMBLY,CONTROL(OUTDOOR) [649950]
3141A20002H 3141A20002H CHASSIS ASSEMBLY
2520UMGK2AA 2520UMGK2AA COMPRESSOR SET,KOREA [554160]
5403A20022B 5403A20022B CONDENSER ASSEMBLY,BENDING [554031]
4G00103A 4G00103A CONNECTOR,TERMINAL BLOCK [W6640A]
3H00390B 3H00390B CONNECTOR,TERMINAL BLOCK [W6640B]
3550AR3592P 3550AR3592P COVER
3550AR2886C 3550AR2886C COVER ASSEMBLY,CONTROL(OUTDOOR)
ACQ36712503 ACQ36712503 COVER ASSEMBLY,CONTROL(OUTDOOR) [435511]
3H03266K 3H03266K COVER ASSEMBLY,TOP(OUTDOOR)
3H03266H 3H03266H COVER ASSEMBLY,TOP(OUTDOOR) [435512]
3550U-L004A 3550U-L004A COVER,TERMINAL [135500]
4H00982E 4H00982E DAMPER,COMPRESSOR [550140]
4681AR2727M 4681AR2727M DC MOTOR
5421A20021D 5421A20021D EVAPORATOR ASSEMBLY,FINAL
5421A20020A 5421A20020A EVAPORATOR ASSEMBLY,FIRST
5901AR2441E 5901AR2441E FAN ASSEMBLY,CROSS FLOW
5901AR2441D 5901AR2441D FAN ASSEMBLY,CROSS FLOW
5901A92441E 5901A92441E FAN ASSEMBLY,CROSS FLOW
1A00195B 1A00195B FAN ASSEMBLY,PROPELLER
1A00195D 1A00195D FAN ASSEMBLY,PROPELLER [559010]
5231AR2595G 5231AR2595G FILTER ASSEMBLY,DEODORIZER

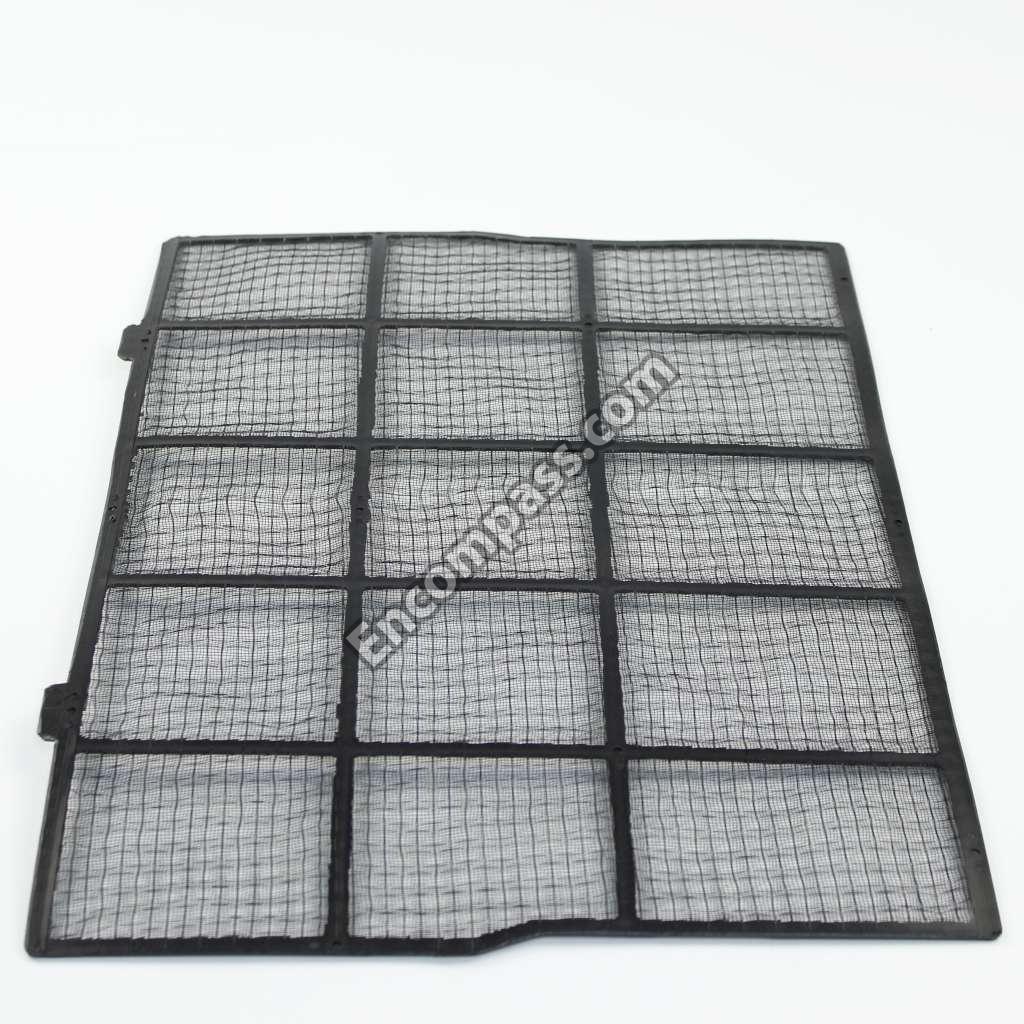

5230A20001D 5230A20001D FILTER,AIR
5230A20001A 5230A20001A FILTER,AIR
4986U-L001G 4986U-L001G GASKET [W4986]
3531A10008Q 3531A10008Q GRILLE ASSEMBLY,DISCHARGE(INDOOR)
3531A20202A 3531A20202A GRILLE ASSEMBLY,FRONT(INDOOR)
3531A20203A 3531A20203A GRILLE ASSEMBLY,INLET(SUB)
3530A20007B 3530A20007B GRILLE,DISCHARGE [435301]
4933AR3501D 4933AR3501D HARNESS,MULTI
5251AR2575A 5251AR2575A HOSE ASSEMBLY,DRAIN
4520A30001B 4520A30001B LINK
4520A30001A 4520A30001A LINK
5990A30002B 5990A30002B LOUVER,HORIZONTAL
5990A30001B 5990A30001B LOUVER,HORIZONTAL
5990A30003A 5990A30003A LOUVER,VERTICAL
5990A30004A 5990A30004A LOUVER,VERTICAL
4681AR2295J 4681AR2295J MOTOR ASSEMBLY,AC,INDOOR
4681A20013N 4681A20013N MOTOR ASSEMBLY,AC,OUTDOOR [546810]
4948AP2527A 4948AP2527A ORIFICE [349480]
6750U-L025A 6750U-L025A OVERLOAD PROTECT [567502]
3721A20005H 3721A20005H PANEL ASSEMBLY,FRONT(OUTDOOR) [437211]
3721A20004G 3721A20004G PANEL ASSEMBLY,FRONT(SUB) [237202]
AGL36636804 AGL36636804 PANEL ASSEMBLY,REAR(OUTDOOR) [437212]
6871A30009D 6871A30009D PCB ASSEMBLY,DISPLAY
6871A10035N 6871A10035N PCB ASSEMBLY,MAIN
6871A10036D 6871A10036D PCB ASSEMBLY,MAIN [268711B]
3301A10002A 3301A10002A PLATE ASSEMBLY,INSTALLATION
6920AP3400A 6920AP3400A RELAY,CONTACT [W6920]
AKB74375404 AKB74375404 REMOTE CONTROL
6711A20039M 6711A20039M REMOTE CONTROLLER ASSEMBLY
4010AR3071B 4010AR3071B SOCKET,FLARE
4980A20001B 4980A20001B SUPPORTER ASSEMBLY
EBG61108902 EBG61108902 THERMISTOR,NTC
6171AQ3198A 6171AQ3198A TRANSFORMER,LINEAR
5425AR3847L 5425AR3847L TUBE ASSEMBLY,CAPILLARY [552111]
5211A30038C 5211A30038C TUBE ASSEMBLY,TUBING
2A00392E 2A00392E VALVE,SERVICE [552203A]
2A00392Y 2A00392Y VALVE,SERVICE [552203A]
2H02479B 2H02479B VALVE,SERVICE [552203B]
2H02479F 2H02479F VALVE,SERVICE [552203B]
5220A20005C 5220A20005C VALVE,SERVICE [552203B]
