Model Image
Manufacturer

LG

Model Number

TWC141CGMK0

Description

Twc141cgmk0

Interactive Exploded View

Parts List

Part Number Description
3041A20012R 3041A20012R BASE ASSEMBLY,SINGLE [130410]
4960A20005A 4960A20005A BRACKET,MOTOR [349600]
3091AR2286X 3091AR2286X CABINET ASSEMBLY,SINGLE [130910]
0CZZA20001L 0CZZA20001L CAPACITOR,FILM,BOX [W0CZZ]
4995A30014M 4995A30014M CASE ASSEMBLY,CONTROL [249950]
3H02932B 3H02932B CLAMP,SPRING [W48602]
2520UCBK017 2520UCBK017 COMPRESSOR SET,CHINA [554160]
5403AR2921N 5403AR2921N CONDENSER ASSEMBLY,FIRST [554030]
3550AR7032A 3550AR7032A COVER [135500]
4830AR4335A 4830AR4335A DAMPER,COMPRESSOR [550140]
4900AR7024B 4900AR7024B DAMPER,VENT [349001]
3831A20031L 3831A20031L ESCUTCHEON [238310]
5421AR6086J 5421AR6086J EVAPORATOR ASSEMBLY,FIRST [354210]
5900A10009B 5900A10009B FAN,AXIAL [359011]
5900A20030A 5900A20030A FAN,TURBO [359012]
5231AR1152V 5231AR1152V FILTER,AIR [152302]
3531A20020C 3531A20020C GRILLE ASSEMBLY,FRONT(INDOOR) [135312]
3531A20009D 3531A20009D GRILLE ASSEMBLY,INLET [135303]
5239A20027B 5239A20027B GUIDE ASSEMBLY,AIR [352380]
4974AR3262K 4974AR3262K GUIDE [749740]
3127A20074J 3127A20074J INSTALL PART ASSEMBLY,SINGLE [731273]
5990AR6191A 5990AR6191A LOUVER,HORIZONTAL [147581]
4758AR7308A 4758AR7308A LOUVER,VERTICAL [147582]
4948A10005B 4948A10005B ORIFICE [349480]

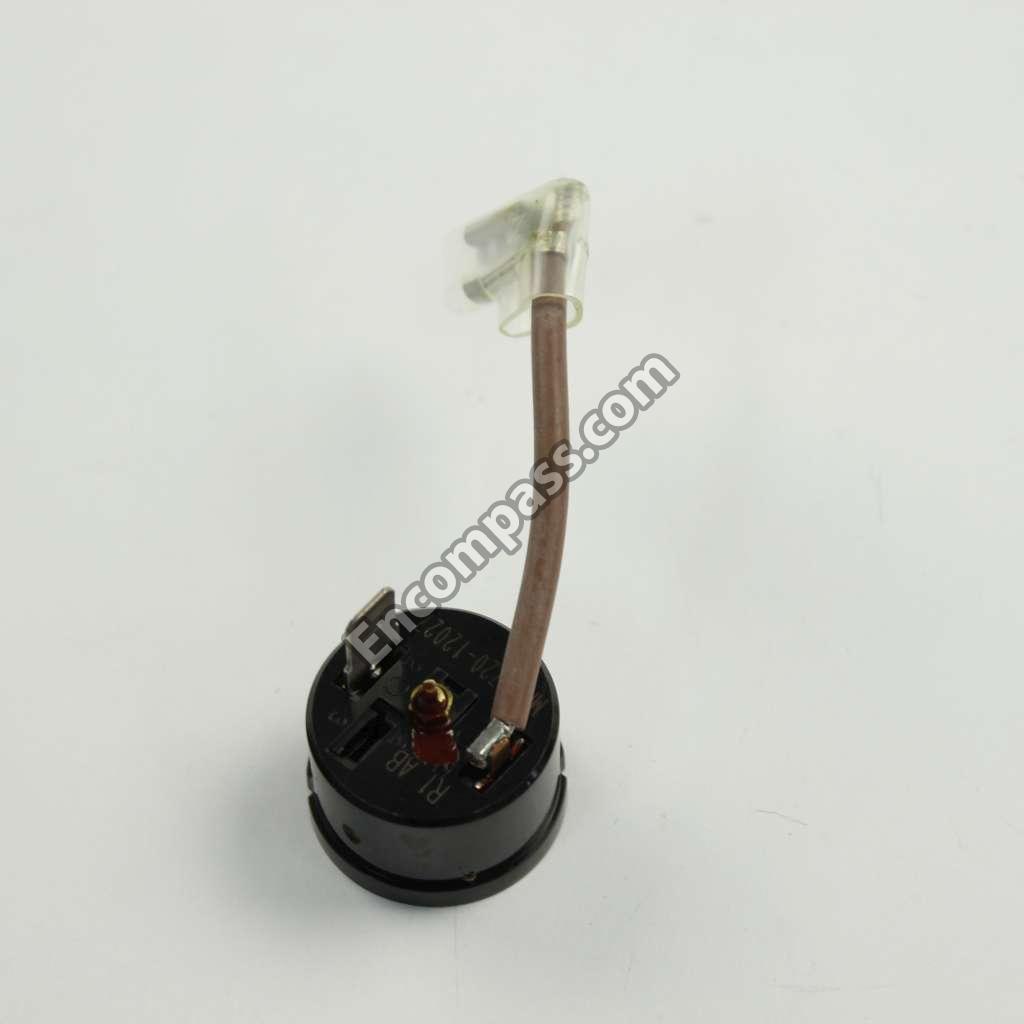

6750U-L046A 6750U-L046A OVERLOAD PROTECT [567502]
6871A20431D 6871A20431D PCB ASSEMBLY,DISPLAY [268711-1]
6871A10123F 6871A10123F PCB ASSEMBLY,MAIN [268711-2]
EAD63469503 EAD63469503 POWER CORD ASSEMBLY [264100]
4998AR1496A 4998AR1496A SHROUD [149980]
4800A10001A 4800A10001A SUPPORTER [148000]
5211A21448B 5211A21448B TUBE ASSEMBLY,CAPILLARY [552102]
5211AR7059A 5211AR7059A TUBE ASSEMBLY,CONNECTOR [552113]
5211A21446A 5211A21446A TUBE ASSEMBLY,DISCHARGE [352113]
5211AR6081G 5211AR6081G TUBE ASSEMBLY,SUCTION(INDOOR) [35211A]
5210AR7062A 5210AR7062A TUBE,EVAPORATOR [W5210E-1]
5210AR7063A 5210AR7063A TUBE,EVAPORATOR [W5210E-2]
