Manufacturer
LG
Model Number
UWC101LDMK5
Description
Uwc101ldmk5
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BASE ASSEMBLY,SINGLE [130410] |
|
|
CABINET ASSEMBLY,SINGLE [130910] |
|
|
CASE ASSEMBLY,CONTROL [249950] |
|
|
CLAMP,SPRING [W48602] |
|
|
COMPRESSOR SET,CHINA [554160] |
|
|
CONDENSER ASSEMBLY,BENDING [554031] |
|
|
COVER [135500] |
|
|
CURTAIN ASSEMBLY [749590-1] |
|
|
CURTAIN ASSEMBLY [749590-2] |
|
|
DAMPER,COMPRESSOR [550140] |
|
|
DAMPER,VENT [349001] |
|
|
DUCT ASSEMBLY [352380-2] |
|
|
EVAPORATOR ASSEMBLY,FIRST [354210] |
|
|
FAN,AXIAL [359011] |
|
|
FAN,TURBO [359012] |
|
|
GRILLE ASSEMBLY,FRONT [135312] |
|
|
GUIDE [749740] |
|
|

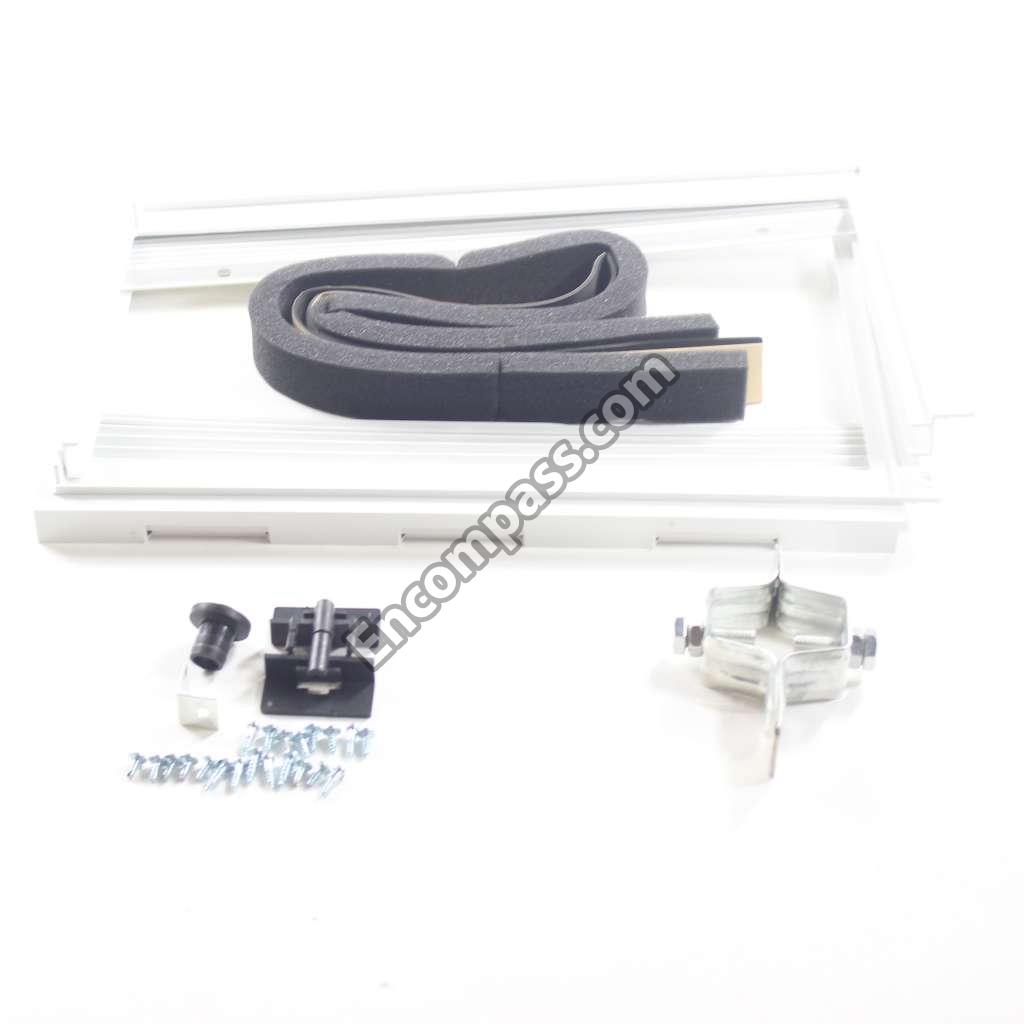

INSTALL PART ASSEMBLY,SINGLE [731373] |
|
|
LOUVER,VERTICAL [147582-1] |
|
|
LOUVER,VERTICAL [147582-2] |
|
|
ORIFICE [349480] |
|
|
OVERLOAD PROTECT [567502] |
|
|
PANEL,CONTROL [237200] |
|
|
POWER CORD ASSEMBLY [264110] |
|
|
REMOTE CONTROLLER ASSEMBLY [267110] |
|
|
SHROUD [549990] |
|
|
SUPPORTER [148000] |
|
|
THERMISTOR,NTC [567480] |
|
|
TUBE ASSEMBLY,CONDENSER(OUT) [552111] |
|
|
TUBE ASSEMBLY,DISCHARGE [352113] |
|
|
TUBE ASSEMBLY,EVAPORATOR(IN) [352115] |
|
|
TUBE ASSEMBLY,SUCTION [35211A] |
