Model Image
Manufacturer

LG

Model Number

WCEP6423F

Description

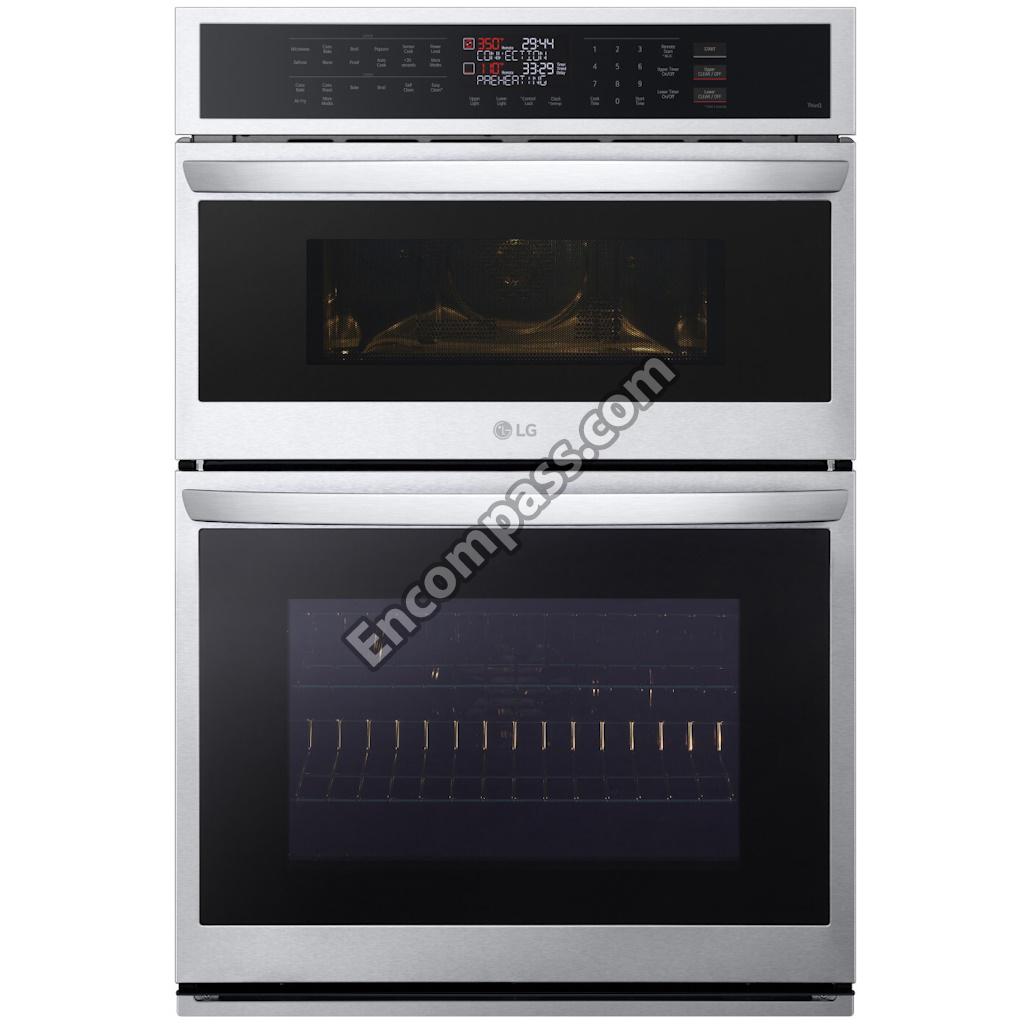

Combination Wall Oven With Air Fry

Interactive Exploded View

Parts List

Part Number Description
EAU62343001 EAU62343001 AC MOTOR FAN
AAA76709921 AAA76709921 ACCESSORY ASSEMBLY,CAVITY
4790W1A013D 4790W1A013D BARRIER
MAL48432602 MAL48432602 BARRIER
MAL41753602 MAL41753602 BARRIER
EBZ63660849 EBZ63660849 BARRIER,PART
MAV62761901 MAV62761901 BLOCK,TERMINAL
ABA75148403 ABA75148403 BRACKET ASSEMBLY
4810WRC002F 4810WRC002F BRACKET,CAPACITOR
MAZ41753502 MAZ41753502 BRACKET,CONTROL PANEL
MAZ66329001 MAZ66329001 BRACKET,CONTROL PANEL
MAZ66329002 MAZ66329002 BRACKET,CONTROL PANEL
4810W1A369B 4810W1A369B BRACKET,HEATER
4810W1A347B 4810W1A347B BRACKET,HEATER
4810W1A345B 4810W1A345B BRACKET,HEATER
4810W1A346B 4810W1A346B BRACKET,HEATER
MAZ48427301 MAZ48427301 BRACKET,HINGE
MAZ64603204 MAZ64603204 BRACKET,HINGE
4810W1A361B 4810W1A361B BRACKET,IDLE
4810W1A180A 4810W1A180A BRACKET,IDLE
4810W1A378B 4810W1A378B BRACKET,IDLE
4810W1A379B 4810W1A379B BRACKET,IDLE
4810W3G141C 4810W3G141C BRACKET,IDLE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ40417401 MAZ40417401 BRACKET,MOTOR
4810W1N060B 4810W1N060B BRACKET,MOTOR
MAZ66388901 MAZ66388901 BRACKET,MOTOR
MAZ55266201 MAZ55266201 BRACKET,MOUNT
MAZ47162501 MAZ47162501 BRACKET,MOUNT
MAZ66270501 MAZ66270501 BRACKET,MOUNT
EBZ63660854 EBZ63660854 BRACKET,PART
EBZ63660855 EBZ63660855 BRACKET,PART
EBZ63660857 EBZ63660857 BRACKET,PART
6021W3B001V 6021W3B001V CABLE,ASSEMBLY
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE
ABQ30251702 ABQ30251702 CASE ASSEMBLY,OUT
3112W0F050G 3112W0F050G CASE,FLAT
MBR40415301 MBR40415301 CHAMBER
3504W1A006B 3504W1A006B CHAMBER
3504W1A007B 3504W1A007B CHAMBER
3505W1A007H 3505W1A007H CHAMBER ASSEMBLY
3505W1A007F 3505W1A007F CHAMBER ASSEMBLY
3505W1A007J 3505W1A007J CHAMBER ASSEMBLY
6640000045A 6640000045A CONNECTOR,TERMINAL BLOCK
EBR76332902 EBR76332902 CONTROL BOARD,OPTION
EBR34132103 EBR34132103 CONTROL BOARD,WIFI
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
AGM75009057 AGM75009057 CONTROLLER,PARTS ASSEMBLY,SVC
ACQ91598003 ACQ91598003 COVER ASSEMBLY,FRONT
ACQ30615605 ACQ30615605 COVER ASSEMBLY,FRONT
MCK71751301 MCK71751301 COVER,BRACKET
MCK71410701 MCK71410701 COVER,BRACKET
3550W1A306B 3550W1A306B COVER,HEATER
3550W1A307B 3550W1A307B COVER,HEATER
MCK68473102 MCK68473102 COVER,HEATER
MCK68473119 MCK68473119 COVER,HEATER
MCK47161201 MCK47161201 COVER,INNER
MCK40417601 MCK40417601 COVER,INNER
MCK70231701 MCK70231701 COVER,INSULATOR
3052W1M020A 3052W1M020A COVER,INSULATOR
3550W1A348A 3550W1A348A COVER,LAMP
MCK40420101 MCK40420101 COVER,REAR
3550W0A120C 3550W0A120C COVER,REAR
MCK70231501 MCK70231501 COVER,SAFETY
MCK70231401 MCK70231401 COVER,TOP
MCR67448801 MCR67448801 DECOR,SIDE
MCR67448901 MCR67448901 DECOR,SIDE
MCR68431102 MCR68431102 DECOR,VENT
ADC30020712 ADC30020712 DOOR ASSEMBLY,FULL
ADC30020704 ADC30020704 DOOR ASSEMBLY,FULL
5208W1A047B 5208W1A047B DUCT
5209W1A024C 5209W1A024C DUCT ASSEMBLY
ADJ52698704 ADJ52698704 DUCT ASSEMBLY
ADP75673301 ADP75673301 FAN ASSEMBLY
5901W1E002G 5901W1E002G FAN ASSEMBLY
590081A002A 590081A002A FAN,CONVECTION
5900W1N004B 5900W1N004B FAN,CONVECTION
5900W3A004E 5900W3A004E FAN,CONVECTION
3B72559A 3B72559A FAN,CONVECTION
EBZ63660865 EBZ63660865 FAN,PART
EAM62952105 EAM62952105 FILTER ASSEMBLY
ADV34868807 ADV34868807 FRAME ASSEMBLY,DOOR
EAF36358319 EAF36358319 FUSE ASSEMBLY
3B74133Q 3B74133Q FUSE,TIME DELAY
ADX75734901 ADX75734901 GASKET ASSEMBLY
MDX40418606 MDX40418606 GRILLE
MDX40418806 MDX40418806 GRILLE
MDX40418809 MDX40418809 GRILLE
5264W1A032B 5264W1A032B GUIDE,AIR
MEB65414301 MEB65414301 HANDLE,DOOR
EAD64845307 EAD64845307 HARNESS,MULTI
6877W1A604C 6877W1A604C HARNESS,SINGLE
EAD62349814 EAD62349814 HARNESS,SINGLE

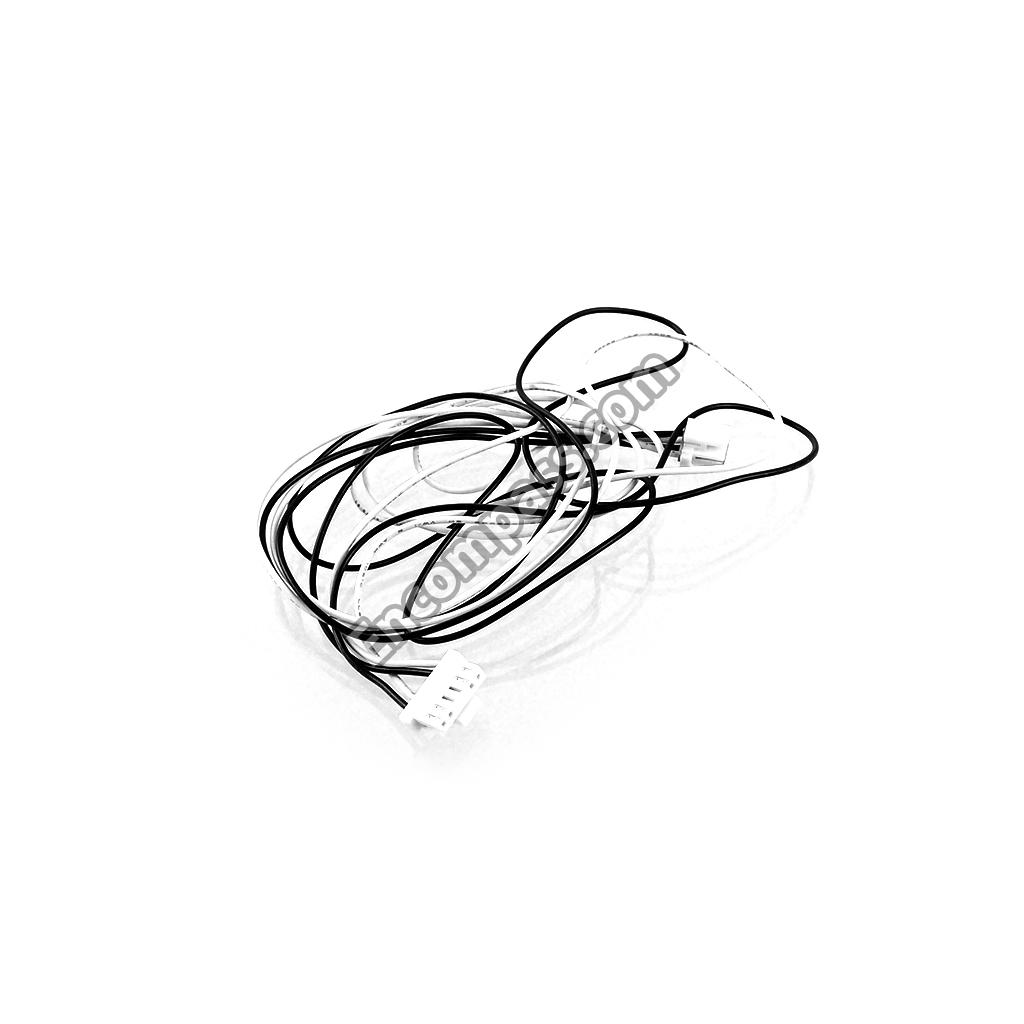

EAD34822981 EAD34822981 HARNESS,SINGLE
6877W1A605G 6877W1A605G HARNESS,SINGLE
EAD34822966 EAD34822966 HARNESS,SINGLE
EAD34822923 EAD34822923 HARNESS,SINGLE
6877W2A002U 6877W2A002U HARNESS,SINGLE
EAD64865406 EAD64865406 HARNESS,SINGLE
5300W2H004M 5300W2H004M HEATER,HALOGEN
5300W1A005H 5300W1A005H HEATER,MIRACLON
5300W2A006W 5300W2A006W HEATER,MIRACLON
5300W1A005E 5300W1A005E HEATER,MIRACLON
5300W1A005J 5300W1A005J HEATER,MIRACLON
5300W2A006Q 5300W2A006Q HEATER,MIRACLON
MEE41716802 MEE41716802 HEATER,SHEATH
MEE41716501 MEE41716501 HEATER,SHEATH
5300W1S006M 5300W1S006M HEATER,SHEATH
EBZ63660845 EBZ63660845 HEATER,SHEATH,PART
AEH75637214 AEH75637214 HINGE ASSEMBLY
4931W1A009N 4931W1A009N HOLDER ASSEMBLY
4931W1A009C 4931W1A009C HOLDER ASSEMBLY
3501W1A028H 3501W1A028H HOLDER ASSEMBLY,LOCKER
3501W1A029H 3501W1A029H HOLDER ASSEMBLY,LOCKER
3500W1A023B 3500W1A023B HOLDER,LOCKER
3500W1A022B 3500W1A022B HOLDER,LOCKER
4B72510F 4B72510F HOLDER,WIRE
MEV63330702 MEV63330702 INSULATOR
MEV40416102 MEV40416102 INSULATOR
MEV40415402 MEV40415402 INSULATOR
MEV42726401 MEV42726401 INSULATOR
5290W1A017A 5290W1A017A INSULATOR
6912A40002J 6912A40002J LAMP,HALOGEN
EAQ43128703 EAQ43128703 LAMP,HALOGEN
6912A40002K 6912A40002K LAMP,HALOGEN
6912A40002M 6912A40002M LAMP,HALOGEN
EAV65038304 EAV65038304 LED DISPLAY MODULE
4510W1A006C 4510W1A006C LEVER
EBR85707907 EBR85707907 MAIN BOARD
EBR85708004 EBR85708004 MAIN BOARD
6324W1A001L 6324W1A001L MICROWAVE MAGNETRON
EAU63303805 EAU63303805 MOTOR ASSEMBLY,AC,FAN
EAU43957801 EAU43957801 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU43957805 EAU43957805 MOTOR ASSEMBLY,AC,SYNCHRONOUS
6549W1V010J 6549W1V010J MOTOR, AC BLOWER
2B72066Y 2B72066Y MOTOR, AC CIRCULATION
6549W1S018C 6549W1S018C MOTOR, AC SYNCHRONOUS
1NHB0500032 1NHB0500032 NUT,COMMON
4B71028B 4B71028B NUT,COMMON
FAD33778501 FAD33778501 NUT,COMMON
1NZZW1N002A 1NZZW1N002A NUT,CUSTOMIZED
MFZ54382601 MFZ54382601 PACKING,GASKET
MFZ40418402 MFZ40418402 PACKING,GASKET
4960W3A003D 4960W3A003D PLATE
AGU56000302 AGU56000302 PLATE ASSEMBLY,BASE
3303W0A030G 3303W0A030G PLATE ASSEMBLY,BASE
AGU76528302 AGU76528302 PLATE ASSEMBLY,REAR
4960W0A002C 4960W0A002C PLATE,GUIDE
EAD42825101 EAD42825101 POWER CORD ASSEMBLY
3034W2A008C 3034W2A008C REFLECTOR
3034W2A007H 3034W2A007H REFLECTOR
3035W1A010D 3035W1A010D REFLECTOR ASSEMBLY
AHE73469501 AHE73469501 REFLECTOR ASSEMBLY
AHE73469102 AHE73469102 REFLECTOR ASSEMBLY
EBZ63660875 EBZ63660875 REFLECTOR,PART
MGZ63607001 MGZ63607001 RING
1SZZW5N001D 1SZZW5N001D SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
4B70188C 4B70188C SCREW,CUSTOMIZED
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
4000W4A001B 4000W4A001B SCREW,CUSTOMIZED
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
1MTC0403132 1MTC0403132 SCREW,MACHINE
1ATF0502610 1ATF0502610 SCREW,TAPTITE
1SBF0402418 1SBF0402418 SCREW,TAPTITE
6501W1A013A 6501W1A013A SENSOR ASSEMBLY
4371W1A001B 4371W1A001B SHAFT,TURNTABLE
MHL64891810 MHL64891810 SHELF
5026W1A078B 5026W1A078B SHELF
4778W4A011E 4778W4A011E SHELF
MHL49207701 MHL49207701 SHELF
MHL64891808 MHL64891808 SHELF
MHL64891809 MHL64891809 SHELF
4980W1A027C 4980W1A027C SUPPORTER
MJH55321601 MJH55321601 SUPPORTER
3740W1A024F 3740W1A024F SUPPORTER
4980W1A111E 4980W1A111E SUPPORTER
4980W1N013A 4980W1N013A SUPPORTER
4930W3A014C 4930W3A014C SUPPORTER
MJH55321602 MJH55321602 SUPPORTER
MJH55321603 MJH55321603 SUPPORTER
MJH65513101 MJH65513101 SUPPORTER,HANDLE
EBZ63898531 EBZ63898531 SUPPORTER,PART
MJH66363301 MJH66363301 SUPPORTER,PCB
MJH66363302 MJH66363302 SUPPORTER,PCB
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
EBF60663404 EBF60663404 SWITCH,TACT
EBF60663403 EBF60663403 SWITCH,TACT
3536W1A001Q 3536W1A001Q TAPE,SEALING
6322W1A001B 6322W1A001B THERMISTOR,NTC
EBG61305805 EBG61305805 THERMISTOR,PTC
6930W1A003Q 6930W1A003Q THERMOSTAT
6930W1A003Z 6930W1A003Z THERMOSTAT
EBG51439303 EBG51439303 THERMOSTAT

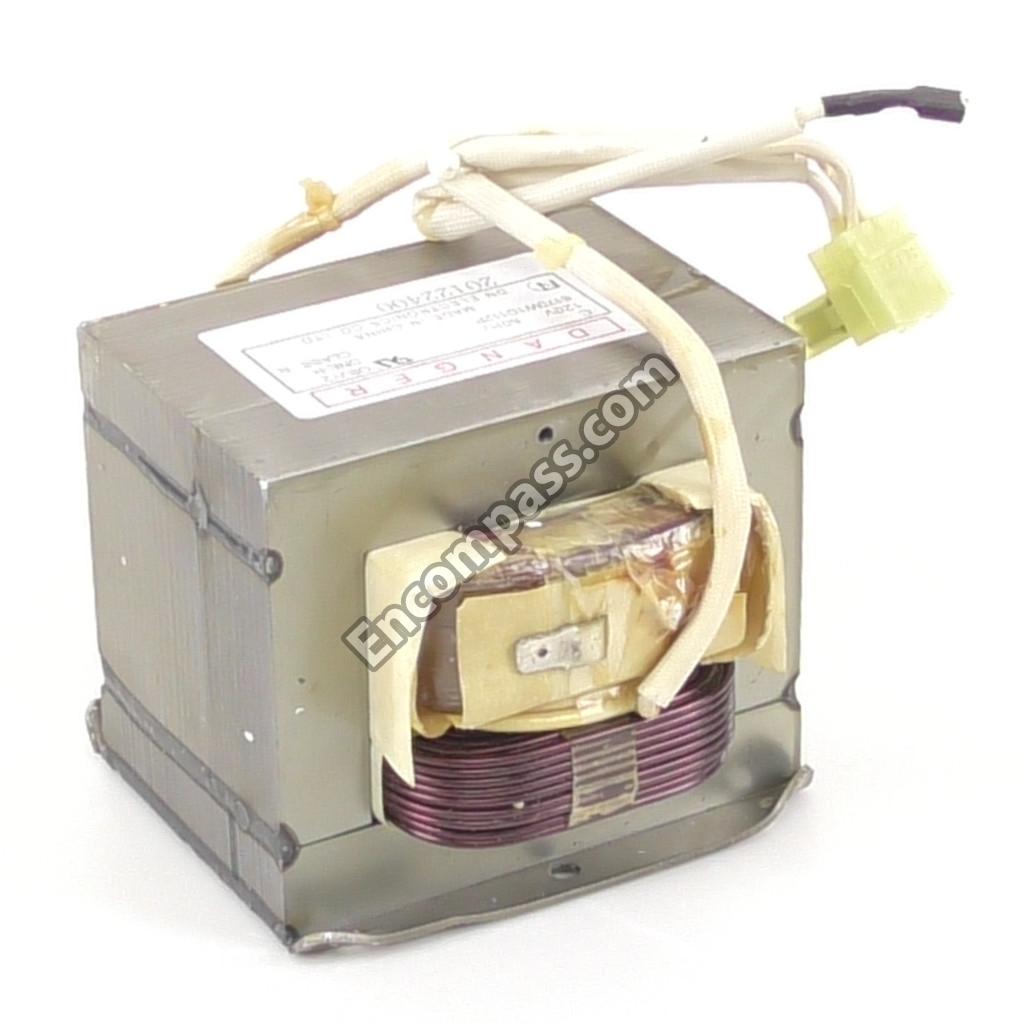

6170W1D112S 6170W1D112S TRANSFORMER,HIGH VOLTAGE
6170W1D112P 6170W1D112P TRANSFORMER,HIGH VOLTAGE
6170W1D112T 6170W1D112T TRANSFORMER,HIGH VOLTAGE
3390W1A017C 3390W1A017C TRAY,GLASS
3390W1A017A 3390W1A017A TRAY,GLASS
3390W1A043C 3390W1A043C TRAY,METAL
3390W2P002K 3390W2P002K TRAY,METAL
3390W1A043D 3390W1A043D TRAY,METAL
5889W1A017B 5889W1A017B TURNTABLE ASSEMBLY
5889W1A017A 5889W1A017A TURNTABLE ASSEMBLY
MJZ41753802 MJZ41753802 VENT
AJV56083902 AJV56083902 VENT ASSEMBLY
1WPL0500032 1WPL0500032 WASHER,COMMON
1WSD0400032 1WSD0400032 WASHER,COMMON
1WZZW3Z003E 1WZZW3Z003E WASHER,CUSTOMIZED
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
1WZZW3Z003C 1WZZW3Z003C WASHER,CUSTOMIZED
4890W1N009H 4890W1N009H WINDOW,GLASS
