Model Image
Manufacturer

LG

Model Number

WD10583BD

Description

Wd-10583bd

Interactive Exploded View

Parts List

Part Number Description
4866ER1016A 4866ER1016A BALANCE WEIGHT [K130]
3041ER0001H 3041ER0001H BASE ASSEMBLY,CABINET [A200]

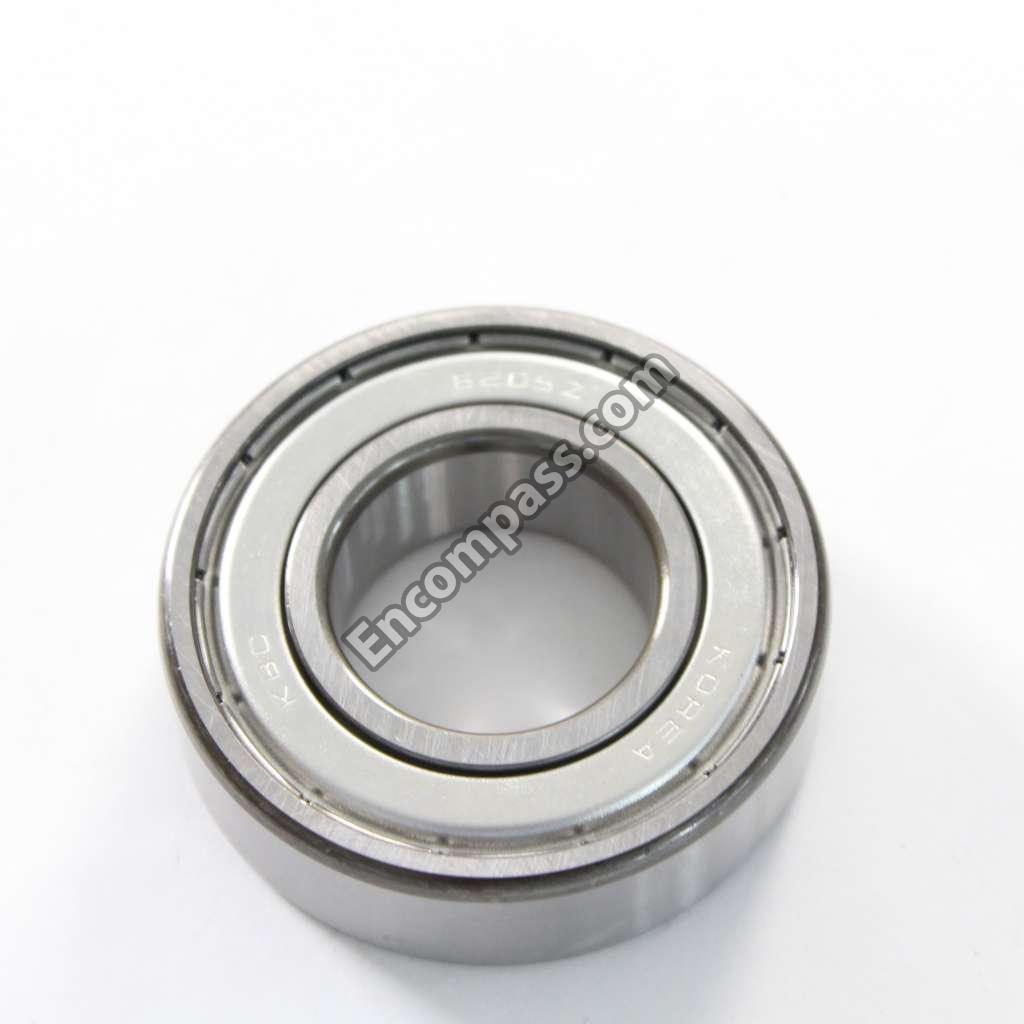

4280FR4048K 4280FR4048K BEARING,BALL [K121]
4280FR4048C 4280FR4048C BEARING,BALL [K122]
4738ER1004B 4738ER1004B BELLOWS [F310]
4738ER2002A 4738ER2002A BELLOWS [F315]
4738ER1006A 4738ER1006A BELLOWS [K520]
FAA31690704 FAA31690704 BOLT ASSEMBLY [A104]
FAA31690703 FAA31690703 BOLT ASSEMBLY [A105]
4040FR4051C 4040FR4051C BOLT ASSEMBLY [K123]
4011FA4353B 4011FA4353B BOLT,COMMON [K143]
MAY62084401 MAY62084401 BOX,CARTON [*002]
4810ER3016A 4810ER3016A BRACKET,BASE [A201]
4810ER3021A 4810ER3021A BRACKET,HINGE [A111]
MAZ38811101 MAZ38811101 BRACKET,HINGE [A134]
4830ER3001A 4830ER3001A BUSH [A102]
3091ER0004C 3091ER0004C CABINET ASSEMBLY [A100]
5006ER2005A 5006ER2005A CAP,COVER [A310]
5230ER3002A 5230ER3002A CAP,DRAIN HOSE [A303]
5006ER3021A 5006ER3021A CAP,SOFTENER [F225]
3110ER2005A 3110ER2005A CASE [A300]
3108ER1001B 3108ER1001B CASING,PUMP [K344]
3504FR3134A 3504FR3134A CHAMBER,AIR [K540]
ACA72969501 ACA72969501 CLAMP ASSEMBLY [A133]

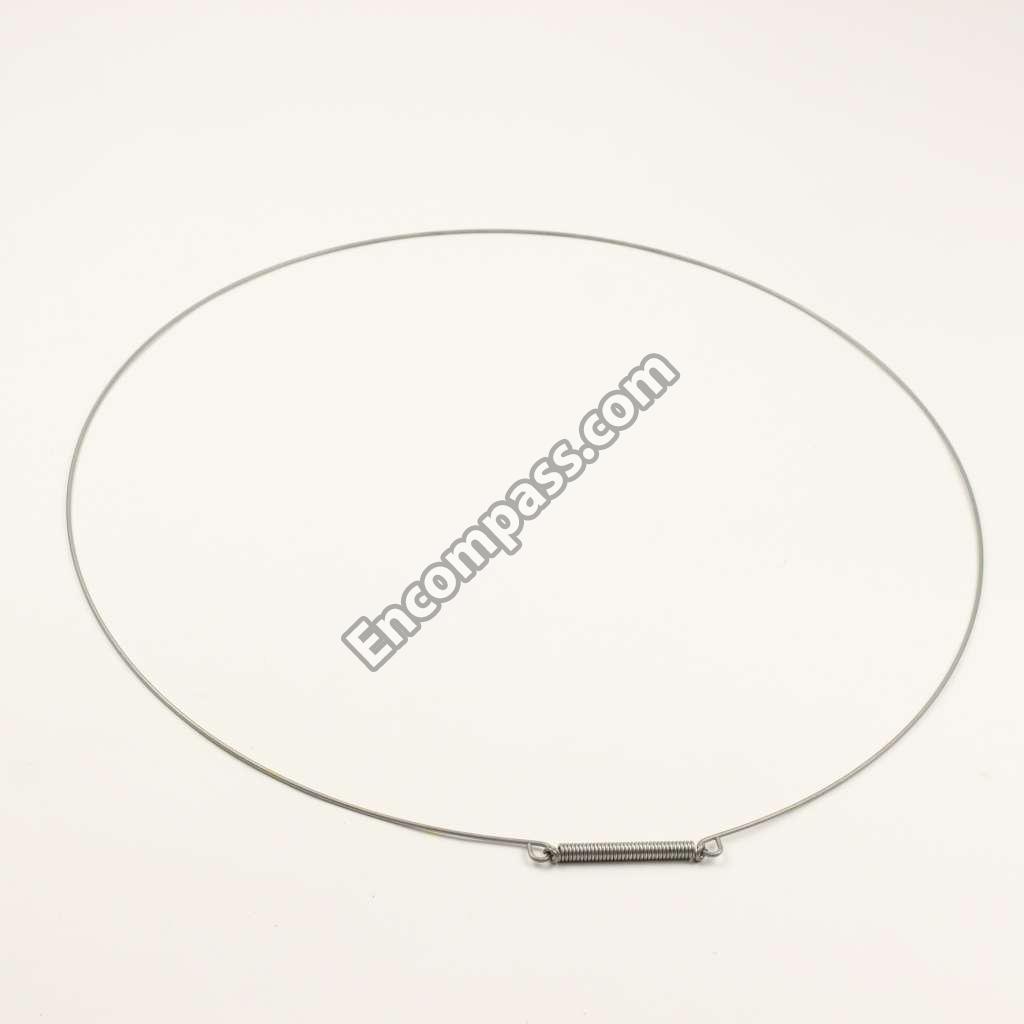

4861ER2001E 4861ER2001E CLAMP ASSEMBLY [K530]
4861FR3068C 4861FR3068C CLAMP [F441]
4861FR3068A 4861FR3068A CLAMP [F462]
4860FR3092D 4860FR3092D CLAMP [F463]
4860FR3092K 4860FR3092K CLAMP [F464]
4861FR3068E 4861FR3068E CLAMP [F468]
3550ER0025B 3550ER0025B COVER ASSEMBLY,TUB [K140]
3550ER1028A 3550ER1028A COVER,REAR [A101]
4925ER1015B 4925ER1015B DISPENSER ASSEMBLY [F300]
3581ER1010A 3581ER1010A DOOR ASSEMBLY [A150]
AGF31510395 AGF31510395 FILTER ASSEMBLY [A485]

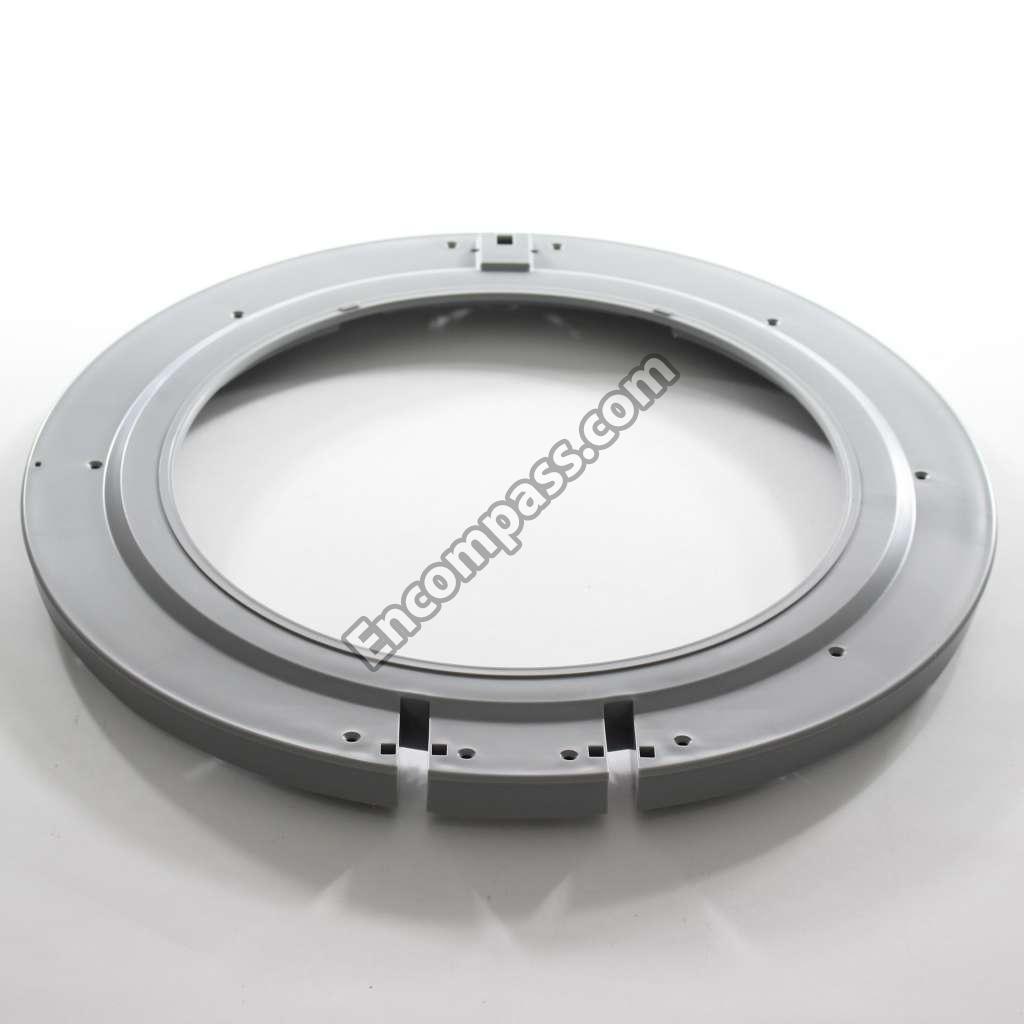

3212ER0008A 3212ER0008A FRAME,DOOR(INNER) [A152]
3212ER0007A 3212ER0007A FRAME,DOOR(OUTER) [A151]
4036ER2003A 4036ER2003A GASKET [K125]
4036ER4001C 4036ER4001C GASKET [K141]

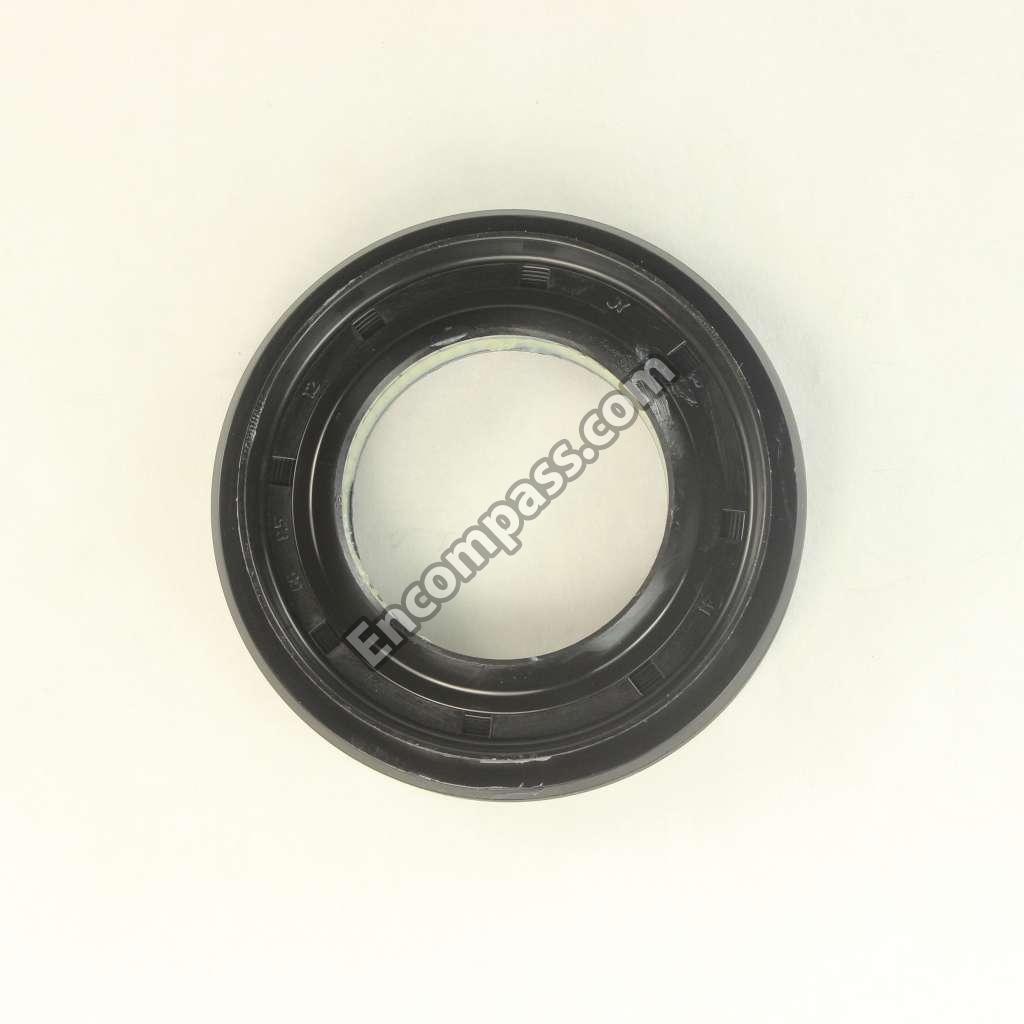

4036FR4050A 4036FR4050A GASKET [K311]

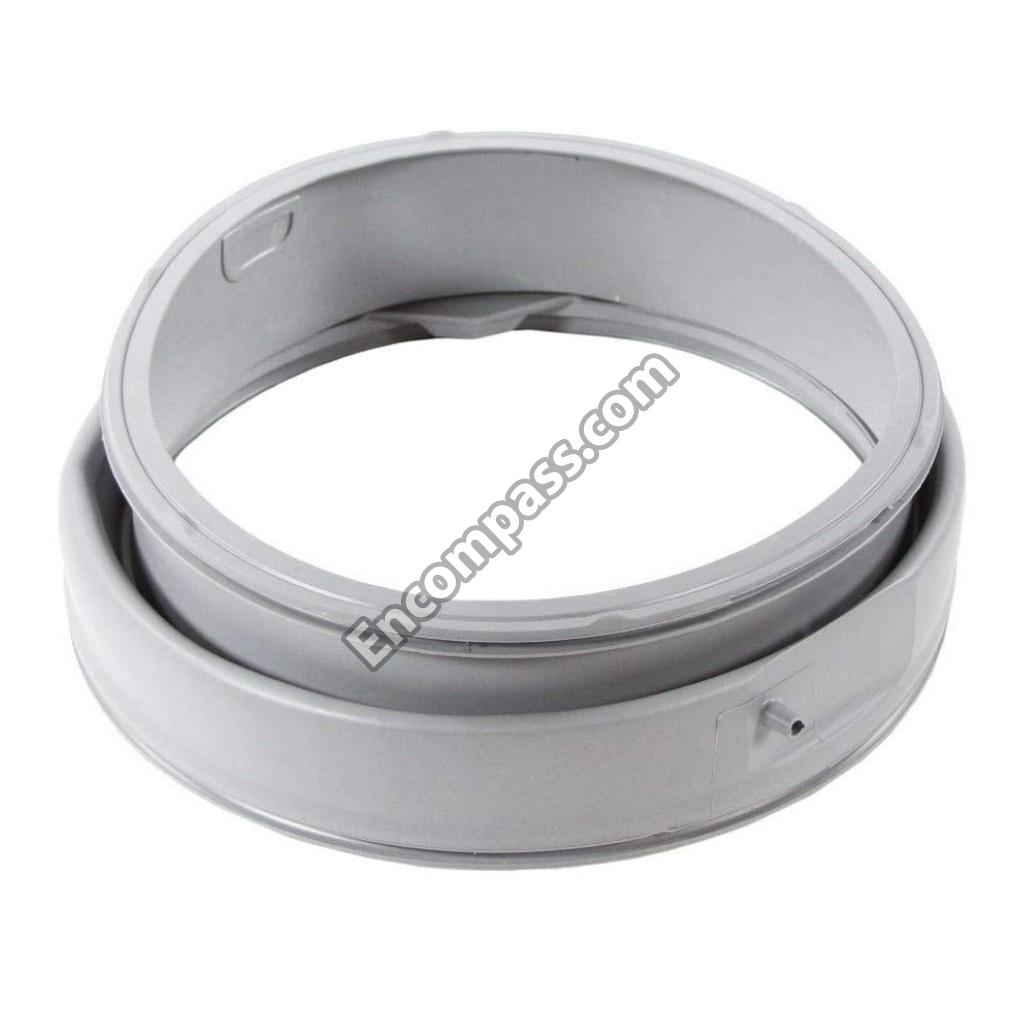

4986ER0006F 4986ER0006F GASKET [K510]
3650EL2003A 3650EL2003A HANDLE [A153]
3650FA3489C 3650FA3489C HANDLE [A155]
3W50712A 3W50712A HANGER ASSEMBLY,PIVOT [F432]
6877ER1029B 6877ER1029B HARNESS,MULTI [F120]
6877ER1016C 6877ER1016C HARNESS,MULTI [F140]
6877ER3003H 6877ER3003H HARNESS,SINGLE [F145]
4774ER2008A 4774ER2008A HINGE [A140]
4774FR3118B 4774FR3118B HINGE [K611]
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY [A131]
AEJ33026401 AEJ33026401 HOLDER ASSEMBLY [A141]
4930ER3014A 4930ER3014A HOLDER [A103]
4930FR3040A 4930FR3040A HOLDER [K411]
5214FR4006G 5214FR4006G HOSE,CONNECTOR [K342]
5215FD3715L 5215FD3715L HOSE,INLET [A275]
5215FD3715V 5215FD3715V HOSE,INLET [A276]
5214ER4001B 5214ER4001B HOSE,INLET [F321]
5214ER4001J 5214ER4001J HOSE,INLET [F323]
AEM73273001 AEM73273001 HOSE,PUMP [F430]
4940ER3015B 4940ER3015B KNOB,ROTARY [F215]
AFC72909305 AFC72909305 LEG ASSEMBLY [A220]
MFE38265101 MFE38265101 LIFTER [K111]
MFG62439301 MFG62439301 LOCKER,HOOK [A154]
4681EA2001T 4681EA2001T MOTOR ASSEMBLY,AC,PUMP [K340]
AGL37071101 AGL37071101 PANEL ASSEMBLY,CONTROL [F210]
AGL37071601 AGL37071601 PANEL ASSEMBLY,DRAWER [F220]
AGM73171801 AGM73171801 PARTS ASSEMBLY [G010]
383EER3001W 383EER3001W PARTS ASSEMBLY [K142]
383EER2001A 383EER2001A PARTS ASSEMBLY [K346]
383EER3001G 383EER3001G PARTS ASSEMBLY [K610]
EBR43051402 EBR43051402 PCB ASSEMBLY,DISPLAY [F110]

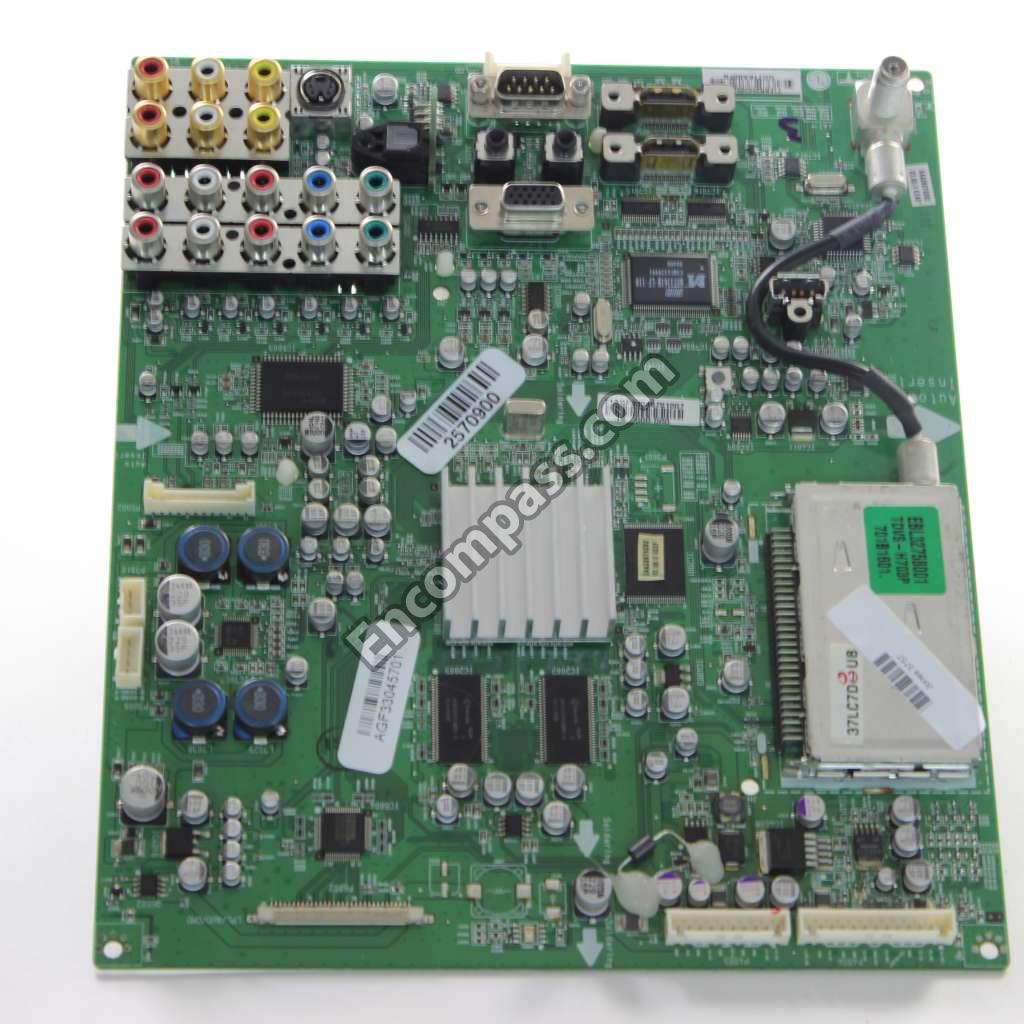

EBR43249701 EBR43249701 PCB ASSEMBLY,MAIN [A450]
3457ER1006B 3457ER1006B PLATE ASSEMBLY,TOP [A110]
EAD49973501 EAD49973501 POWER CORD ASSEMBLY [A430]
4413ER1002F 4413ER1002F ROTOR ASSEMBLY [K360]
1SZZER4002A 1SZZER4002A SCREW,CUSTOMIZED [K131]
1TTL0403032 1TTL0403032 SCREW,TAPPING [K117]
6501KW2001A 6501KW2001A SENSOR ASSEMBLY [K351]
3W20018B 3W20018B SPANNER [*003]
4434ER0003C 4434ER0003C SPIDER [K115]
4970FR2084S 4970FR2084S SPRING,HINGE [K410]
4417EA1002J 4417EA1002J STATOR ASSEMBLY [K350]
EBF49827801 EBF49827801 SWITCH ASSEMBLY,LOCKER [A440]
6601ER1006A 6601ER1006A SWITCH ASSEMBLY,PRESSURE [A410]
6322FR2046C 6322FR2046C THERMISTOR,NTC [K310]
3045ER0021E 3045ER0021E TUB ASSEMBLY,DRUM(INNER) [K110]

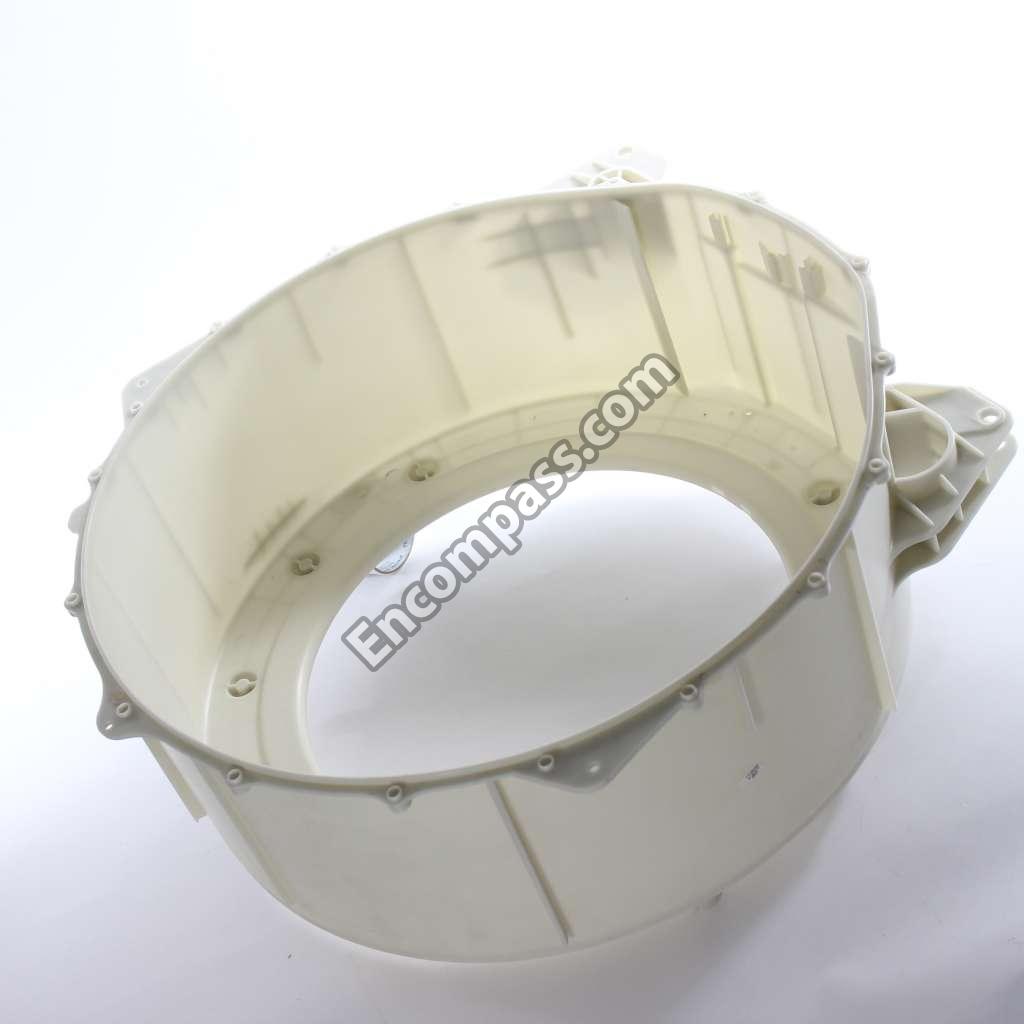

3045ER0023A 3045ER0023A TUB ASSEMBLY,OUTER [K105]
5220FR2075L 5220FR2075L VALVE ASSEMBLY,INLET [F160]
5220FR2006H 5220FR2006H VALVE ASSEMBLY,INLET [F170]
