Model Image
Manufacturer

LG

Model Number

WD205CV

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

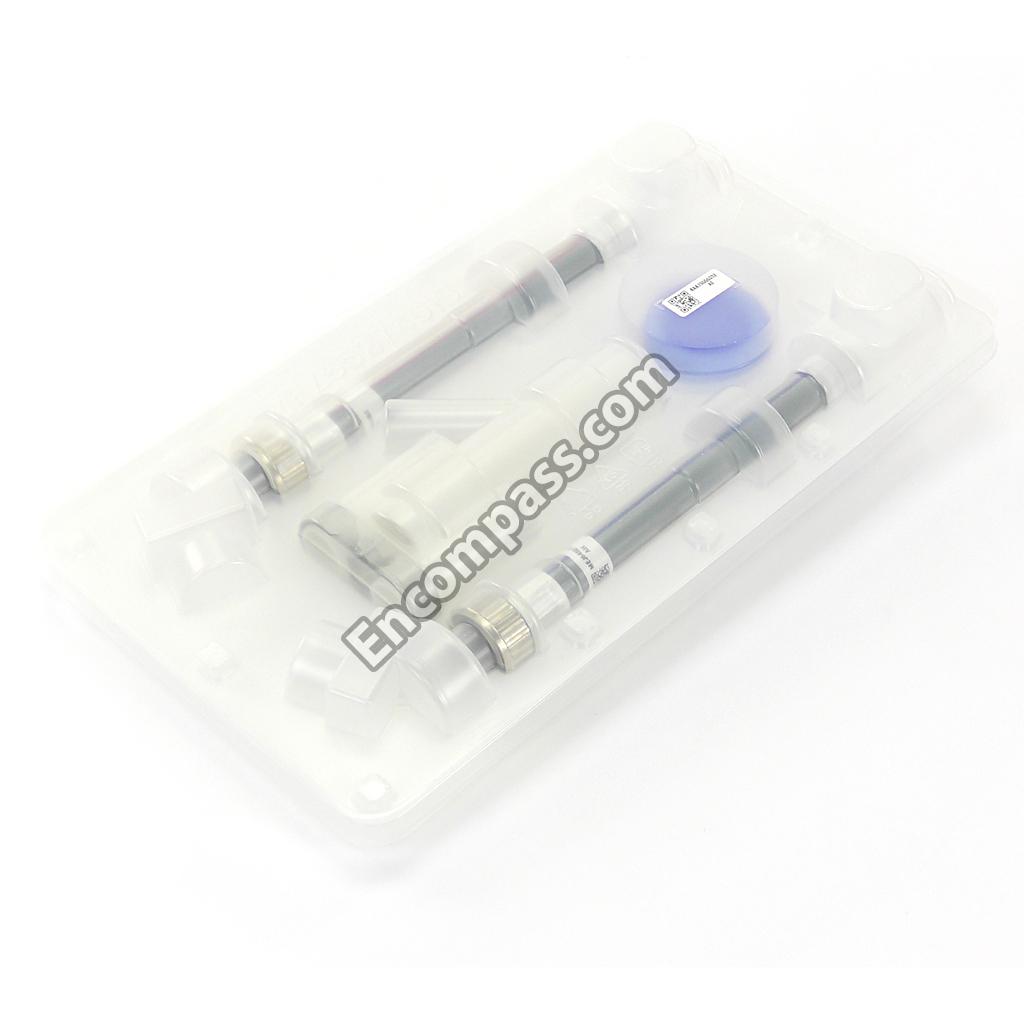

AAA76555332 AAA76555332 ACCESSORY ASSEMBLY
AAA36585236 AAA36585236 ACCESSORY ASSEMBLY
MAR62262101 MAR62262101 BELLOWS
MAR62261901 MAR62261901 BELLOWS
MAR62262001 MAR62262001 BELLOWS
4040FR4051C 4040FR4051C BOLT ASSEMBLY
MBG65362601 MBG65362601 BUTTON,POWER SWITCH
ACJ73730102 ACJ73730102 CONNECTOR ASSEMBLY

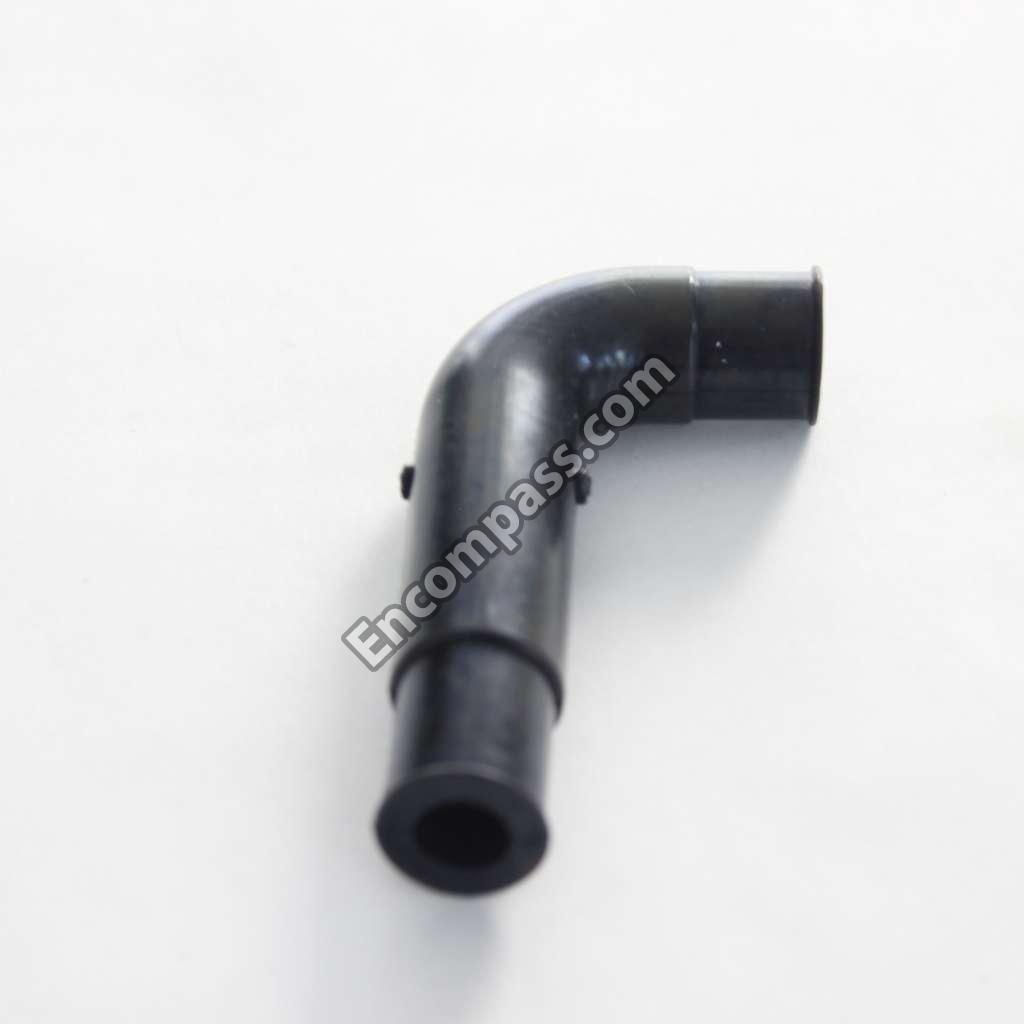

MCD63147001 MCD63147001 CONNECTOR,HOSE
MCD63146901 MCD63146901 CONNECTOR,NOZZLE
ACQ87681117 ACQ87681117 COVER ASSEMBLY,FRONT
ACQ87672403 ACQ87672403 COVER ASSEMBLY,REAR
ACQ88676203 ACQ88676203 COVER ASSEMBLY,TUB
MCK69215105 MCK69215105 COVER,FRONT
MCK69073401 MCK69073401 COVER,LOWER
3550ER0032D 3550ER0032D COVER,LOWER
MCK69049201 MCK69049201 COVER,PROTECT
MCK65833301 MCK65833301 COVER,PROTECT
MCK68425502 MCK68425502 COVER,TOP
MCK68354301 MCK68354301 COVER,TOP
MCK68426102 MCK68426102 COVER,WATER INLET
ACV73990101 ACV73990101 DAMPER ASSEMBLY,FRICTION
ACV73990001 ACV73990001 DAMPER ASSEMBLY,FRICTION
ADV74288611 ADV74288611 FRAME ASSEMBLY

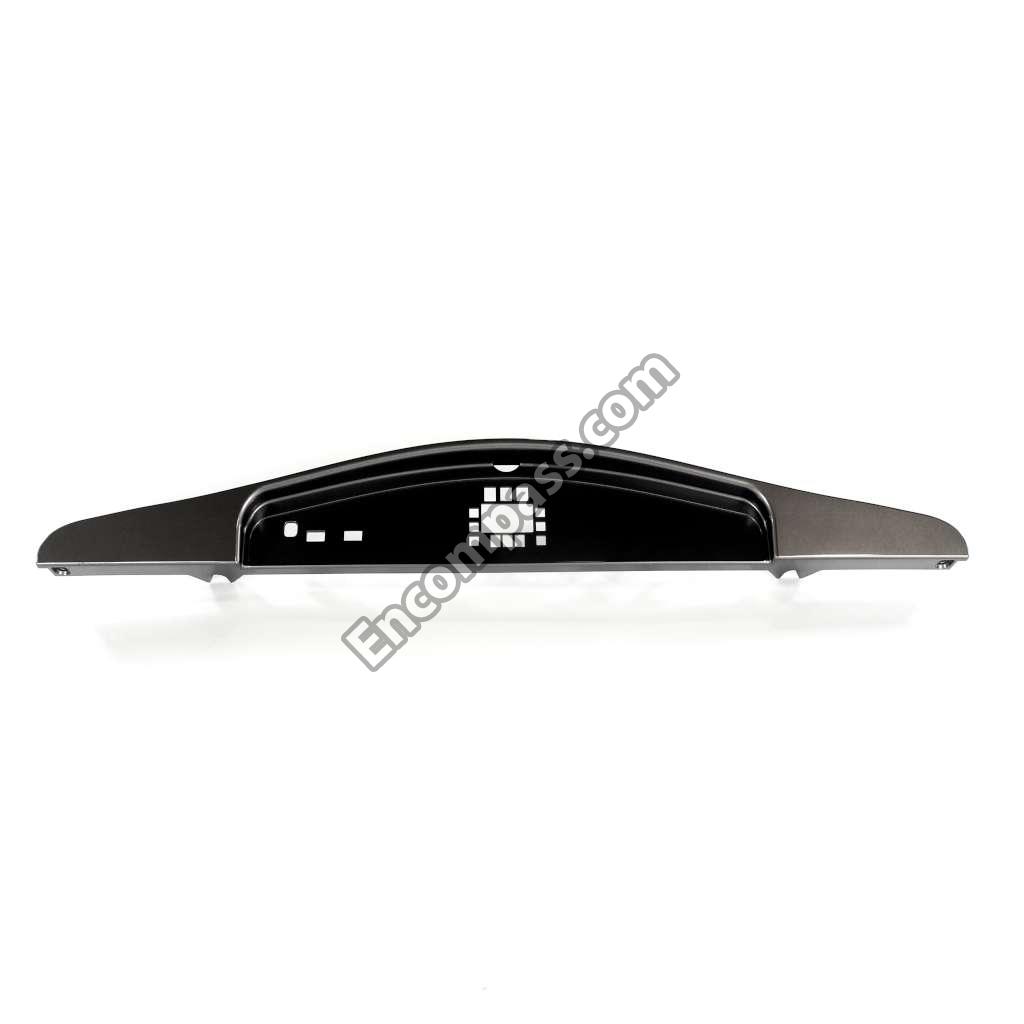

MDQ64216301 MDQ64216301 FRAME,COVER(FRONT)
AEC75357402 AEC75357402 GUIDE ASSEMBLY
MEB63454003 MEB63454003 HANDLE

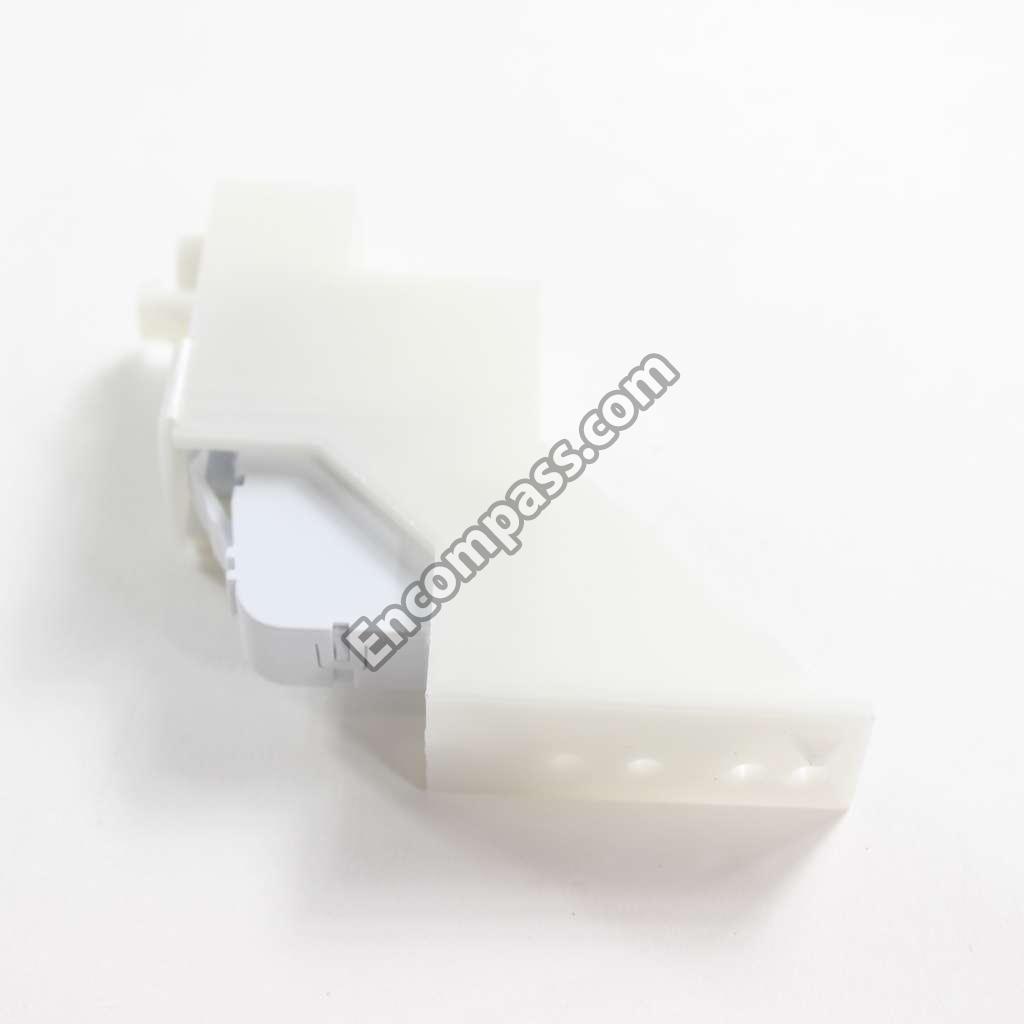

MEC62765001 MEC62765001 HANGER,UPPER
EAD63105211 EAD63105211 HARNESS,MULTI
EAD63105301 EAD63105301 HARNESS,SINGLE
EAD63146204 EAD63146204 HARNESS,SINGLE
EAD63146401 EAD63146401 HARNESS,SINGLE
EAD63146302 EAD63146302 HARNESS,SINGLE

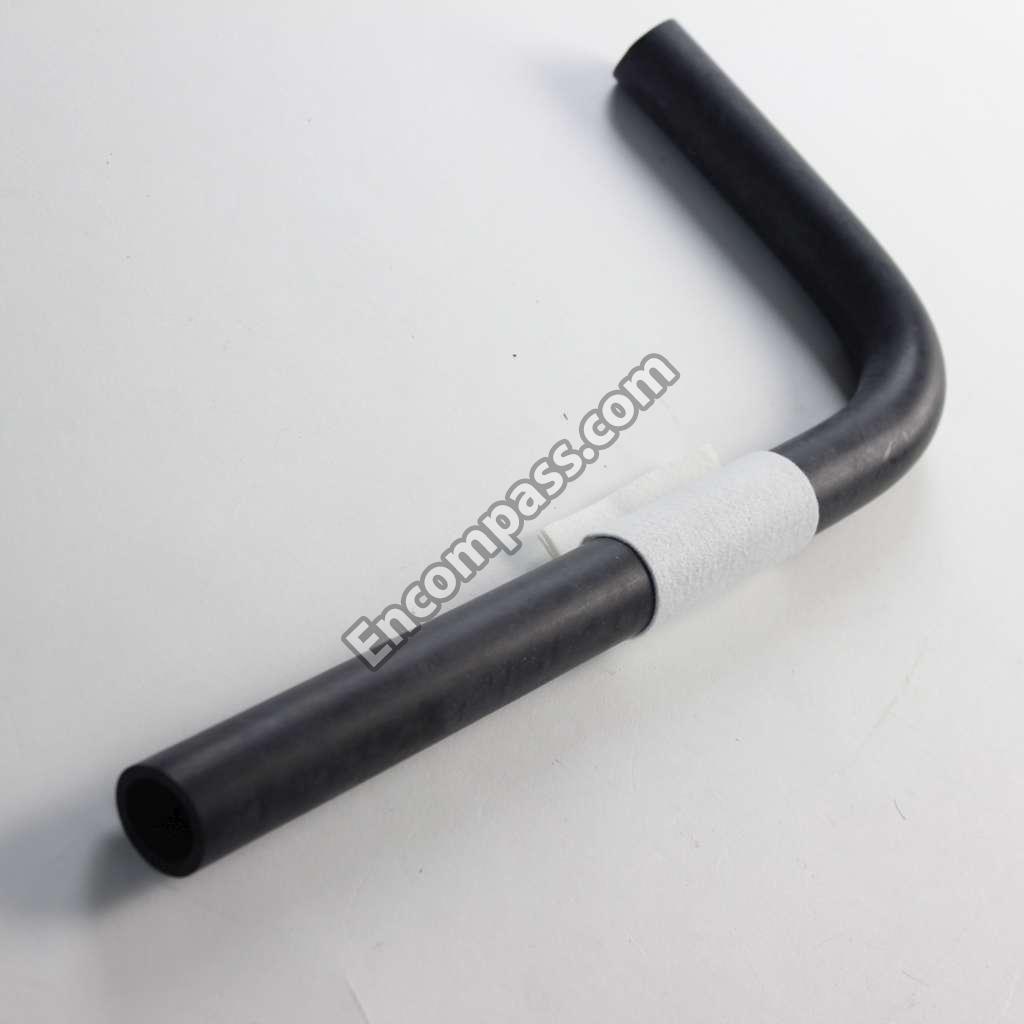

MEJ63165002 MEJ63165002 HOSE,CONNECTOR
MEJ63165201 MEJ63165201 HOSE,CONNECTOR
MEJ63165001 MEJ63165001 HOSE,CONNECTOR
MEJ63184801 MEJ63184801 HOSE,DRAIN
MEJ63184901 MEJ63184901 HOSE,DRAIN
MEJ63644601 MEJ63644601 HOSE,INLET
MEJ63184701 MEJ63184701 HOSE,INLET
MEJ62884703 MEJ62884703 HOSE,PUMP
AFC72755402 AFC72755402 LEG ASSEMBLY
AFG73409701 AFG73409701 LID ASSEMBLY
EAU63143502 EAU63143502 MOTOR ASSEMBLY,AC
AGM75369501 AGM75369501 PARTS ASSEMBLY
EBR77924212 EBR77924212 PCB ASSEMBLY,DISPLAY

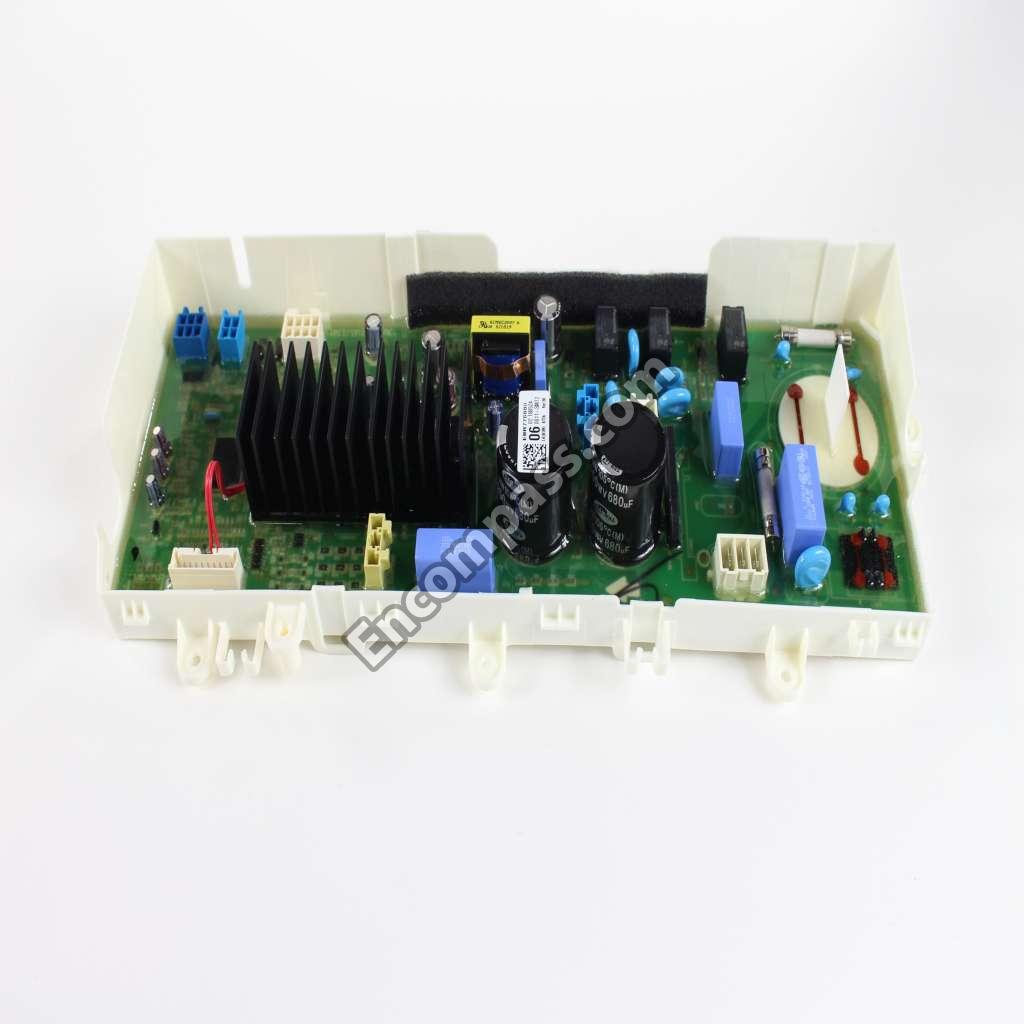

EBR77688006 EBR77688006 PCB ASSEMBLY,MAIN
AGM34418433 AGM34418433 POWER CORD ASSEMBLY
AHA74453902 AHA74453902 PUMP ASSEMBLY,DRAIN
AHC73715002 AHC73715002 RAIL ASSEMBLY
AHC73715102 AHC73715102 RAIL ASSEMBLY
AHJ73429901 AHJ73429901 ROLLER ASSEMBLY
AHL73894501 AHL73894501 ROTOR ASSEMBLY

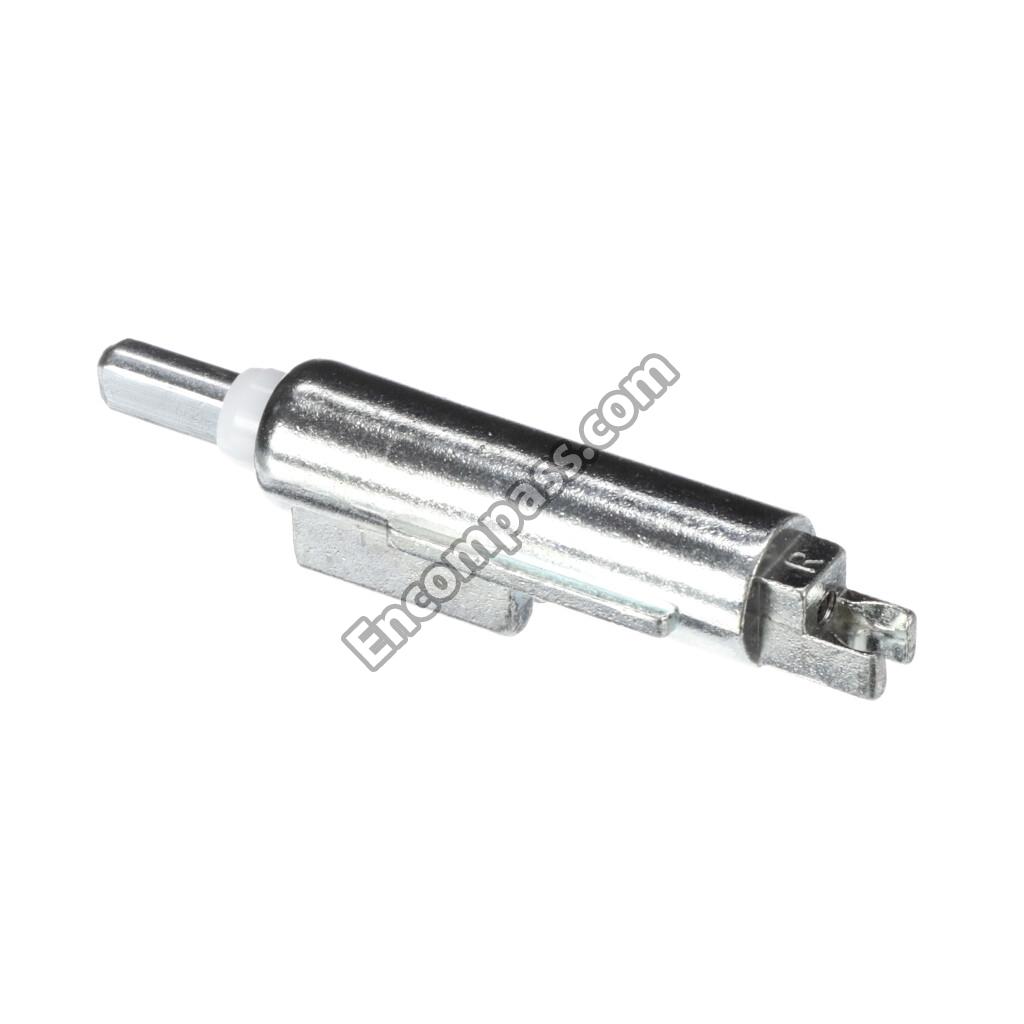

MHJ63195401 MHJ63195401 SHAFT,ROLLER
AJB73816003 AJB73816003 STATOR ASSEMBLY
MJH40343902 MJH40343902 SUPPORTER,LEG
MJH40343701 MJH40343701 SUPPORTER,LEG
MJH40343501 MJH40343501 SUPPORTER,LEG

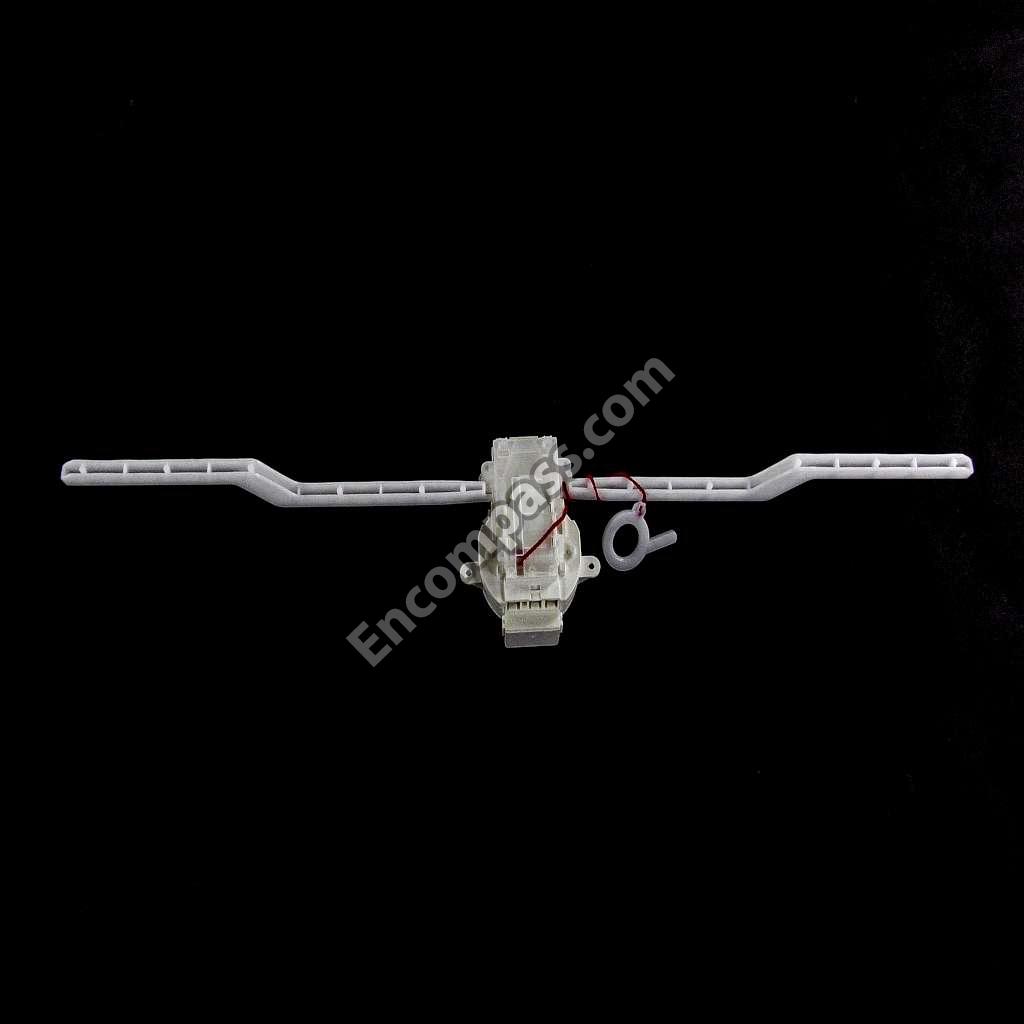

EBF62495001 EBF62495001 SWITCH ASSEMBLY
6601ER1006A 6601ER1006A SWITCH ASSEMBLY,PRESSURE
6323ER2001C 6323ER2001C THERMISTOR ASSEMBLY
AJQ74094102 AJQ74094102 TUB ASSEMBLY,INNER
AJQ74094002 AJQ74094002 TUB ASSEMBLY,OUTER
AJU75052603 AJU75052603 VALVE ASSEMBLY,INLET
AJU75052601 AJU75052601 VALVE ASSEMBLY,INLET
