Model Image
Manufacturer

LG

Model Number

WD300CL

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AAA36585236 AAA36585236 ACCESSORY ASSEMBLY
AAA76555332 AAA76555332 ACCESSORY ASSEMBLY
MAH62121501 MAH62121501 BALL
4040FR4051C 4040FR4051C BOLT ASSEMBLY
MBG65362601 MBG65362601 BUTTON,POWER SWITCH
MBL67498602 MBL67498602 CAP,COVER
5006ER3009A 5006ER3009A CAP,DRAIN HOSE
MBL67498702 MBL67498702 CAP,SOFTENER
3W40106M 3W40106M CLAMP,HOSE
ACJ73730110 ACJ73730110 CONNECTOR ASSEMBLY
MCD64266801 MCD64266801 CONNECTOR,HOSE
ACQ30421912 ACQ30421912 COVER ASSEMBLY,FRONT
ACQ87672402 ACQ87672402 COVER ASSEMBLY,REAR
ACQ90074011 ACQ90074011 COVER ASSEMBLY,TOP
ACQ88676203 ACQ88676203 COVER ASSEMBLY,TUB
MCK71555606 MCK71555606 COVER,FRONT
MCK70144501 MCK70144501 COVER,LOWER
MCK69073401 MCK69073401 COVER,LOWER
MCK65833301 MCK65833301 COVER,PROTECT
MCK69049201 MCK69049201 COVER,PROTECT
MCK68354301 MCK68354301 COVER,TOP
MCK69764911 MCK69764911 COVER,TOP
MCK69884808 MCK69884808 COVER,WATER INLET
ACV74130003 ACV74130003 DAMPER ASSEMBLY,FRICTION
ACV74130103 ACV74130103 DAMPER ASSEMBLY,FRICTION
EBR33819103 EBR33819103 DISPLAY CONTROL BOARD
ADV74311238 ADV74311238 FRAME ASSEMBLY
MDS66250801 MDS66250801 GASKET
AEC75951401 AEC75951401 GUIDE ASSEMBLY
MEA66361701 MEA66361701 GUIDE,COVER
MEB65423805 MEB65423805 HANDLE
EAD63105216 EAD63105216 HARNESS,MULTI
EAD63146406 EAD63146406 HARNESS,SINGLE
EAD63146217 EAD63146217 HARNESS,SINGLE
EAD63105304 EAD63105304 HARNESS,SINGLE
EAD63146306 EAD63146306 HARNESS,SINGLE
EAD63146304 EAD63146304 HARNESS,SINGLE
MEG64459901 MEG64459901 HOLDER,LOCK
MEJ63165005 MEJ63165005 HOSE,CONNECTOR
MEJ63165201 MEJ63165201 HOSE,CONNECTOR
MEJ63165002 MEJ63165002 HOSE,CONNECTOR
MEJ63184907 MEJ63184907 HOSE,DRAIN
MEJ63184701 MEJ63184701 HOSE,INLET
MEJ63184601 MEJ63184601 HOSE,INLET
MEJ62884704 MEJ62884704 HOSE,PUMP
MEK64186501 MEK64186501 HOUSING,DETERGENT
MEK64186701 MEK64186701 HOUSING,DETERGENT
AFC72755404 AFC72755404 LEG ASSEMBLY
AFC72755409 AFC72755409 LEG ASSEMBLY
AFG73409702 AFG73409702 LID ASSEMBLY
EBR88858302 EBR88858302 MAIN BOARD
6411EL1001H 6411EL1001H POWER CORD ASSEMBLY
AHA76133401 AHA76133401 PUMP ASSEMBLY,DRAIN
AHJ73429901 AHJ73429901 ROLLER ASSEMBLY
AHL73894501 AHL73894501 ROTOR ASSEMBLY
MHJ63195401 MHJ63195401 SHAFT,ROLLER
MHK65865415 MHK65865415 SHEET,DISPLAY
MHK65865416 MHK65865416 SHEET,DISPLAY
MHS62282302 MHS62282302 SLIDER
MHS62282402 MHS62282402 SLIDER
AGM75369521 AGM75369521 SLIDER,PARTS ASSEMBLY,SVC
AGM75369520 AGM75369520 SLIDER,PARTS ASSEMBLY,SVC
EBE62081601 EBE62081601 SOLENOID ASSEMBLY
AJB73816003 AJB73816003 STATOR ASSEMBLY
MJH40343501 MJH40343501 SUPPORTER,LEG
MJH40343701 MJH40343701 SUPPORTER,LEG
MJH40343901 MJH40343901 SUPPORTER,LEG
AGM75369501 AGM75369501 SUSPENSION ROD KIT,PARTS ASSEMBLY,SVC
EBF62495001 EBF62495001 SWITCH ASSEMBLY
EBF64561201 EBF64561201 SWITCH ASSEMBLY
EBF63534901 EBF63534901 SWITCH ASSEMBLY,PRESSURE
6323ER2001C 6323ER2001C THERMISTOR ASSEMBLY
6323EL2001G 6323EL2001G THERMISTOR,NTC
AJQ74094102 AJQ74094102 TUB ASSEMBLY,INNER
MJX64351401 MJX64351401 VALVE,CHECK
MAR62262001 MAR62262001 WASHER DOOR BELLOWS
MAR62261901 MAR62261901 WASHER DOOR BELLOWS
MAR62262101 MAR62262101 WASHER DOOR BELLOWS
MAR62482101 MAR62482101 WASHER DOOR BELLOWS
AJQ74094007 AJQ74094007 WASHER OUTER TUB
5220FR1280P 5220FR1280P WATER INLET VALVE
AJU75052601 AJU75052601 WATER INLET VALVE

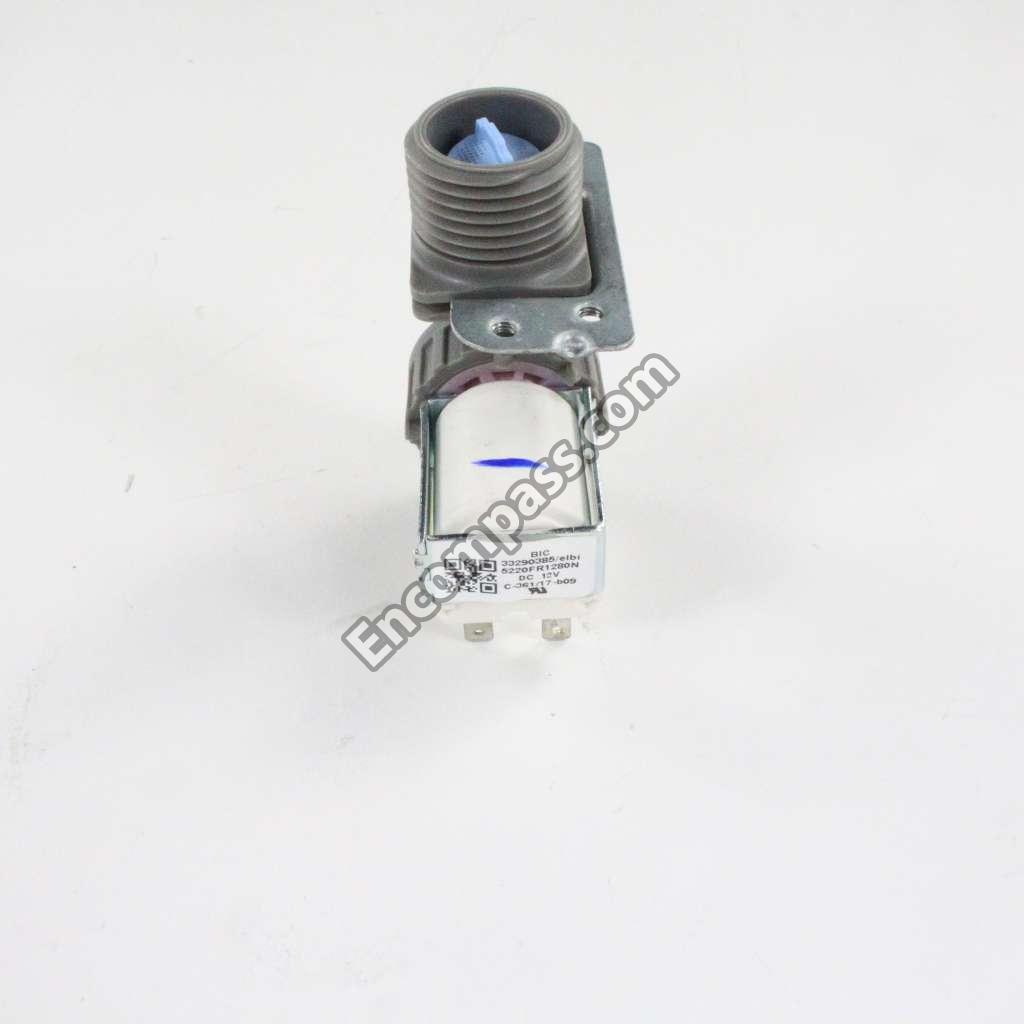

5220FR1280N 5220FR1280N WATER INLET VALVE
MKC67480003 MKC67480003 WINDOW,DISPLAY
