Model Image
Manufacturer

LG

Model Number

WDEK9419S

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AAA76709921 AAA76709921 ACCESSORY ASSEMBLY,CAVITY
MAL47168001 MAL47168001 BARRIER
MAL48432602 MAL48432602 BARRIER
MAL41753602 MAL41753602 BARRIER
MAL48432601 MAL48432601 BARRIER
MAZ41753503 MAZ41753503 BRACKET,CONTROL PANEL
MAZ64603202 MAZ64603202 BRACKET,HINGE
MAZ64603204 MAZ64603204 BRACKET,HINGE
MAZ48427301 MAZ48427301 BRACKET,HINGE
MAZ47170702 MAZ47170702 BRACKET,IDLE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ40417401 MAZ40417401 BRACKET,MOTOR
MAZ47162501 MAZ47162501 BRACKET,MOUNT
MAZ55266201 MAZ55266201 BRACKET,MOUNT
MAZ67171601 MAZ67171601 BRACKET,MOUNT
5006841001A 5006841001A CAP,PROTECTOR
MBR40415301 MBR40415301 CHAMBER
MCD65158001 MCD65158001 CONNECTOR,HOSE
6640000045A 6640000045A CONNECTOR,TERMINAL BLOCK
EBR80595801 EBR80595801 CONTROL BOARD
EBR89829201 EBR89829201 CONTROL BOARD
EBR89265801 EBR89265801 CONTROL BOARD
EBR80327002 EBR80327002 CONTROL BOARD,OPTION
EBR84439901 EBR84439901 CONTROL BOARD,OPTION
EBR76332902 EBR76332902 CONTROL BOARD,OPTION
EBR86322701 EBR86322701 CONTROL BOARD,WIFI
ACM76206713 ACM76206713 CONTROLLER ASSEMBLY,SUB
ACM76038805 ACM76038805 CONTROLLER ASSEMBLY,SUB
AGM75009024 AGM75009024 CONTROLLER,PARTS ASSEMBLY,SVC
ACQ91598012 ACQ91598012 COVER ASSEMBLY,FRONT
ACQ91598010 ACQ91598010 COVER ASSEMBLY,FRONT
ACQ91598001 ACQ91598001 COVER ASSEMBLY,FRONT
MCK68473119 MCK68473119 COVER,HEATER
MCK68473102 MCK68473102 COVER,HEATER
MCK40417601 MCK40417601 COVER,INNER
MCK47161201 MCK47161201 COVER,INNER
AGM30022501 AGM30022501 COVER,PARTS ASSEMBLY,SVC
MCK40420102 MCK40420102 COVER,REAR
MCK40423201 MCK40423201 COVER,TOP
MCK71155802 MCK71155802 COVER,TOP
MCK71763801 MCK71763801 COVER,TOP
MCK41753701 MCK41753701 COVER,TOP
MCK41754101 MCK41754101 COVER,TOP
MCK40423001 MCK40423001 COVER,TOP
MCK71156001 MCK71156001 COVER,VENT
MCK71751201 MCK71751201 COVER,VENT
MCK40416601 MCK40416601 COVER,VENT
MCR68431102 MCR68431102 DECOR,VENT
ADJ52698704 ADJ52698704 DUCT ASSEMBLY
ADP75673301 ADP75673301 FAN ASSEMBLY
5901W1E002G 5901W1E002G FAN ASSEMBLY
5900W1N004B 5900W1N004B FAN,CONVECTION
ADV34868811 ADV34868811 FRAME ASSEMBLY,DOOR
ADV34868803 ADV34868803 FRAME ASSEMBLY,DOOR
MDX40418807 MDX40418807 GRILLE
MDX40418802 MDX40418802 GRILLE
MDX40418602 MDX40418602 GRILLE
AEC74717401 AEC74717401 GUIDE ASSEMBLY,AIR
MEA66151001 MEA66151001 GUIDE,AIR
MEA66386601 MEA66386601 GUIDE,AIR
MEB63614004 MEB63614004 HANDLE,DOOR
MEB63614002 MEB63614002 HANDLE,DOOR

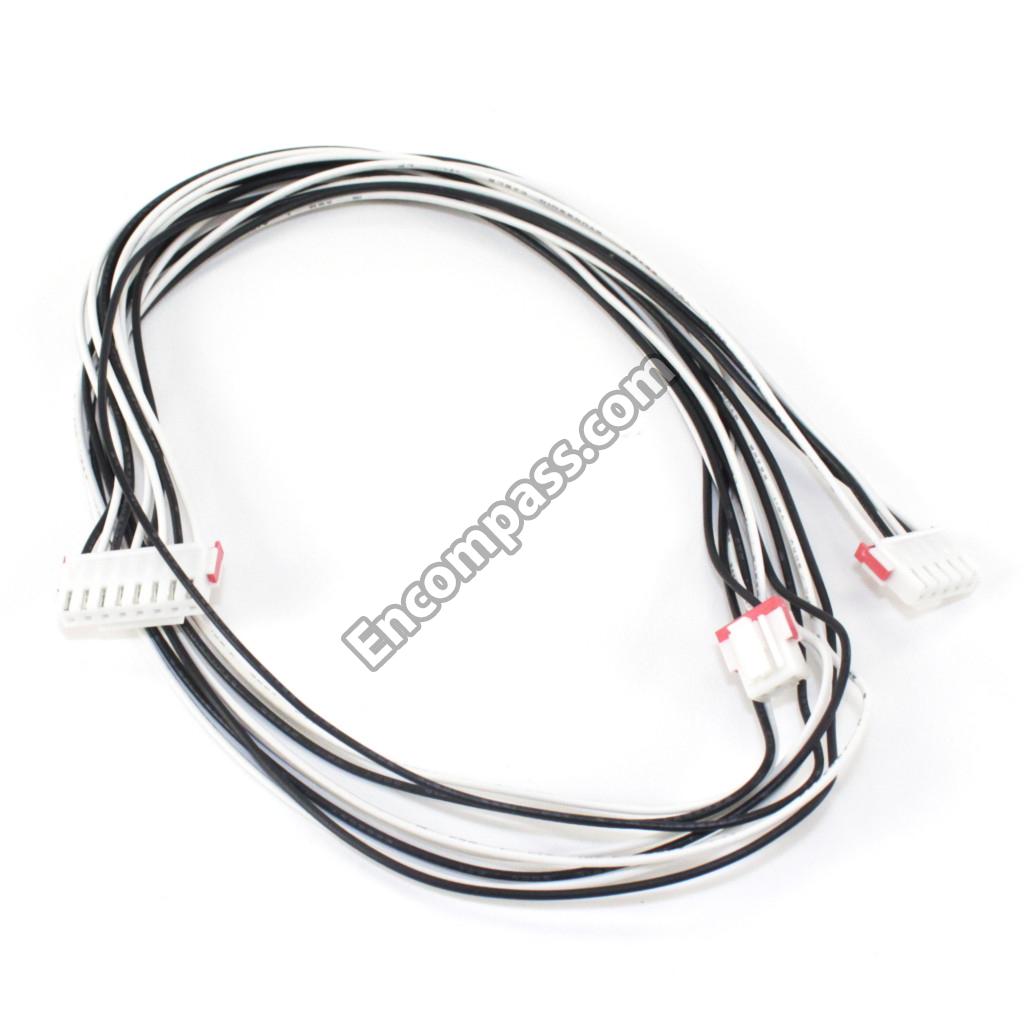

EAD64565318 EAD64565318 HARNESS,SINGLE
EAD62349810 EAD62349810 HARNESS,SINGLE
EAD62349806 EAD62349806 HARNESS,SINGLE
EAD62349805 EAD62349805 HARNESS,SINGLE
EAD51439003 EAD51439003 HARNESS,SINGLE
EAD64565317 EAD64565317 HARNESS,SINGLE
EAD34822965 EAD34822965 HARNESS,SINGLE
EAD63009007 EAD63009007 HARNESS,SINGLE
EAD63009006 EAD63009006 HARNESS,SINGLE
EAD51438708 EAD51438708 HARNESS,SINGLE
AEG74450009 AEG74450009 HEATER ASSEMBLY
AEG74450004 AEG74450004 HEATER ASSEMBLY
MEE61925405 MEE61925405 HEATER,SHEATH
MEE61925402 MEE61925402 HEATER,SHEATH
MEE61925406 MEE61925406 HEATER,SHEATH
MEE41716802 MEE41716802 HEATER,SHEATH
MEE41716501 MEE41716501 HEATER,SHEATH
AEH75637204 AEH75637204 HINGE ASSEMBLY
AEH75637224 AEH75637224 HINGE ASSEMBLY
AEH75637202 AEH75637202 HINGE ASSEMBLY
AEH75637223 AEH75637223 HINGE ASSEMBLY
AEN74551402 AEN74551402 HOUSING ASSEMBLY,WATER
4681W1N002B 4681W1N002B HOUSING,MOTOR
MEV63330702 MEV63330702 INSULATOR
MEV42726401 MEV42726401 INSULATOR
MEV40415402 MEV40415402 INSULATOR
MEV40415801 MEV40415801 INSULATOR
MEV40416111 MEV40416111 INSULATOR
MEV40416102 MEV40416102 INSULATOR
EAG43128001 EAG43128001 JACK,DC POWER
AEZ74113401 AEZ74113401 KNOB ASSEMBLY
MEY63473803 MEY63473803 KNOB,CONTROL
EAQ43128703 EAQ43128703 LAMP,HALOGEN
EBR30056101 EBR30056101 MAIN BOARD
EAU43957805 EAU43957805 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU43957801 EAU43957801 MOTOR ASSEMBLY,AC,SYNCHRONOUS
1NHB0500032 1NHB0500032 NUT,COMMON
1NZZW1N002A 1NZZW1N002A NUT,CUSTOMIZED

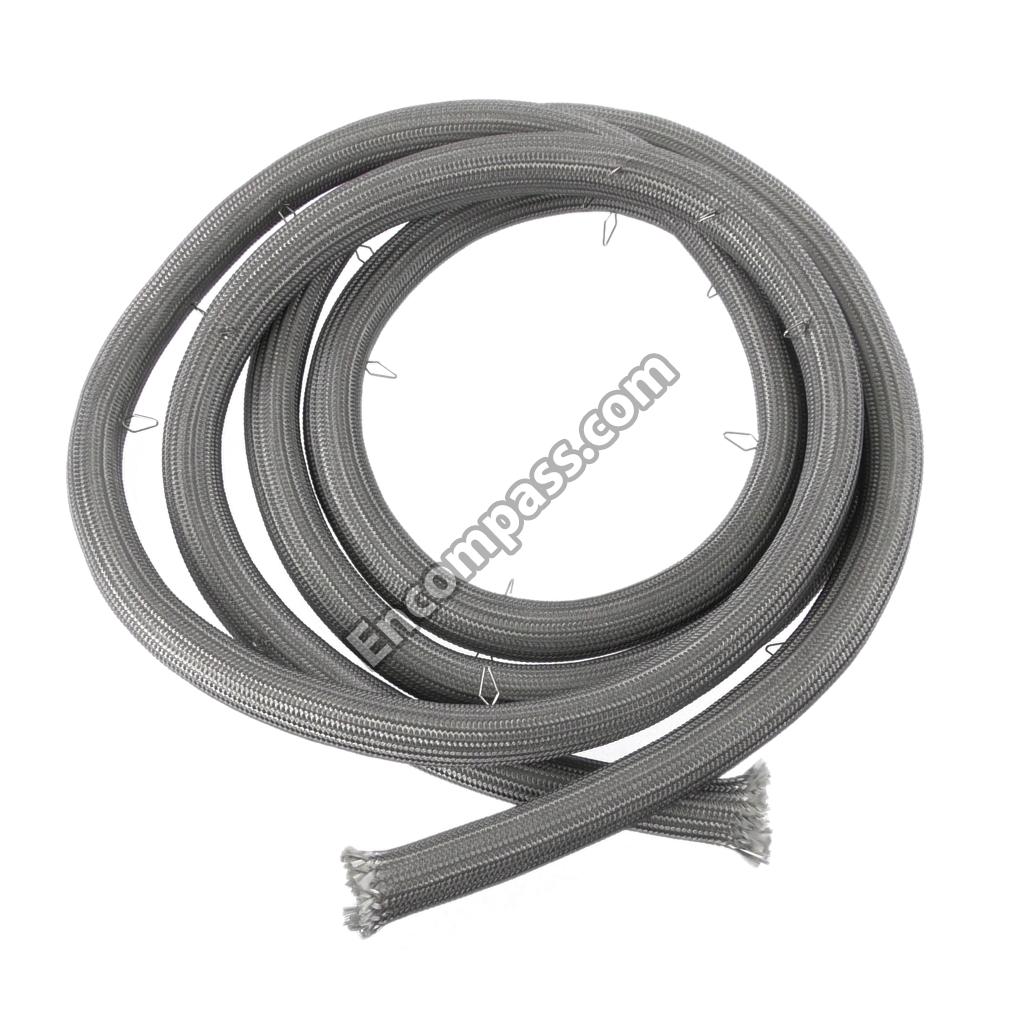

MFZ54382601 MFZ54382601 PACKING,GASKET
MFZ40418403 MFZ40418403 PACKING,GASKET
MFZ40418402 MFZ40418402 PACKING,GASKET
AGU56000302 AGU56000302 PLATE ASSEMBLY,BASE
EAD42825105 EAD42825105 POWER CORD ASSEMBLY
MGQ62542301 MGQ62542301 PUMP
MGZ63607001 MGZ63607001 RING
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1SZZW5N001D 1SZZW5N001D SCREW,CUSTOMIZED
1ATF0502610 1ATF0502610 SCREW,TAPTITE
EBD51431001 EBD51431001 SENSOR,TEMPERATURE
MHL49207704 MHL49207704 SHELF
MHL49207701 MHL49207701 SHELF
AAA59301503 AAA59301503 SHELF ASSEMBLY
MHY64083701 MHY64083701 SPRING
MHY64023901 MHY64023901 SPRING,COIL
MJH55321603 MJH55321603 SUPPORTER
MJH55321602 MJH55321602 SUPPORTER
MJH55321601 MJH55321601 SUPPORTER
MJH63756902 MJH63756902 SUPPORTER
MJH40420202 MJH40420202 SUPPORTER
MJH40420201 MJH40420201 SUPPORTER
MJH63756901 MJH63756901 SUPPORTER
4980W1N013A 4980W1N013A SUPPORTER
AJJ75678723 AJJ75678723 SUPPORTER ASSEMBLY,PCB
MJH65513101 MJH65513101 SUPPORTER,HANDLE
MJH41754001 MJH41754001 SUPPORTER,PCB
MJH66392001 MJH66392001 SUPPORTER,PCB
MJH63756801 MJH63756801 SUPPORTER,PCB
MJH63974001 MJH63974001 SUPPORTER,PCB
EBF60663403 EBF60663403 SWITCH,TACT
EBF60663404 EBF60663404 SWITCH,TACT
AJL74692007 AJL74692007 TANK ASSEMBLY,WATER
EBG61305805 EBG61305805 THERMISTOR,PTC

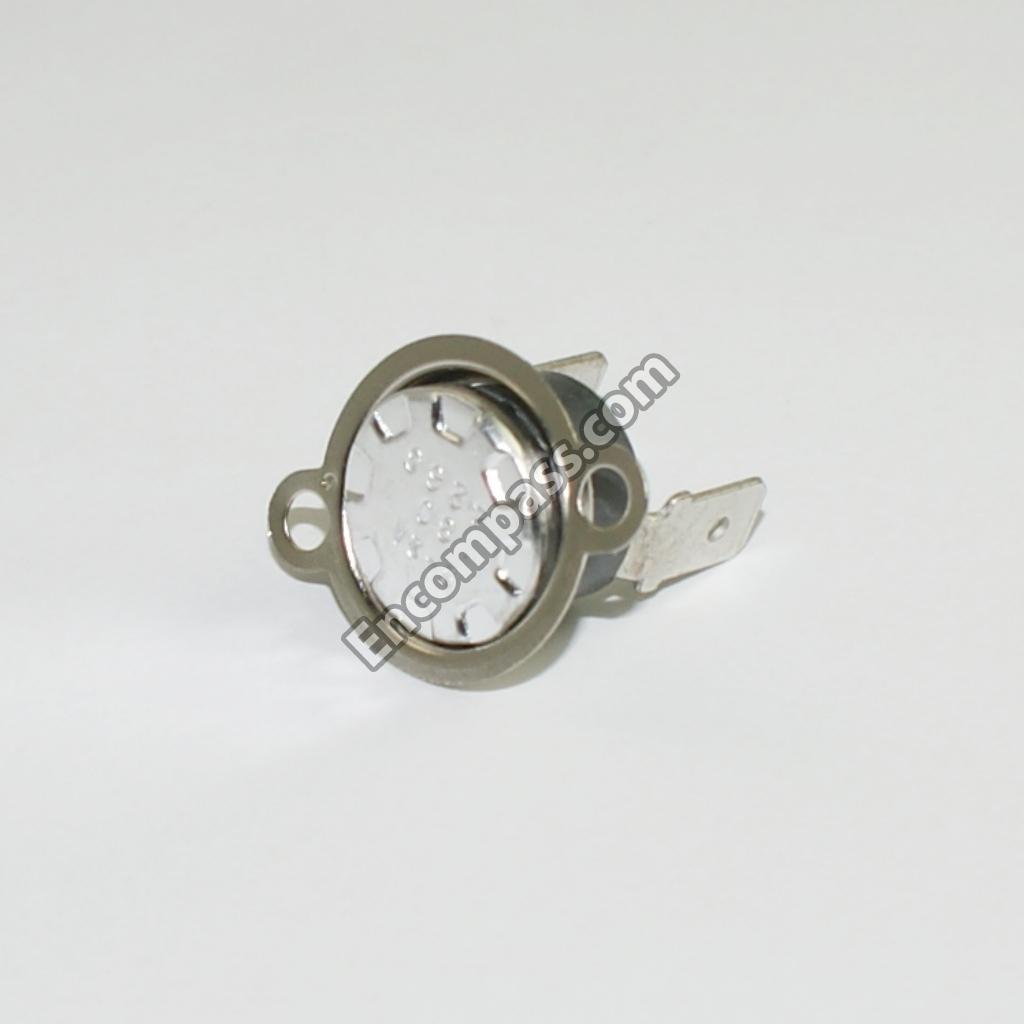

6930W1A003K 6930W1A003K THERMOSTAT
EBG51439303 EBG51439303 THERMOSTAT
6930W1A003D 6930W1A003D THERMOSTAT
MJS61849903 MJS61849903 TRAY,METAL
MJS61850003 MJS61850003 TRAY,METAL
MJU65727804 MJU65727804 TUBE
MJZ41753802 MJZ41753802 VENT
AJV56083902 AJV56083902 VENT ASSEMBLY
1WZZW3Z003C 1WZZW3Z003C WASHER,CUSTOMIZED
1WZZW3Z003E 1WZZW3Z003E WASHER,CUSTOMIZED
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
4890W1N005A 4890W1N005A WINDOW,GLASS
