Model Image
Manufacturer

LG

Model Number

WG5000

Description

Wg5000

Interactive Exploded View

Parts List

Part Number Description
4681A10012B 4681A10012B AC MOTOR ASSEMBLY [346811]
3041A10011E 3041A10011E BASE ASSEMBLY,SINGLE [130410]
3091A10020D 3091A10020D CABINET ASSEMBLY,SINGLE [130910]
0CZZA20001W 0CZZA20001W CAPACITOR,FILM,BOX [W0CZZ]
4995A20126A 4995A20126A CASE ASSEMBLY,CONTROL [249950]
3H02932B 3H02932B CLAMP,SPRING [W48602]
5416A20013M 5416A20013M COMPRESSOR [554160]
5403AR6200C 5403AR6200C CONDENSER ASSEMBLY,FIRST [554030]
3550A20026A 3550A20026A COVER [135500]
5421A10008B 5421A10008B EVAPORATOR ASSEMBLY,FIRST [354210]
5900A20017A 5900A20017A FAN,PROPELLER
5900A20005A 5900A20005A FAN,TURBO
5231AR2148A 5231AR2148A FILTER,AIR [152302]
3531AR1644A 3531AR1644A GRILLE ASSEMBLY,FRONT [135312]
3530AR1616A 3530AR1616A GRILLE ASSEMBLY,INLET [135313]
5239A10005A 5239A10005A GUIDE ASSEMBLY,AIR [352390]
5239A30003A 5239A30003A GUIDE ASSEMBLY,AIR [352390]
3127A20074B 3127A20074B INSTALL PART ASSEMBLY,SINGLE

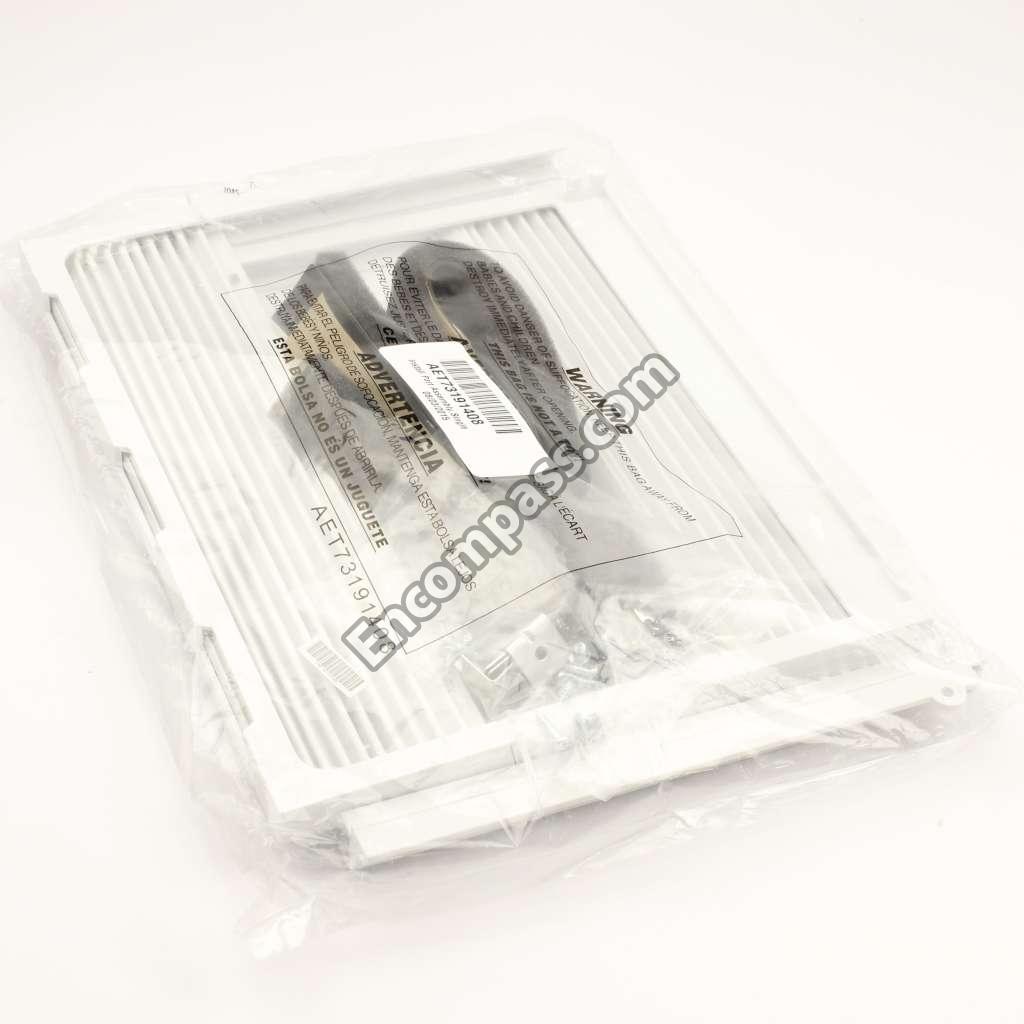

AET73191408 AET73191408 INSTALL PART ASSEMBLY,SINGLE [731273]
4941AR7315A 4941AR7315A KNOB ASSEMBLY [149410]
5990AR3190A 5990AR3190A LOUVER,VERTICAL [147582-1]
5990AR3190B 5990AR3190B LOUVER,VERTICAL [147582-2]
3828A20133A 3828A20133A MANUAL,OWNERS [738290]
3828A20038K 3828A20038K MANUAL,SERVICE [738281]
5040AR4195A 5040AR4195A MECHANICAL PART,UNCLASSIFIED [550140]
4948A10007A 4948A10007A ORIFICE [349480]
2H00677P 2H00677P POWER CORD
4998A10008A 4998A10008A SHROUD [149980]
4800A30003A 4800A30003A SUPPORTER [148000]
2H00154H 2H00154H SWITCH,ROTARY
2H01109L 2H01109L THERMOSTAT [269310]
5211AR3332V 5211AR3332V TUBE ASSEMBLY,CAPILLARY [552111]
5211A10063A 5211A10063A TUBE ASSEMBLY,EVAPORATOR(IN) [352115]
5211A10062A 5211A10062A TUBE ASSEMBLY,SUCTION [35211A]
5210A30018H 5210A30018H TUBE,BENDING [552102]
