Model Image
Manufacturer

LG

Model Number

WM3488HW

Description

2.3 Cu.ft. Compact All-in-one Washer/dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5215FD3715U 5215FD3715U ACCESSORY ASSEMBLY
4866ER1017F 4866ER1017F BALANCE WEIGHT
4866ER1018F 4866ER1018F BALANCE WEIGHT
3041ER0003C 3041ER0003C BASE ASSEMBLY,CABINET
MAP61913708 MAP61913708 BEARING,BALL
MAP61913707 MAP61913707 BEARING,BALL
4280EN4001C 4280EN4001C BEARING,BALL
4738ER2004A 4738ER2004A BELLOWS
MAR61842001 MAR61842001 BELLOWS
MAR61842101 MAR61842101 BELLOWS
MAR61882201 MAR61882201 BELLOWS
FAA30831001 FAA30831001 BOLT ASSEMBLY
FAA31690701 FAA31690701 BOLT ASSEMBLY
FAA31690702 FAA31690702 BOLT ASSEMBLY
4040FR4051C 4040FR4051C BOLT ASSY
4011FA4353C 4011FA4353C BOLT,DRAWING
4810ER3016A 4810ER3016A BRACKET,BASE
4810ER3017B 4810ER3017B BRACKET,HINGE
MAZ38811101 MAZ38811101 BRACKET,HINGE
4830FR3107A 4830FR3107A BUSHING
ABJ33846804 ABJ33846804 CABINET ASSEMBLY
5006ER3009A 5006ER3009A CAP,COVER
MBL38266706 MBL38266706 CAP,COVER
MBL39653601 MBL39653601 CAP,SOFTENER
3108ER1001A 3108ER1001A CASING,PUMP
5859ER1002M 5859ER1002M CASING,PUMP
3504FR3134A 3504FR3134A CHAMBER,AIR
4861FR3068C 4861FR3068C CLAMP
4861FR3068B 4861FR3068B CLAMP
5215EA4001D 5215EA4001D CLAMP
4860FR3092C 4860FR3092C CLAMP
4860ER3004A 4860ER3004A CLAMP
4861FR3068A 4861FR3068A CLAMP

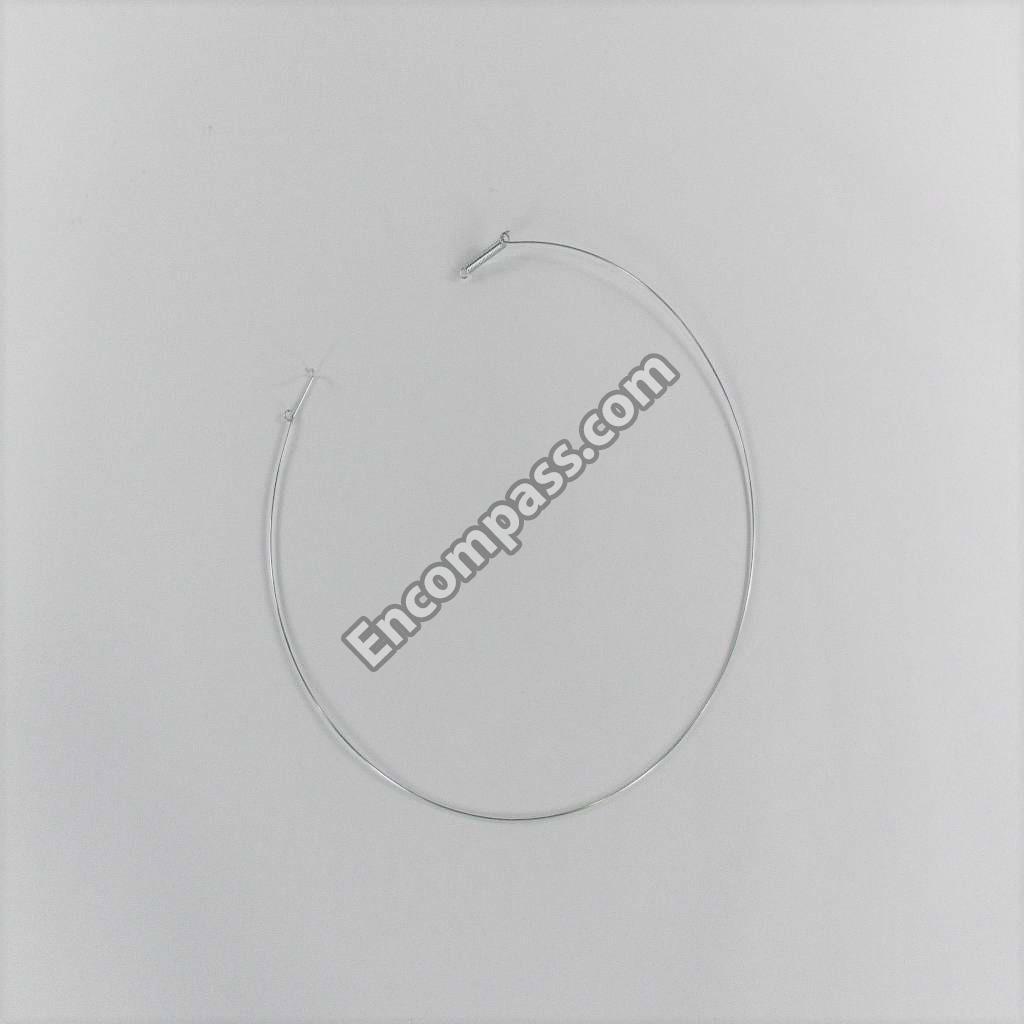

ACA72969501 ACA72969501 CLAMP ASSEMBLY
4861ER2001B 4861ER2001B CLAMP ASSEMBLY
4861EN3002A 4861EN3002A CLAMP ASSY

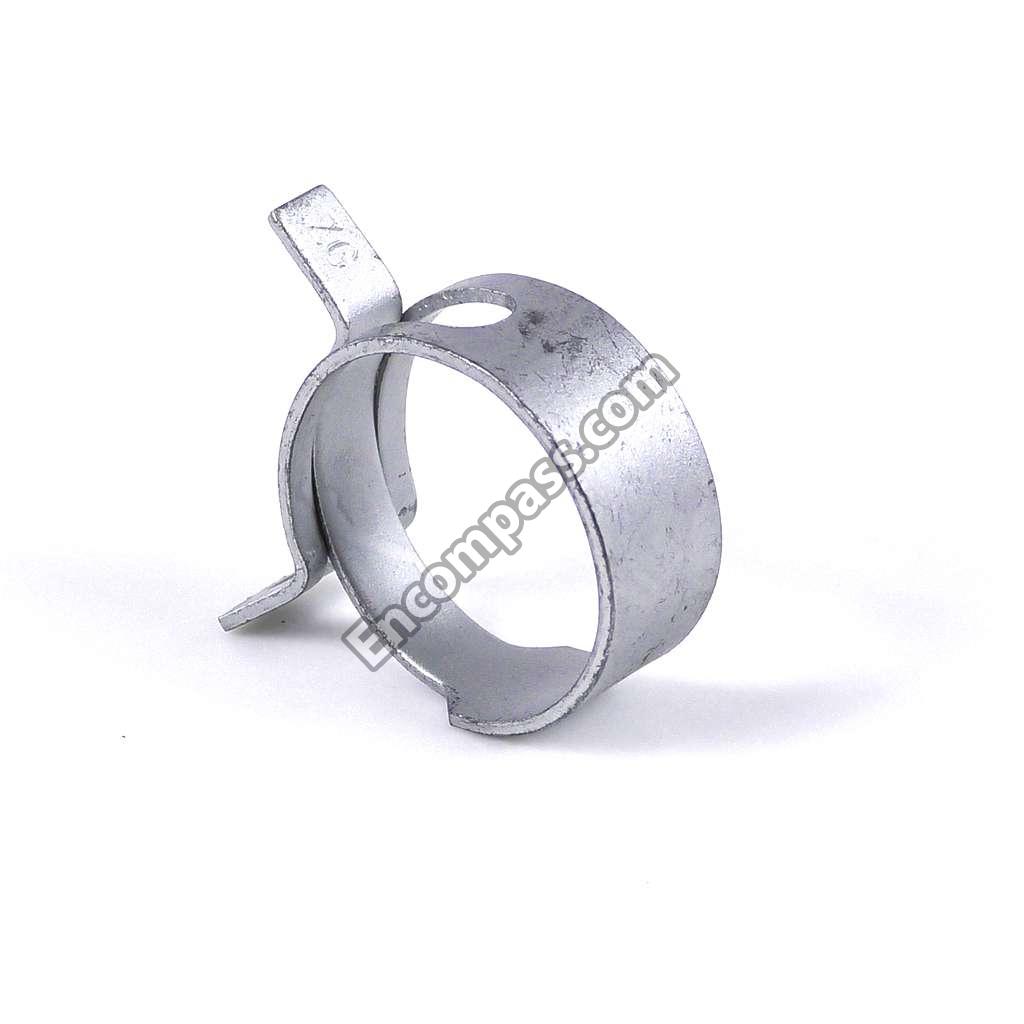

4861FR3068E 4861FR3068E CLAMP,HOSE
4861EN3003C 4861EN3003C CLAMP,HOSE
4932ER4007C 4932ER4007C CONNECTOR,HOSE
MCD30210501 MCD30210501 CONNECTOR,NOZZLE
3550ER1028H 3550ER1028H COVER,BACK
MCK55239001 MCK55239001 COVER,CABINET
MCK38266401 MCK38266401 COVER,LOWER
3550ER3011A 3550ER3011A COVER,PROTECT
MCK62175501 MCK62175501 COVER,PROTECTOR
MCK38263706 MCK38263706 COVER,TUB
383EER3001K 383EER3001K DAMPER,PARTS ASSEMBLY,SVC

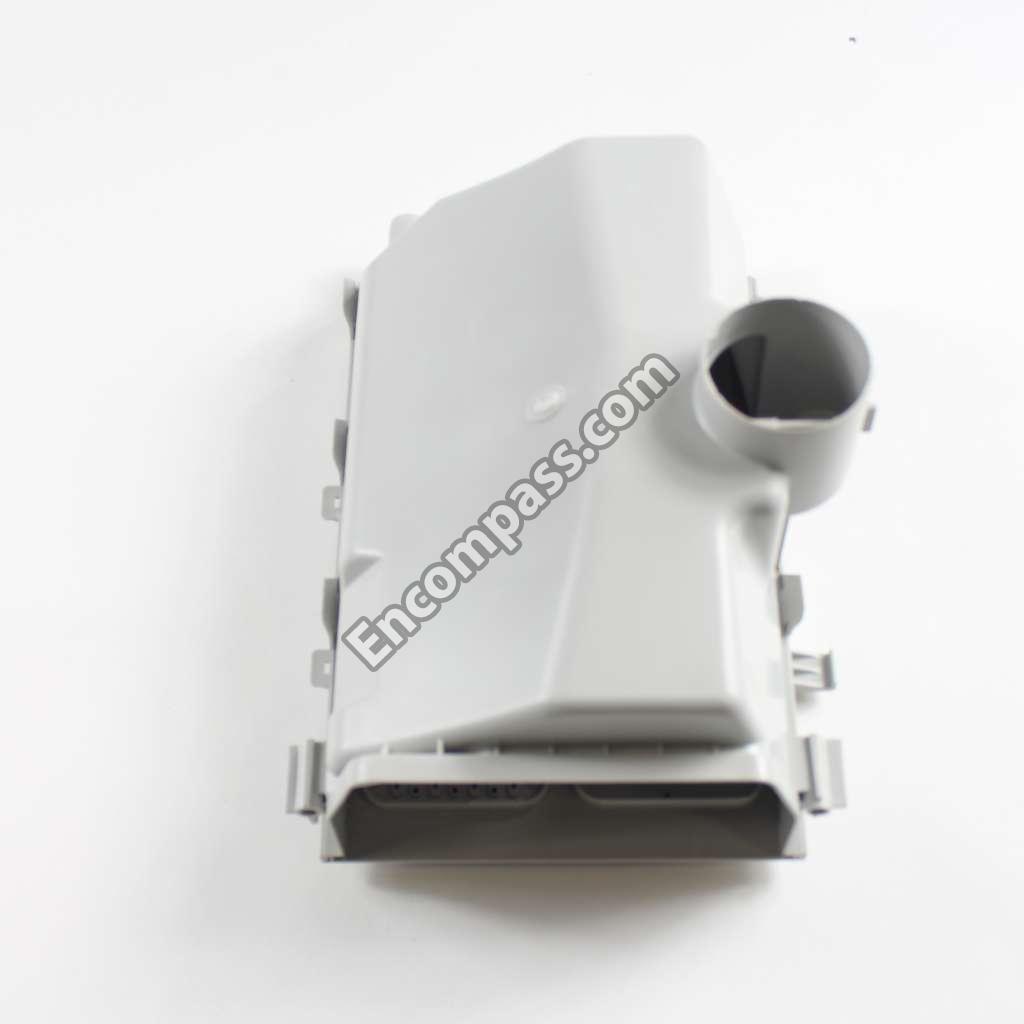

ACZ34745502 ACZ34745502 DISPENSER ASSEMBLY
ADC33666420 ADC33666420 DOOR ASSEMBLY
MCV38082402 MCV38082402 DOOR,GLASS

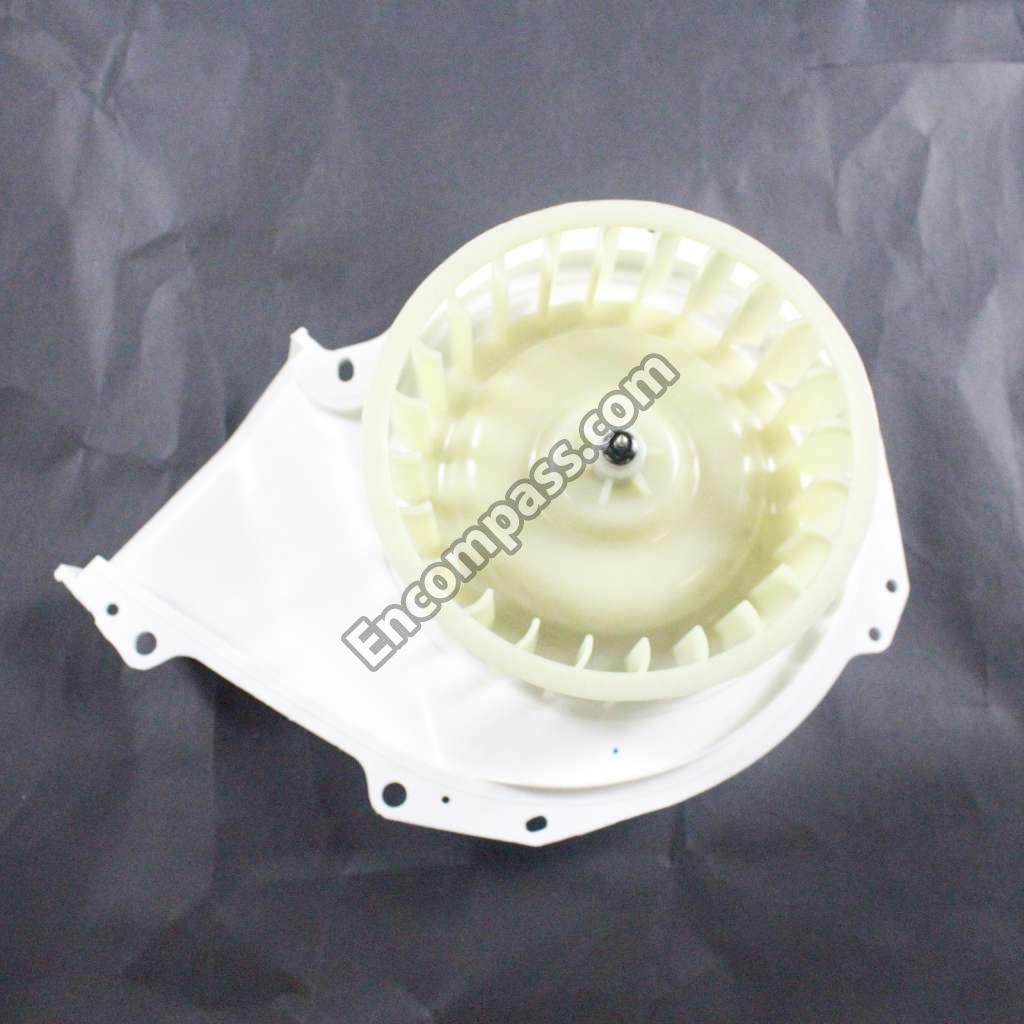

5209ER1002E 5209ER1002E DUCT ASSEMBLY

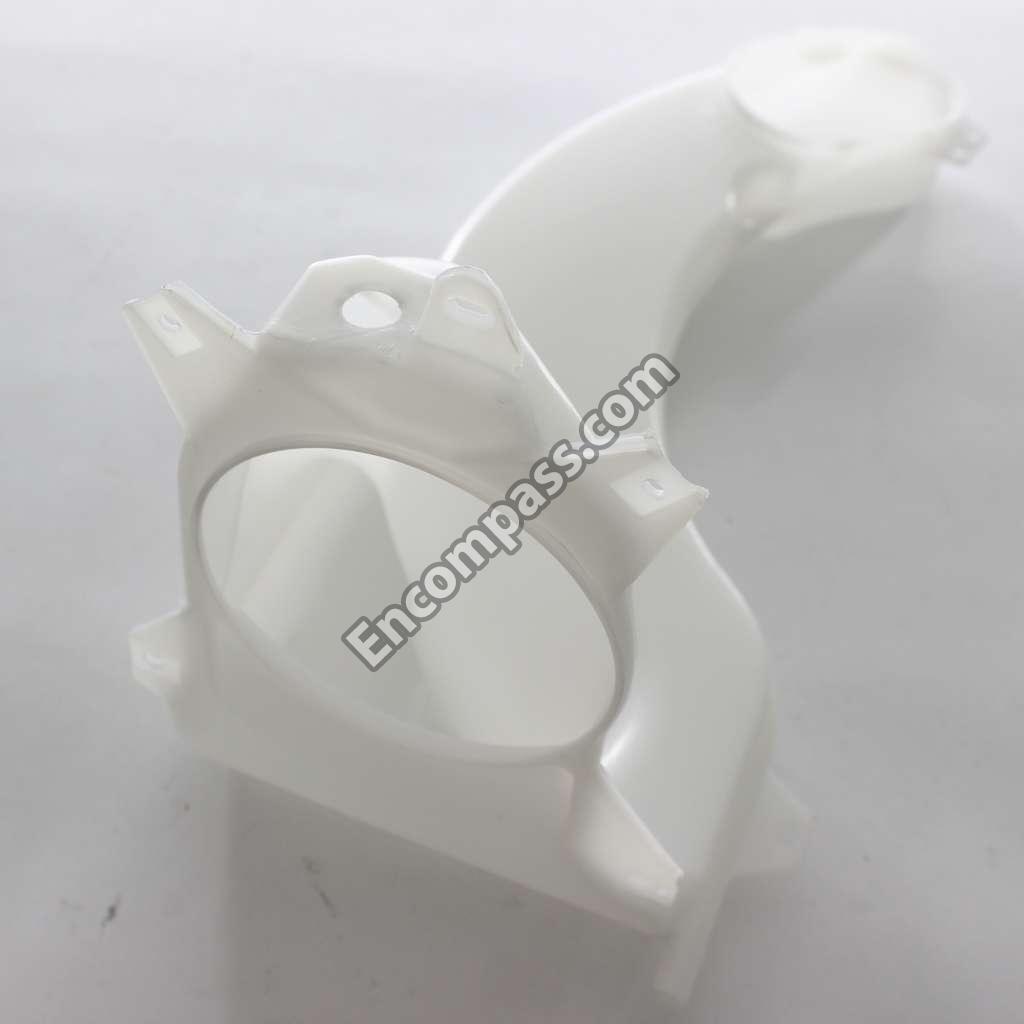

5208ER1004A 5208ER1004A DUCT,OUTLET
5208ER1006A 5208ER1006A DUCT,OUTLET
MCZ42683601 MCZ42683601 DUCT,OUTLET
383EER2001A 383EER2001A FILTER AND CAP ASSEMBLY
EAM62492313 EAM62492313 FILTER ASSEMBLY
MDQ61281001 MDQ61281001 FRAME,DOOR(INNER)
ADC69321501 ADC69321501 FRAME,DOOR(INNER)
MDQ61976901 MDQ61976901 FRAME,DOOR(OUTER)
6901ER4001A 6901ER4001A FUSE ASSEMBLY
MDS63939301 MDS63939301 GASKET
4036FR4043K 4036FR4043K GASKET
3W50712A 3W50712A HANGER
6877ER3003B 6877ER3003B HARNESS,MOTOR
EAD64247501 EAD64247501 HARNESS,MULTI
6877ER1052T 6877ER1052T HARNESS,MULTI
EAD61685451 EAD61685451 HARNESS,MULTI
5301FR2076G 5301FR2076G HEATER ASSEMBLY
AEG33121504 AEG33121504 HEATER ASSEMBLY
4774FR3118B 4774FR3118B HINGE
4774EN3002A 4774EN3002A HINGE
MEF38257802 MEF38257802 HINGE
MEG64919201 MEG64919201 HOLDER
4930ER3014A 4930ER3014A HOLDER
4930FR3040A 4930FR3040A HOLDER
4930ER4004A 4930ER4004A HOLDER
AEJ72909601 AEJ72909601 HOLDER ASSEMBLY
AEJ34755201 AEJ34755201 HOLDER ASSEMBLY

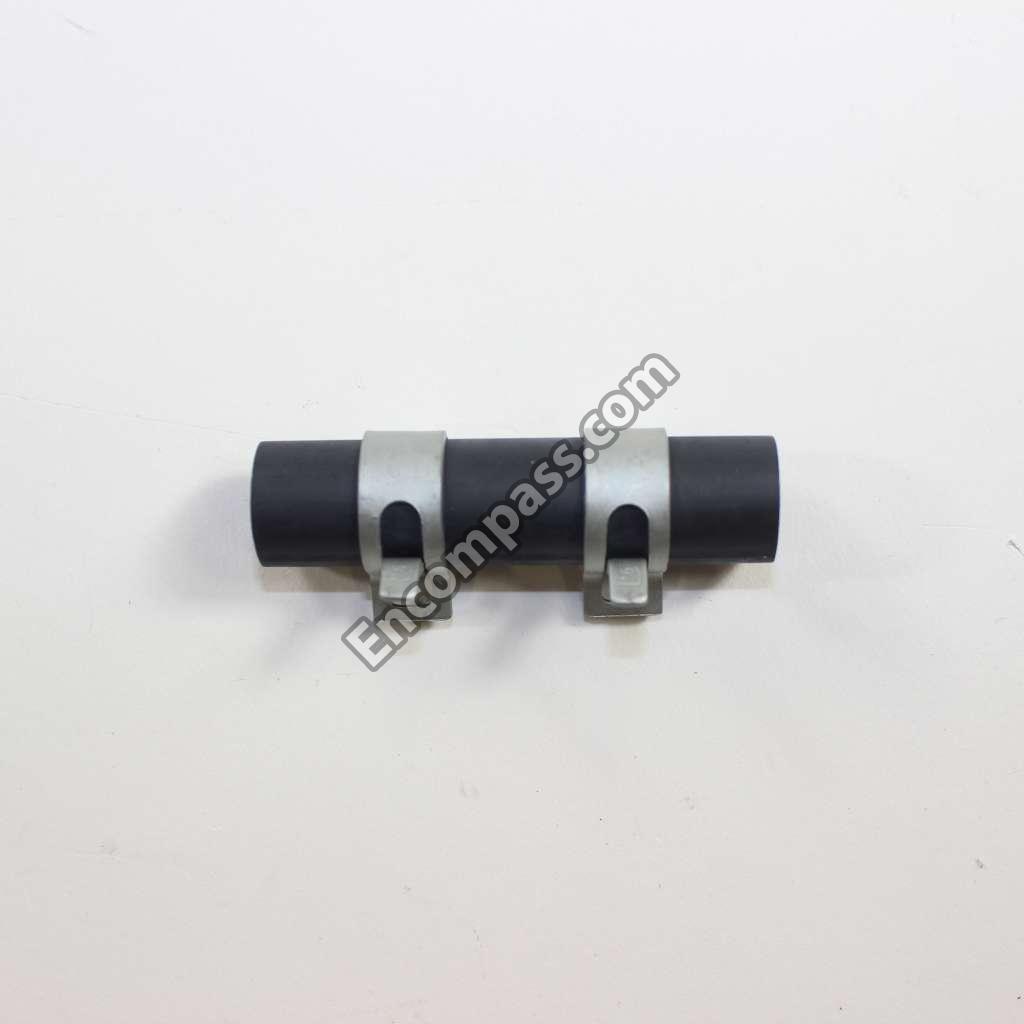

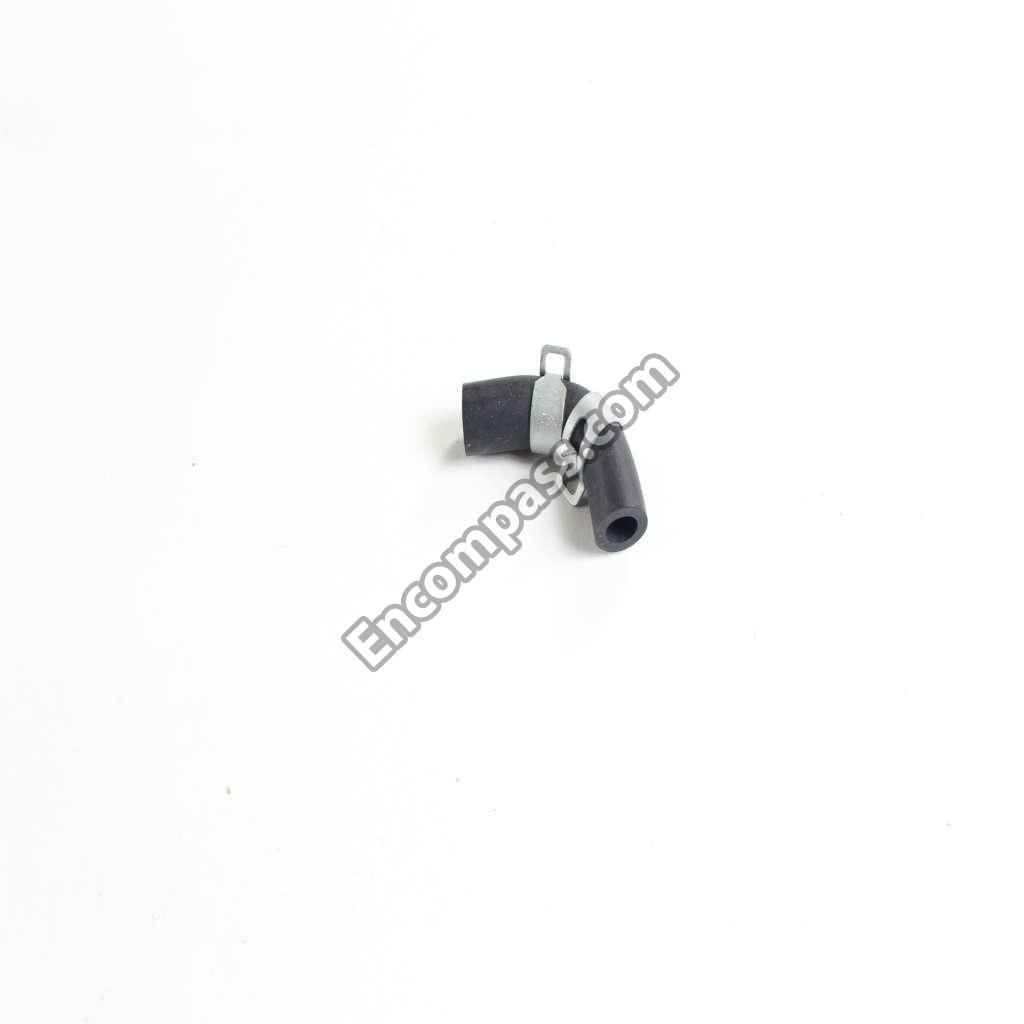

5214FR4058W 5214FR4058W HOSE,CONNECTOR
5214FR4058V 5214FR4058V HOSE,CONNECTOR
5214FR4006G 5214FR4006G HOSE,CONNECTOR
5215FD3715V 5215FD3715V HOSE,INLET
5214ER4003Q 5214ER4003Q HOSE,INLET
5214FR3046A 5214FR3046A HOSE,INLET
5214ER4003J 5214ER4003J HOSE,INLET
4036EN4001A 4036EN4001A HOSE,INLET
5214FR4125D 5214FR4125D HOSE,INLET
5214FR4125L 5214FR4125L HOSE,INLET
5214FA1146G 5214FA1146G HOSE,INLET

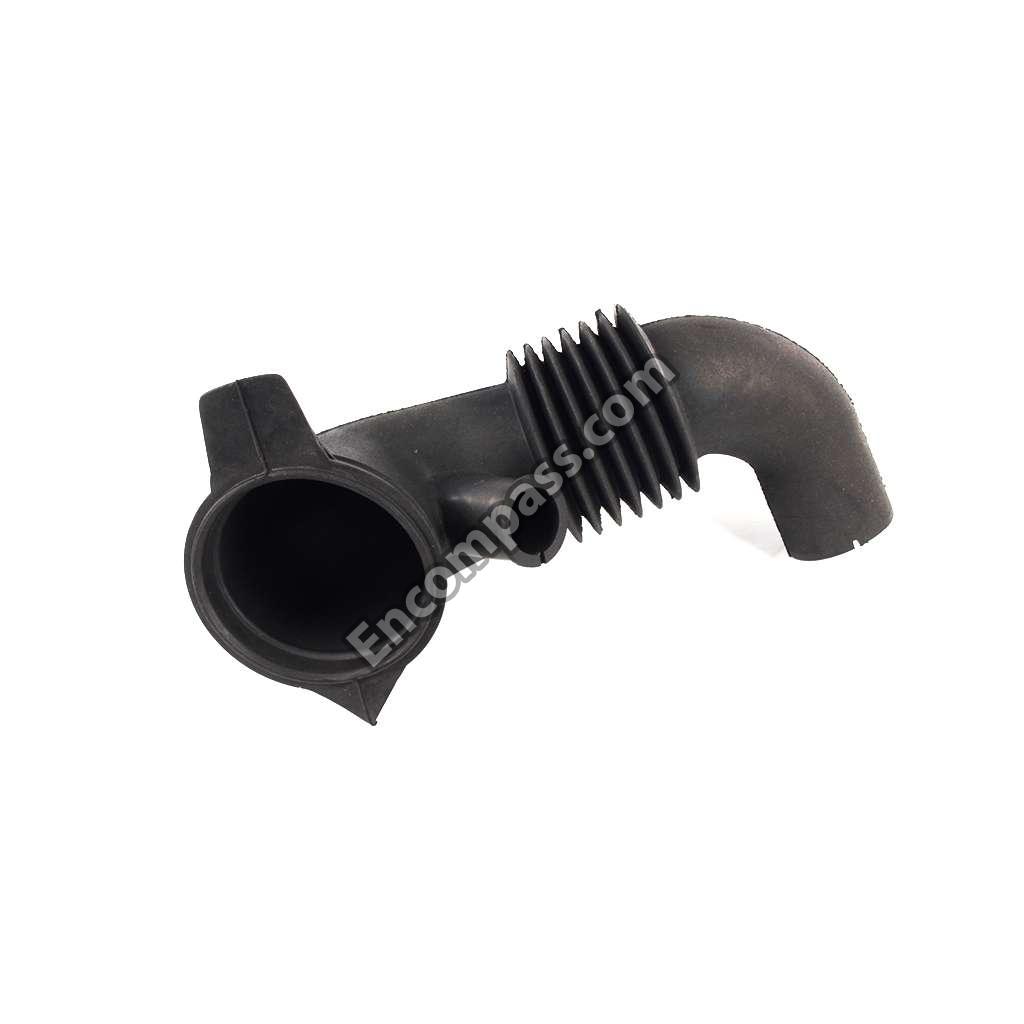

5214FR3188X 5214FR3188X HOSE,PUMP
5214FR3188G 5214FR3188G HOSE,PUMP
AEZ33665708 AEZ33665708 KNOB ASSEMBLY
3W20018B 3W20018B LEG ADJUSTING WRENCH
AFC72755401 AFC72755401 LEG ASSEMBLY
MFE38265101 MFE38265101 LIFTER
MFE57764501 MFE57764501 LIFTER
MFG62579002 MFG62579002 LOCKER,HOOK
MFG62579001 MFG62579001 LOCKER,HOOK
EAU61383506 EAU61383506 MOTOR ASSEMBLY,AC,PUMP
EAU37932704 EAU37932704 MOTOR ASSEMBLY,DC,FAN
4681ER1007A 4681ER1007A MOTOR ASSEMBLY,DC,FAN
4681EA2001T 4681EA2001T MOTOR ASSY,PUMP

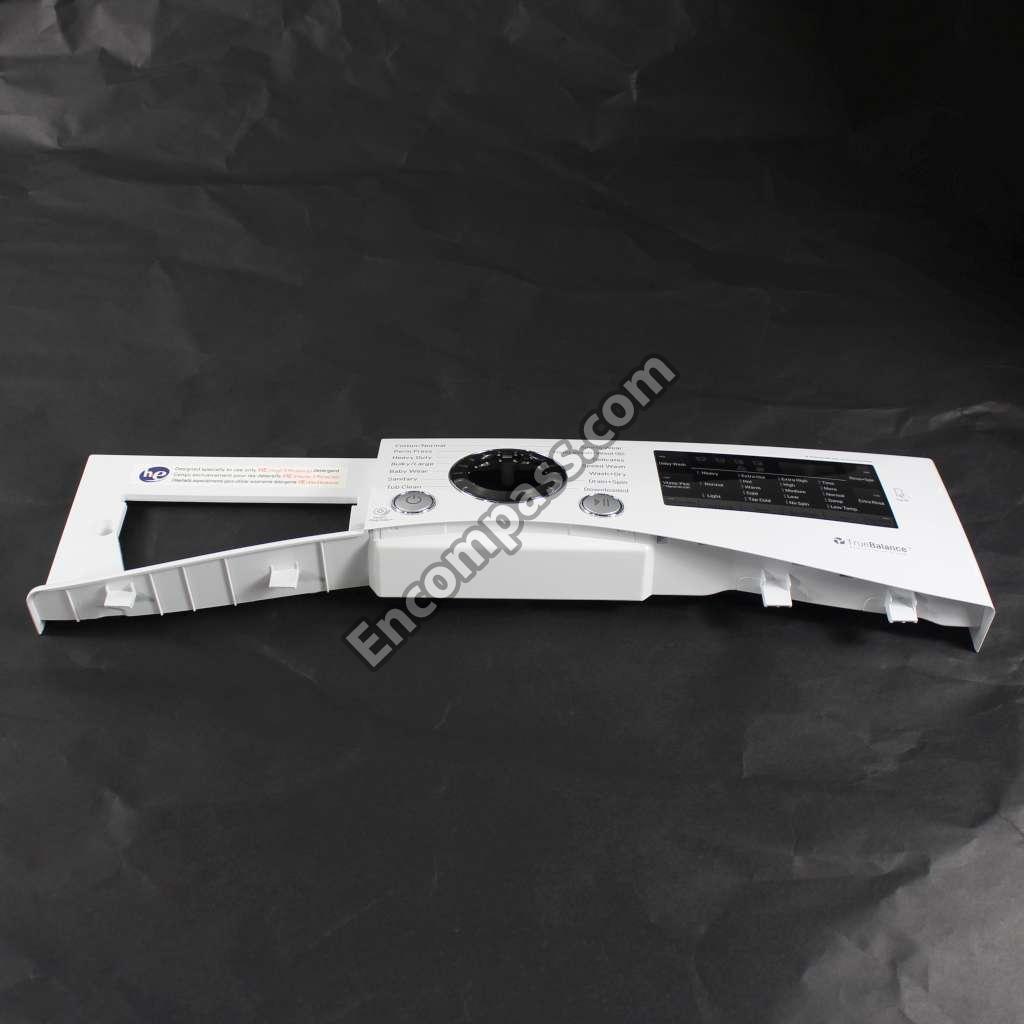

AGL74236276 AGL74236276 PANEL ASSEMBLY,CONTROL

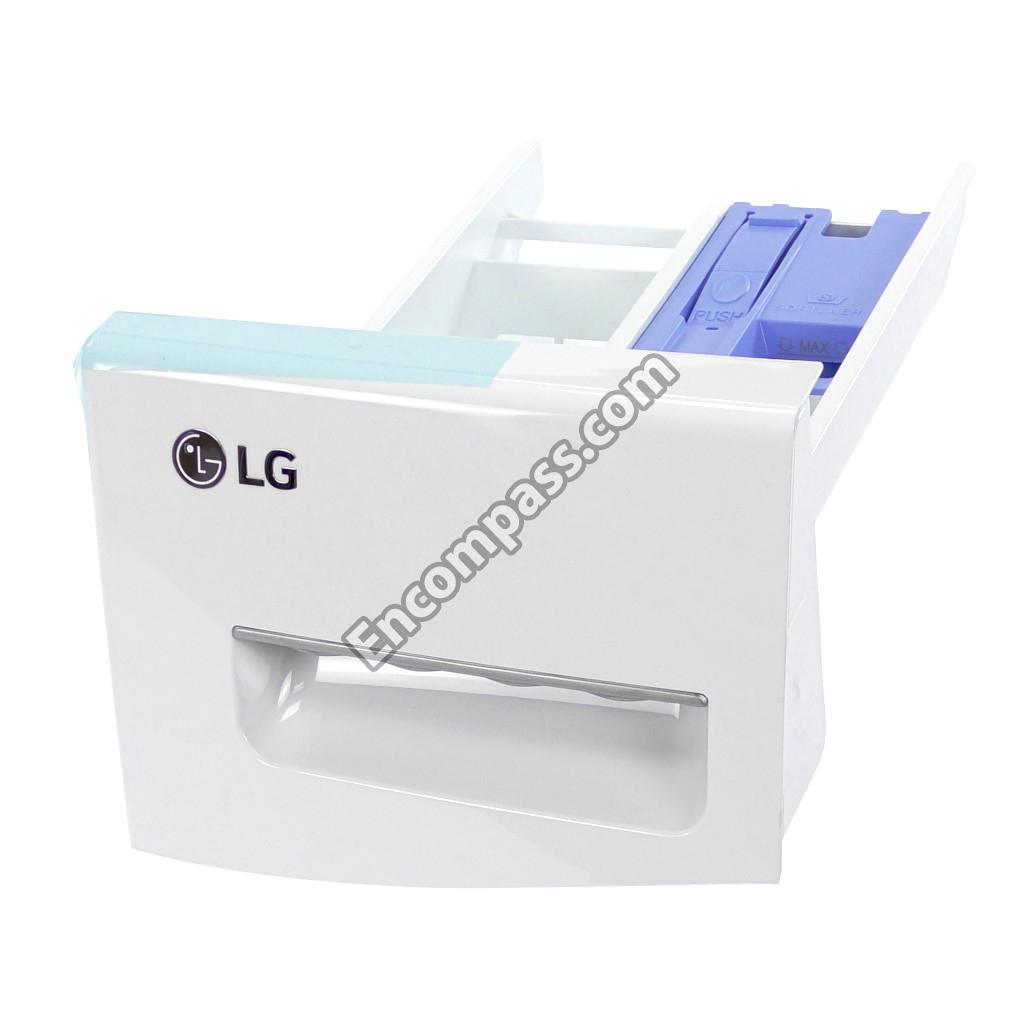

AGL74258268 AGL74258268 PANEL ASSEMBLY,DRAWER
AGL74454390 AGL74454390 PANEL ASSEMBLY,DRAWER
383EER3001G 383EER3001G PARTS ASSEMBLY

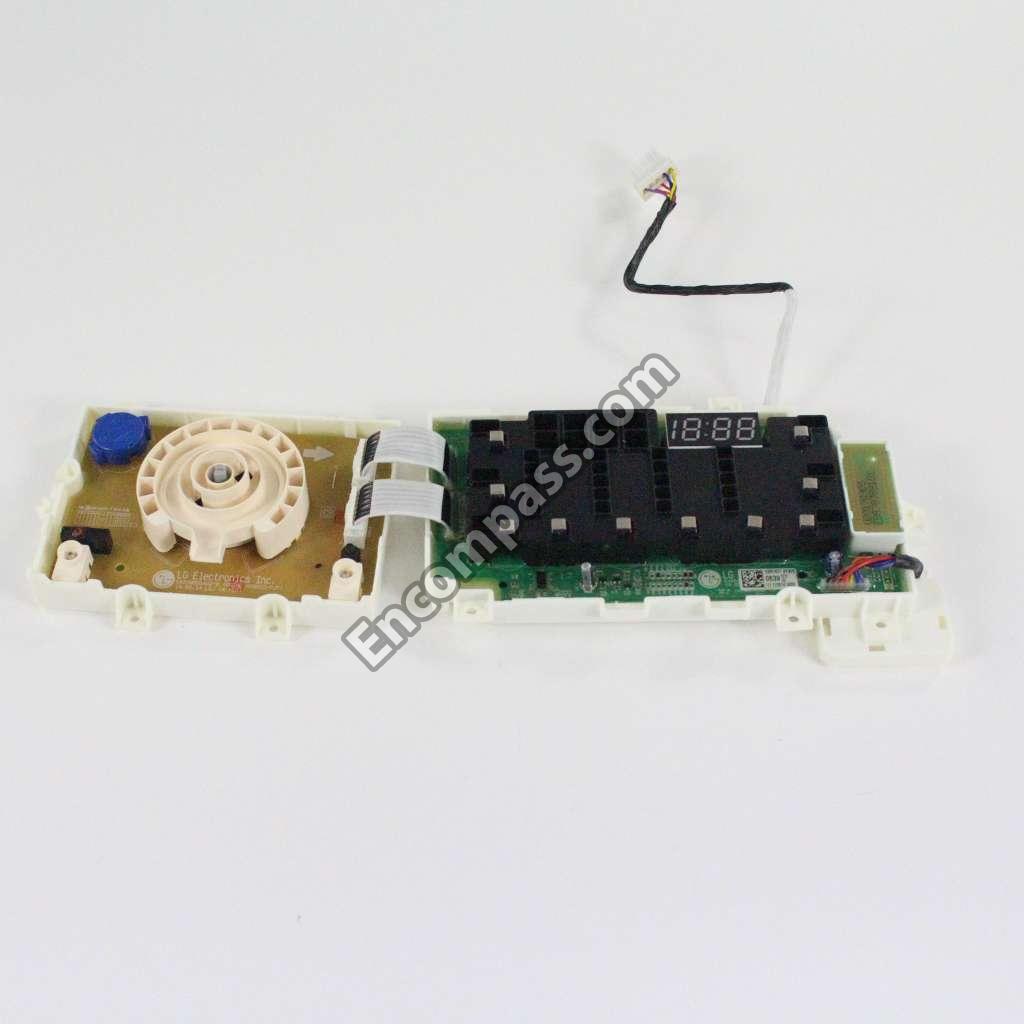

EBR78770639 EBR78770639 PCB ASSEMBLY,DISPLAY

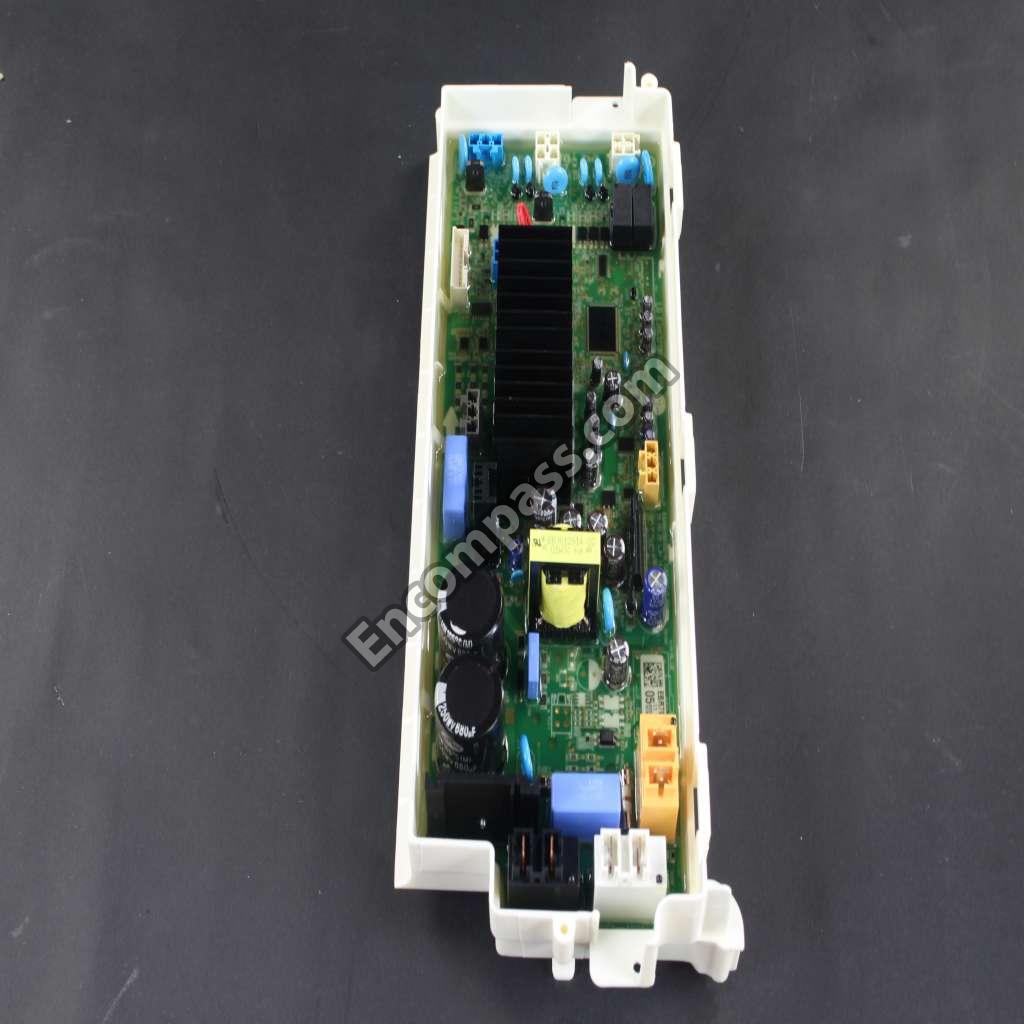

EBR79909505 EBR79909505 PCB ASSEMBLY,MAIN
AGU32367838 AGU32367838 PLATE ASSEMBLY,TOP
3457ER1008E 3457ER1008E PLATE ASSEMBLY,TOP

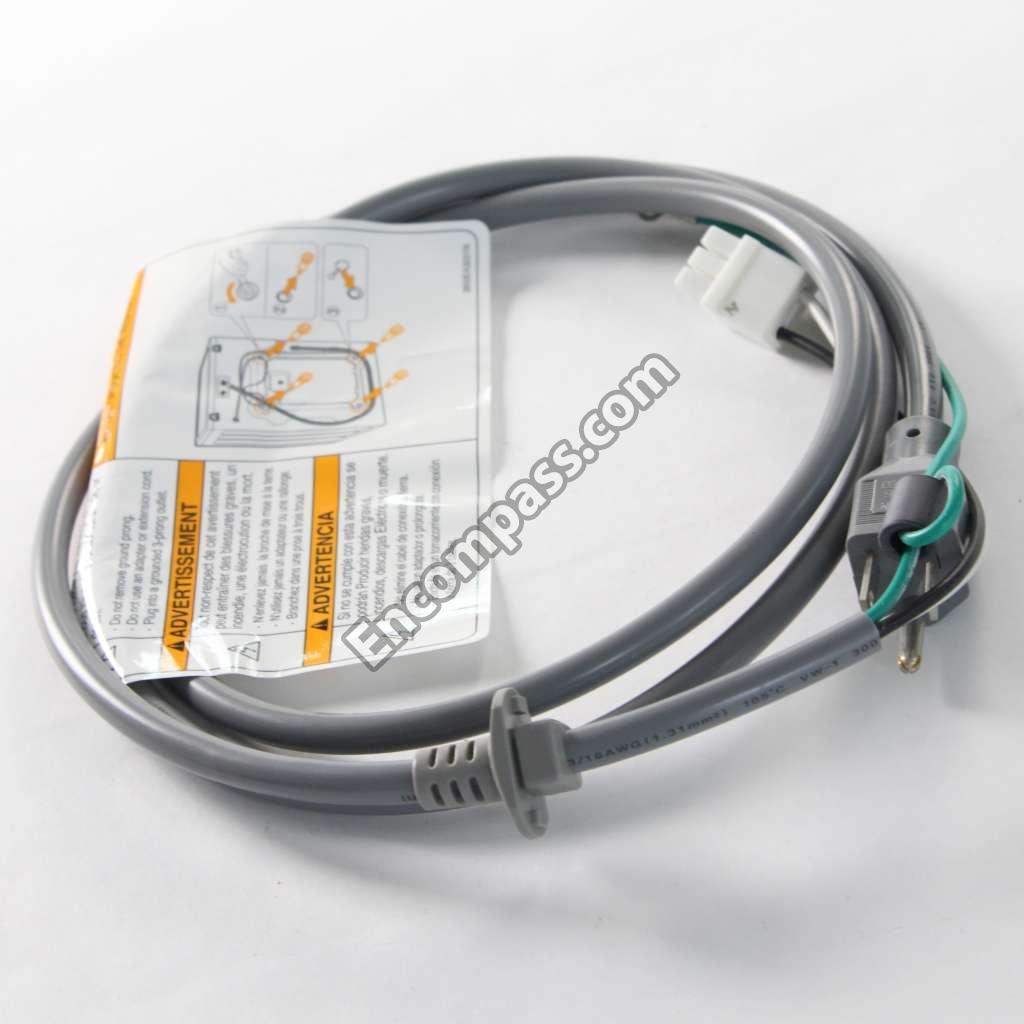

EAD63567545 EAD63567545 POWER CORD ASSEMBLY
6411ER1005K 6411ER1005K POWER CORD ASSEMBLY
EAD49973501 EAD49973501 POWER CORD ASSEMBLY

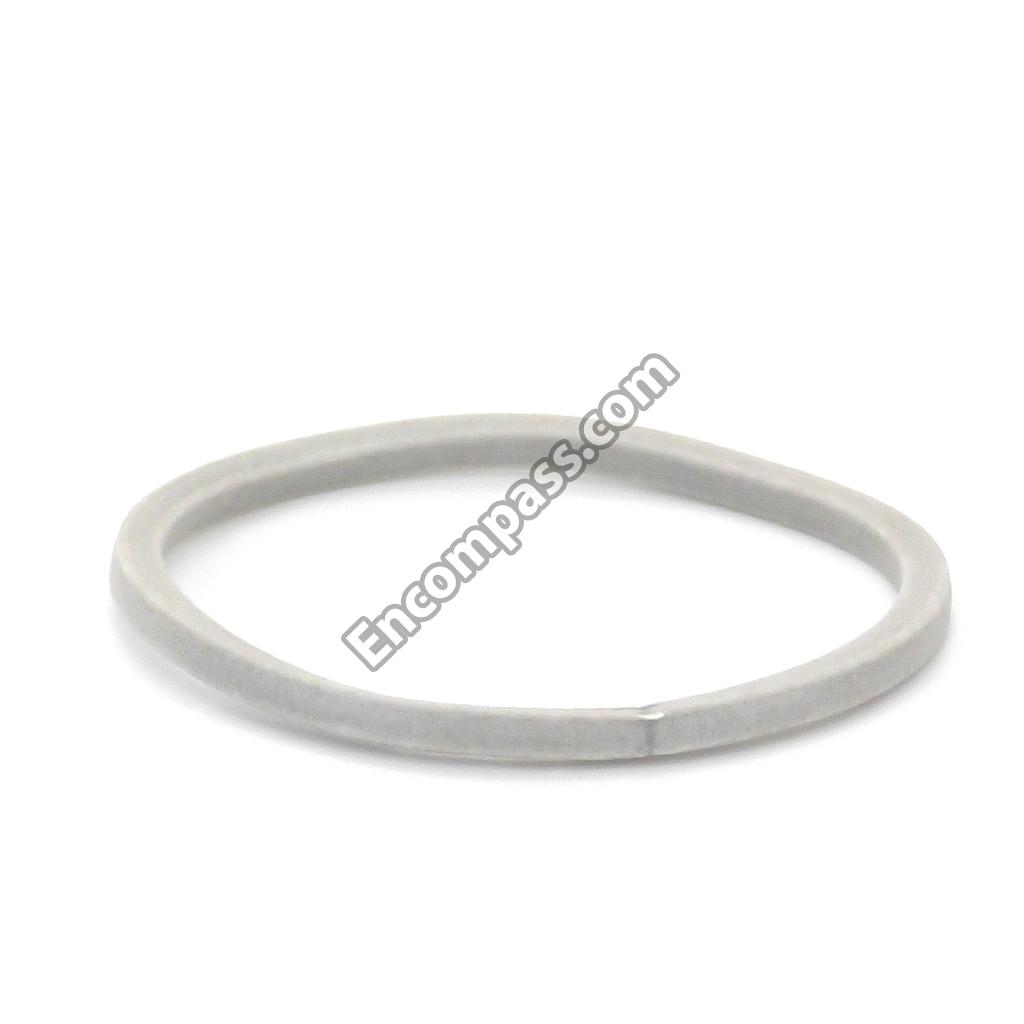

3W50012O 3W50012O RING,SNAP
AHL73855301 AHL73855301 ROTOR ASSEMBLY
4036FR4045A 4036FR4045A SEAL
4036ER2004A 4036ER2004A SEAL
4036ER4001A 4036ER4001A SEAL
4434ER1008E 4434ER1008E SPIDER
4970FR2084T 4970FR2084T SPRING,HINGE
MHY62644801 MHY62644801 SPRING,HINGE

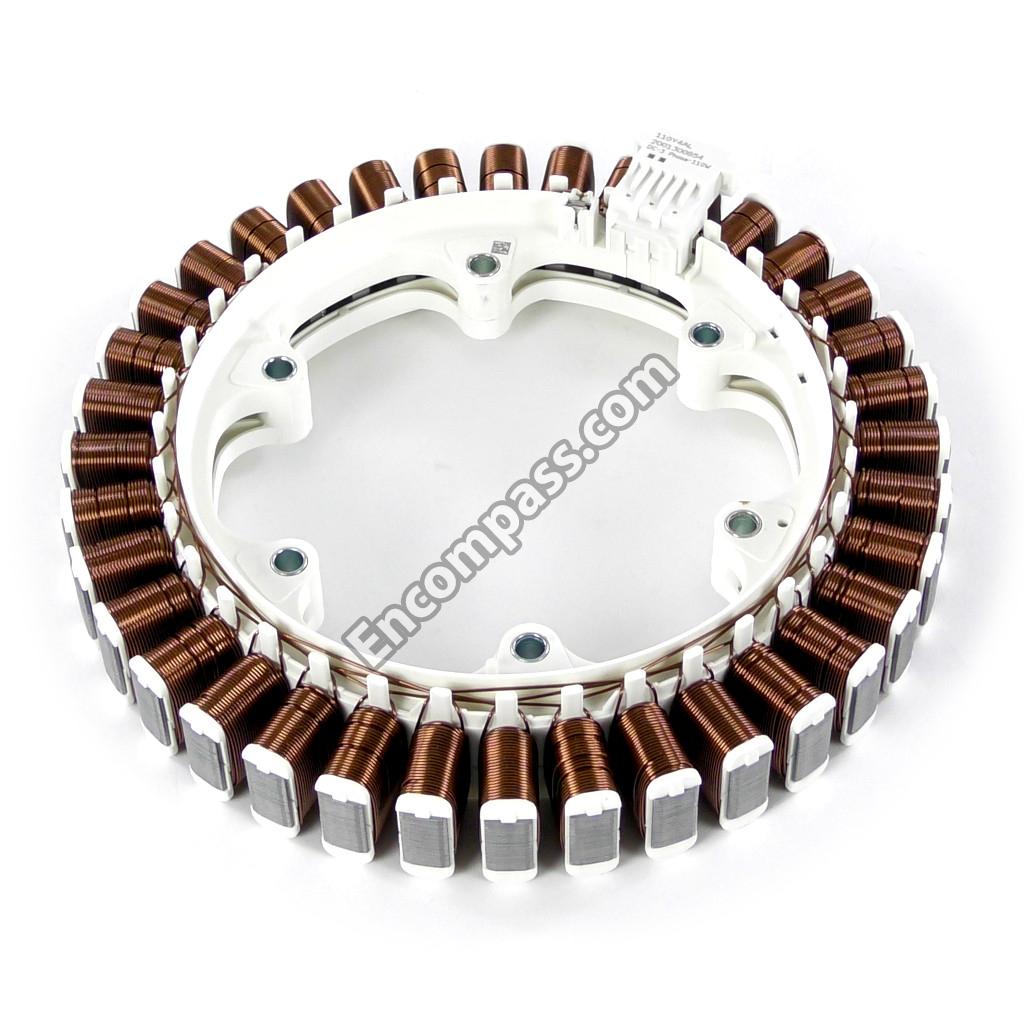

AJB73816001 AJB73816001 STATOR ASSEMBLY
EBF61315802 EBF61315802 SWITCH ASSEMBLY,LOCKER
6601ER1006F 6601ER1006F SWITCH ASSEMBLY,PRESSURE

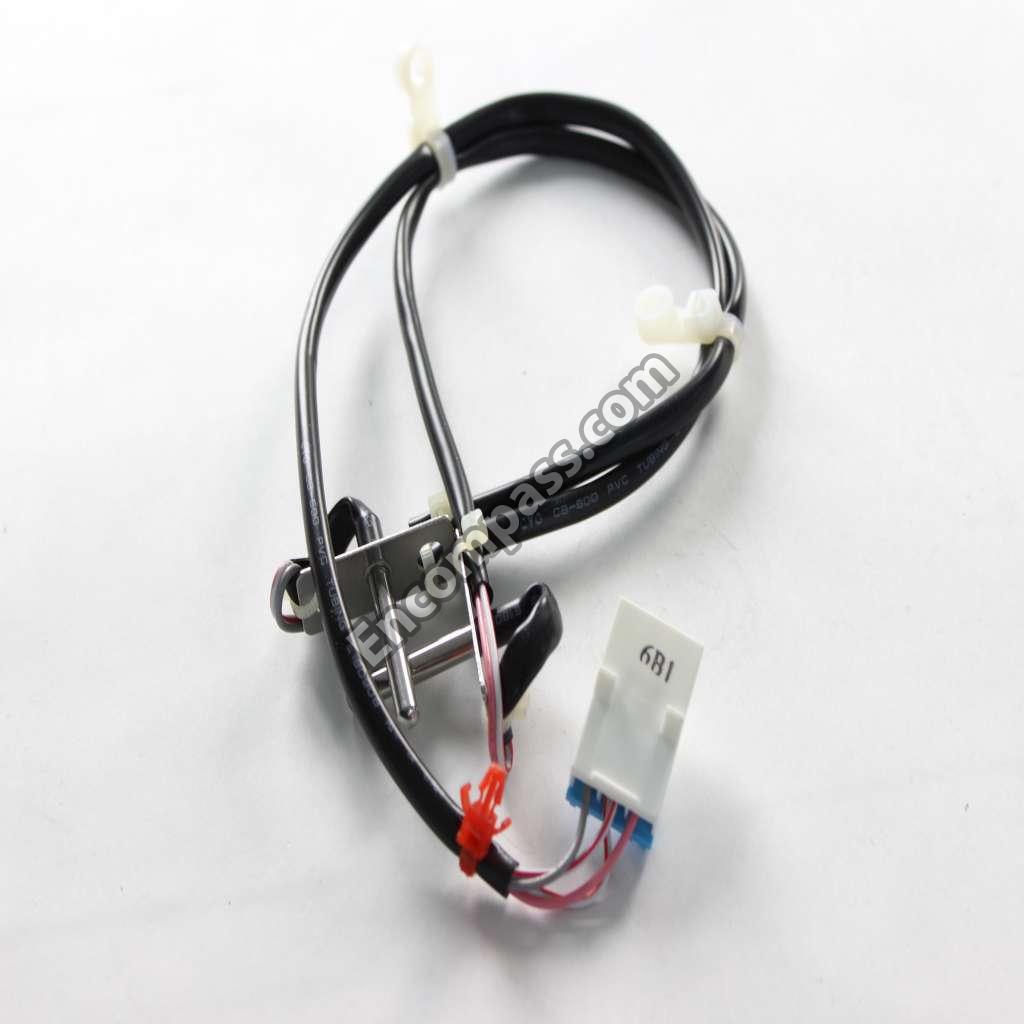

6322FR2046Q 6322FR2046Q THERMISTOR,NTC
6931FR3108A 6931FR3108A THERMOSTAT ASSY
5215FD3715M 5215FD3715M TOP LOAD INLET HOSE (COLD)
5214FA1146M 5214FA1146M TOP LOAD INLET HOSE (HOT)
AJQ33694820 AJQ33694820 TUB ASSEMBLY,DRUM(INNER)
3044ER0017H 3044ER0017H TUB ASSEMBLY,OUTER

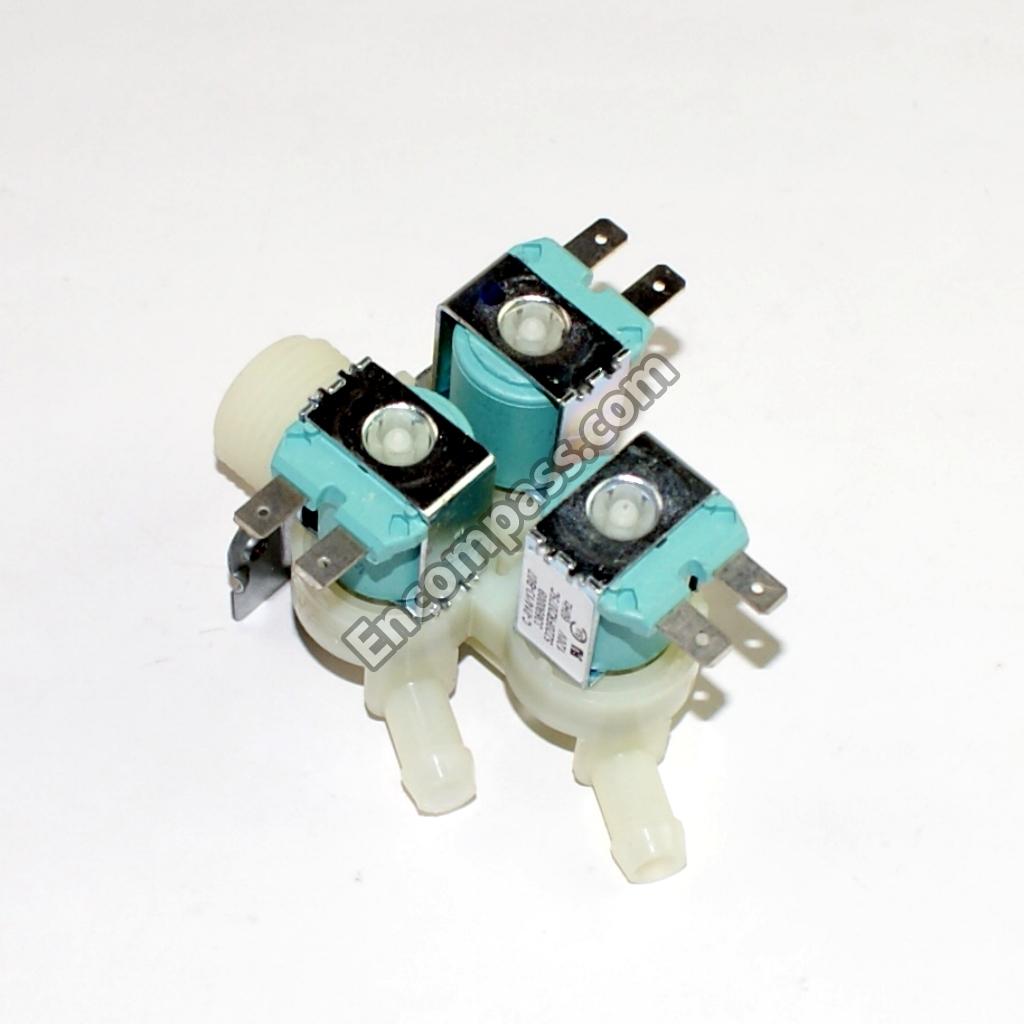

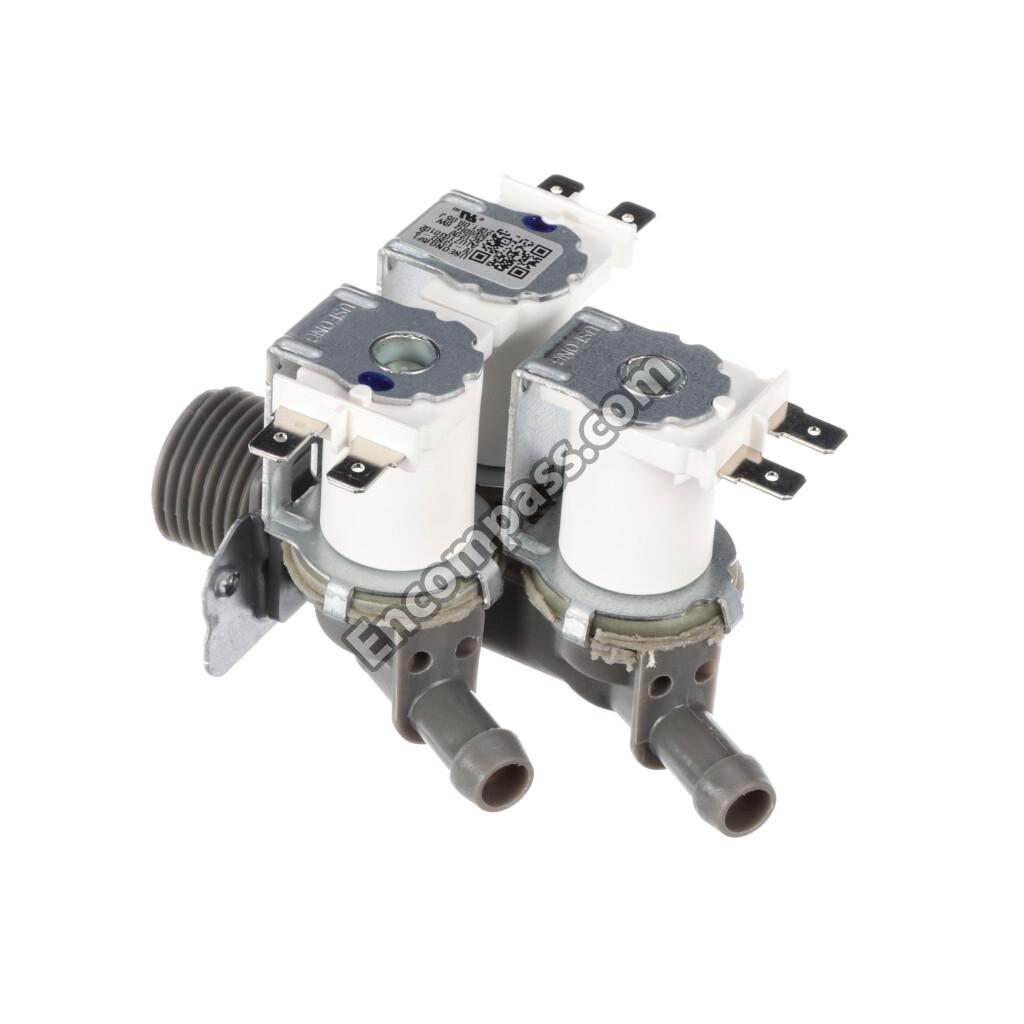

5220FR2006H 5220FR2006H VALVE ASSEMBLY,INLET
AJU71030102 AJU71030102 VALVE ASSEMBLY,INLET
5220FR2075C 5220FR2075C VALVE ASSEMBLY,INLET
4738ER1007A 4738ER1007A WASHER DOOR BELLOWS
3045ER0030K 3045ER0030K WASHER OUTER TUB
