Model Image
Manufacturer

LG

Model Number

WSEP4721S

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AAA76709921 AAA76709921 ACCESSORY ASSEMBLY,CAVITY
MAL48432602 MAL48432602 BARRIER
MAL41753602 MAL41753602 BARRIER
MAV62761901 MAV62761901 BLOCK,TERMINAL
MAZ41753502 MAZ41753502 BRACKET,CONTROL PANEL
MAZ64603204 MAZ64603204 BRACKET,HINGE
MAZ48427301 MAZ48427301 BRACKET,HINGE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ47170702 MAZ47170702 BRACKET,IDLE
MAZ40417401 MAZ40417401 BRACKET,MOTOR
MAZ55266201 MAZ55266201 BRACKET,MOUNT
MAZ47162501 MAZ47162501 BRACKET,MOUNT
MBR40415301 MBR40415301 CHAMBER
6640000045A 6640000045A CONNECTOR,TERMINAL BLOCK
6640000045B 6640000045B CONNECTOR,TERMINAL BLOCK
EBR38144604 EBR38144604 CONTROL BOARD
EBR76332902 EBR76332902 CONTROL BOARD,OPTION
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
EBR34132103 EBR34132103 CONTROL BOARD,WIFI
AGM75009066 AGM75009066 CONTROLLER,PARTS ASSEMBLY,SVC
MCK40417601 MCK40417601 COVER,INNER
MCK47161201 MCK47161201 COVER,INNER
AGM75509911 AGM75509911 COVER,PARTS ASSEMBLY,SVC
MCK40420102 MCK40420102 COVER,REAR
MCK40423001 MCK40423001 COVER,TOP
MCK41754102 MCK41754102 COVER,TOP
MCK41753701 MCK41753701 COVER,TOP
MCK71155802 MCK71155802 COVER,TOP
MCK71763801 MCK71763801 COVER,TOP
MCK40423201 MCK40423201 COVER,TOP
MCR68431102 MCR68431102 DECOR,VENT
ADJ52698704 ADJ52698704 DUCT ASSEMBLY
5901W1E002G 5901W1E002G FAN ASSEMBLY
ADP75673301 ADP75673301 FAN ASSEMBLY
ADV34868807 ADV34868807 FRAME ASSEMBLY,DOOR
ADX75734901 ADX75734901 GASKET ASSEMBLY
MDX40418804 MDX40418804 GRILLE
MDX40418808 MDX40418808 GRILLE
MDX40418604 MDX40418604 GRILLE
MEB65414301 MEB65414301 HANDLE,DOOR
EAD51439116 EAD51439116 HARNESS,SINGLE
EAD62349845 EAD62349845 HARNESS,SINGLE
EAD62349846 EAD62349846 HARNESS,SINGLE
MEE41716804 MEE41716804 HEATER,SHEATH
MEE41716501 MEE41716501 HEATER,SHEATH
AEH75637214 AEH75637214 HINGE ASSEMBLY
MEV63330702 MEV63330702 INSULATOR
MEV40416109 MEV40416109 INSULATOR
MEV42726401 MEV42726401 INSULATOR
MEV40415402 MEV40415402 INSULATOR
EAQ43128703 EAQ43128703 LAMP,HALOGEN
EAV65038303 EAV65038303 LED DISPLAY MODULE
EBR38144506 EBR38144506 MAIN BOARD
EAU43957805 EAU43957805 MOTOR ASSEMBLY,AC,SYNCHRONOUS
1NZZW1N002A 1NZZW1N002A NUT,CUSTOMIZED
MFZ54382601 MFZ54382601 PACKING,GASKET
MFZ40418402 MFZ40418402 PACKING,GASKET
AGU56000302 AGU56000302 PLATE ASSEMBLY,BASE
AGU76528302 AGU76528302 PLATE ASSEMBLY,REAR
EAD42825102 EAD42825102 POWER CORD ASSEMBLY
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
1SZZW5N001D 1SZZW5N001D SCREW,CUSTOMIZED
1ATF0502610 1ATF0502610 SCREW,TAPTITE
MHL49207701 MHL49207701 SHELF
MHL49207704 MHL49207704 SHELF
MJH55321602 MJH55321602 SUPPORTER
MJH55321603 MJH55321603 SUPPORTER
4980W1N013A 4980W1N013A SUPPORTER
MJH65513101 MJH65513101 SUPPORTER,HANDLE
MJH66363302 MJH66363302 SUPPORTER,PCB
MJH66392001 MJH66392001 SUPPORTER,PCB
MJH41754001 MJH41754001 SUPPORTER,PCB
EBF60663403 EBF60663403 SWITCH,TACT
EBF60663404 EBF60663404 SWITCH,TACT
EBG61305805 EBG61305805 THERMISTOR,PTC

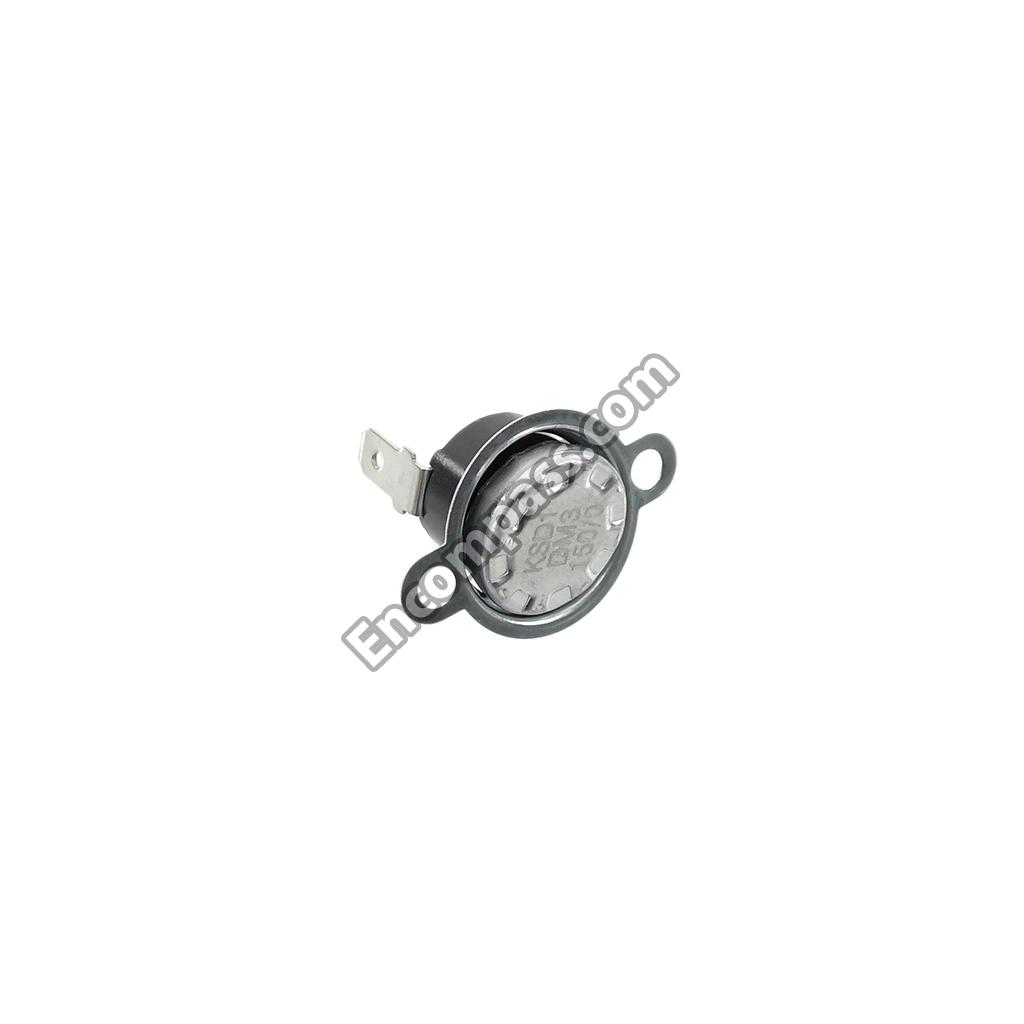

EBG51439303 EBG51439303 THERMOSTAT
6930W1A003D 6930W1A003D THERMOSTAT
MJZ41753802 MJZ41753802 VENT
AJV56083902 AJV56083902 VENT ASSEMBLY
1WZZ81N001A 1WZZ81N001A WASHER,COMMON
1WZZW3Z003E 1WZZW3Z003E WASHER,CUSTOMIZED
1WZZW3Z003C 1WZZW3Z003C WASHER,CUSTOMIZED
4890W1N009H 4890W1N009H WINDOW,GLASS
