Manufacturer
LG
Model Number
WT5101HV
Description
Wave Series 4.5 Cu.ft. Ultra-large Capacity High E
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BALANCE ASSEMBLY [K061] |
|
|
BASE ASSEMBLY,CABINET [F020] |
|
|
BOLT,COMMON [K210] |
|
|
BOX ASSEMBLY,DETERGENT [A150] |
|
|

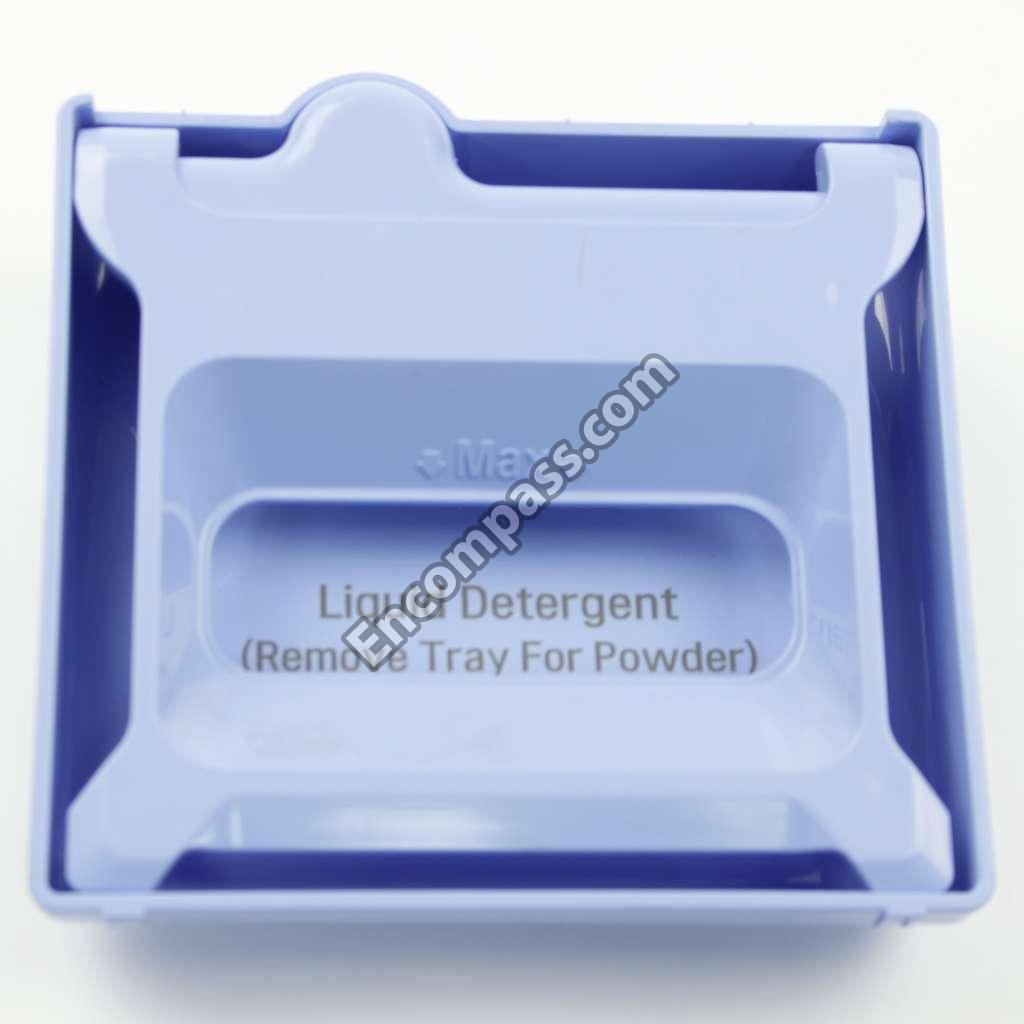

BOX,DETERGENT [A151] |
|
|
BOX,DETERGENT [A154] |
|
|

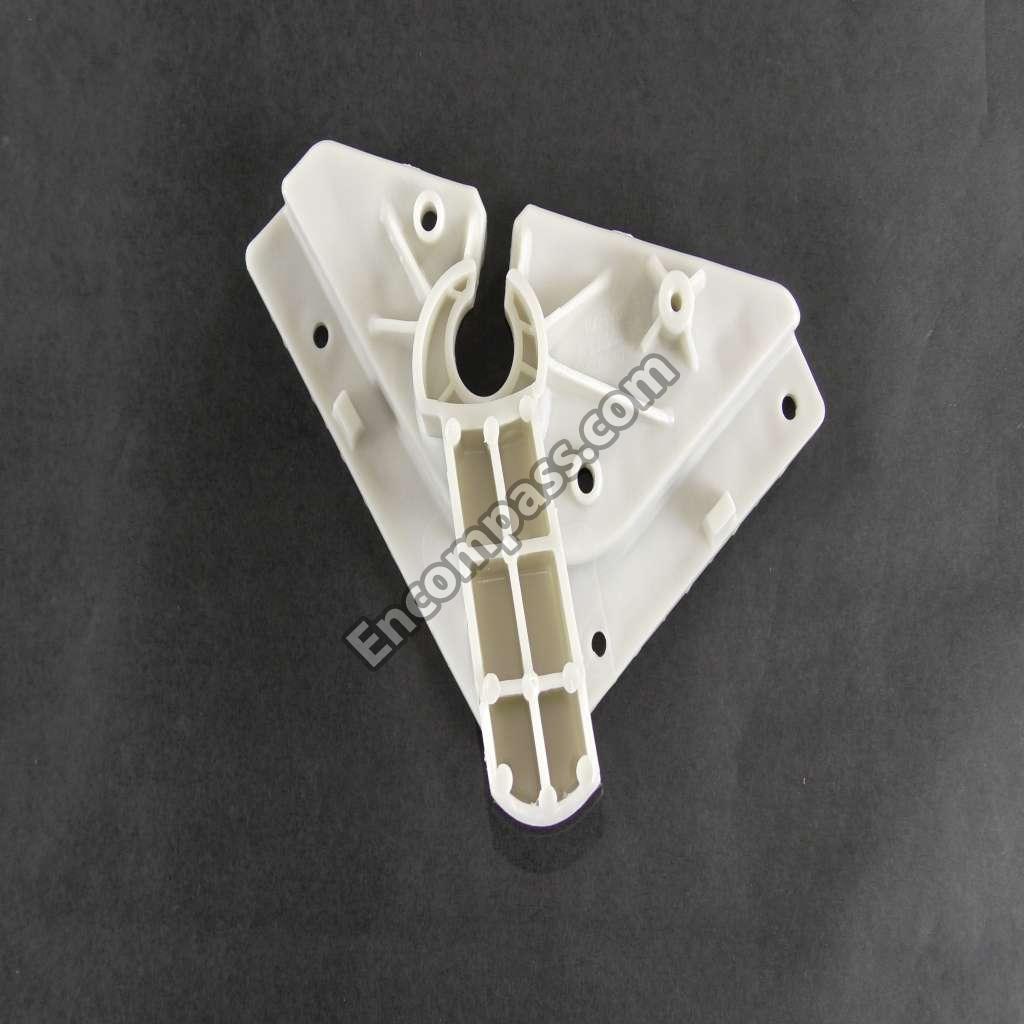

BRACKET ASSEMBLY [A147] |
|
|
BRACKET ASSEMBLY [A148] |
|
|
BRACKET,HEATER [K420] |
|
|
CABINET ASSEMBLY [F000] |
|
|
CAP,COVER [A410] |
|
|
CAP,PULSATOR [K012] |
|
|
CAP,SOFTENER [A152] |
|
|
CAP,SOFTENER [A153] |
|
|
CASE [A105] |
|
|
CLAMP [A390] |
|
|
COUPLING ASSEMBLY [K340] |
|
|
COUPLING [K345] |
|
|

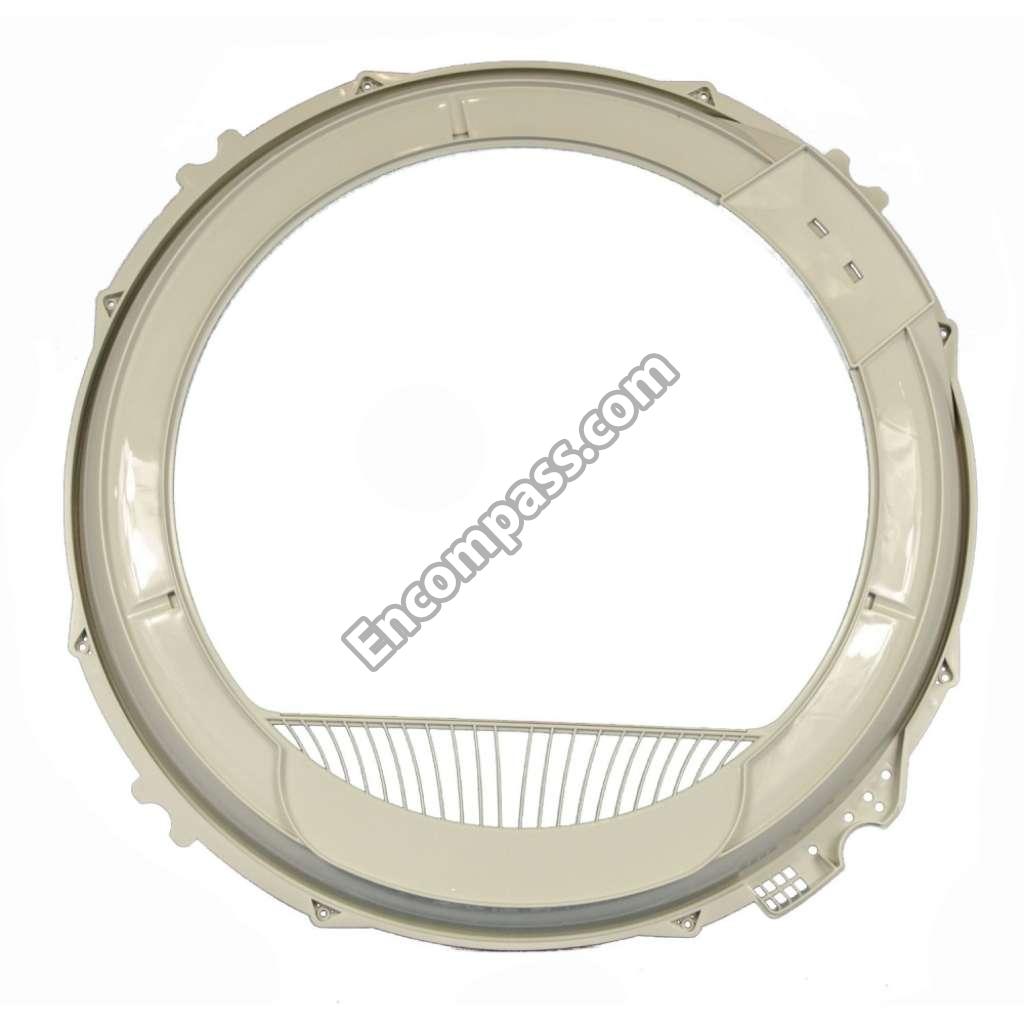

COVER ASSEMBLY,TUB [K000] |
|
|
COVER,GUIDE [A125] |
|
|
COVER,HEATER [K430] |
|
|
COVER,PROTECT [A063] |
|
|
COVER,PROTECT [F082] |
|
|
COVER,REAR [F070] |
|
|

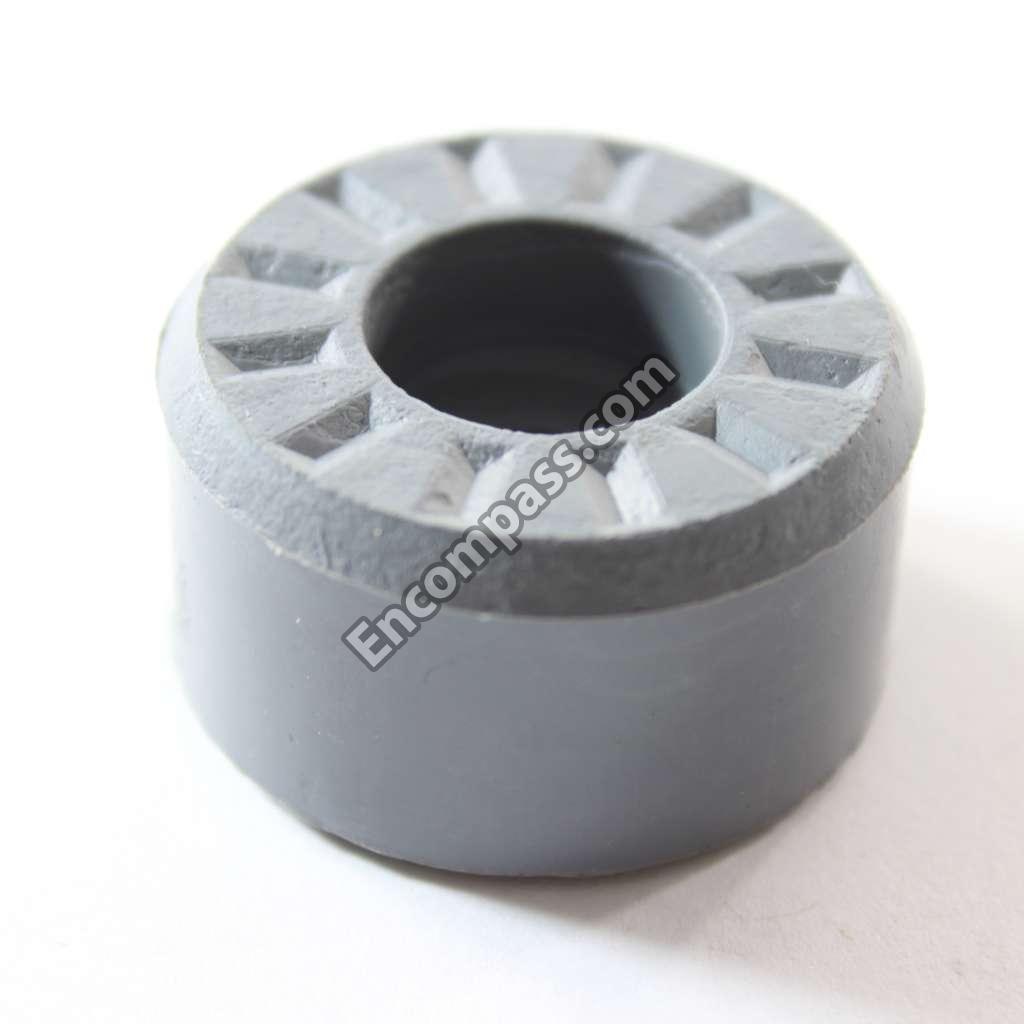

DAMPER [F025] |
|
|
DISPENSER ASSEMBLY [A380] |
|
|
FILTER ASSEMBLY [A241] |
|
|
GUIDE,WATER [K290] |
|
|
HANGER,PIVOT [F002] |
|
|
HANGER,PIVOT [F003] |
|
|
HANGER,PIVOT [F004] |
|
|
HANGER,PIVOT [F005] |
|
|
HARNESS,MULTI [A240] |
|
|
HARNESS,MULTI [K250] |
|
|
HEATER ASSEMBLY [K400] |
|
|
HOLDER ASSEMBLY [F011] |
|
|
HOLDER [F012] |
|
|
HOLDER [F013] |
|
|
HOLDER [F032] |
|
|
HOSE ASSEMBLY,CONNECTOR [F090] |
|
|
HOSE ASSEMBLY,DRAIN [F100] |
|
|
HOSE ASSEMBLY,DRAIN [K140] |
|
|
HOSE,CONNECTOR [A184] |
|
|
HOSE,INLET [A186] |
|
|
HOSE,INLET [A275] |
|
|
HOSE,INLET [A276] |
|
|
HOUSING ASSEMBLY,CLUTCH COUPLING [K170] |
|
|
HOUSING ASSEMBLY,DETERGENT [A190] |
|
|
HUB,TUB(INNER) [K064] |
|
|

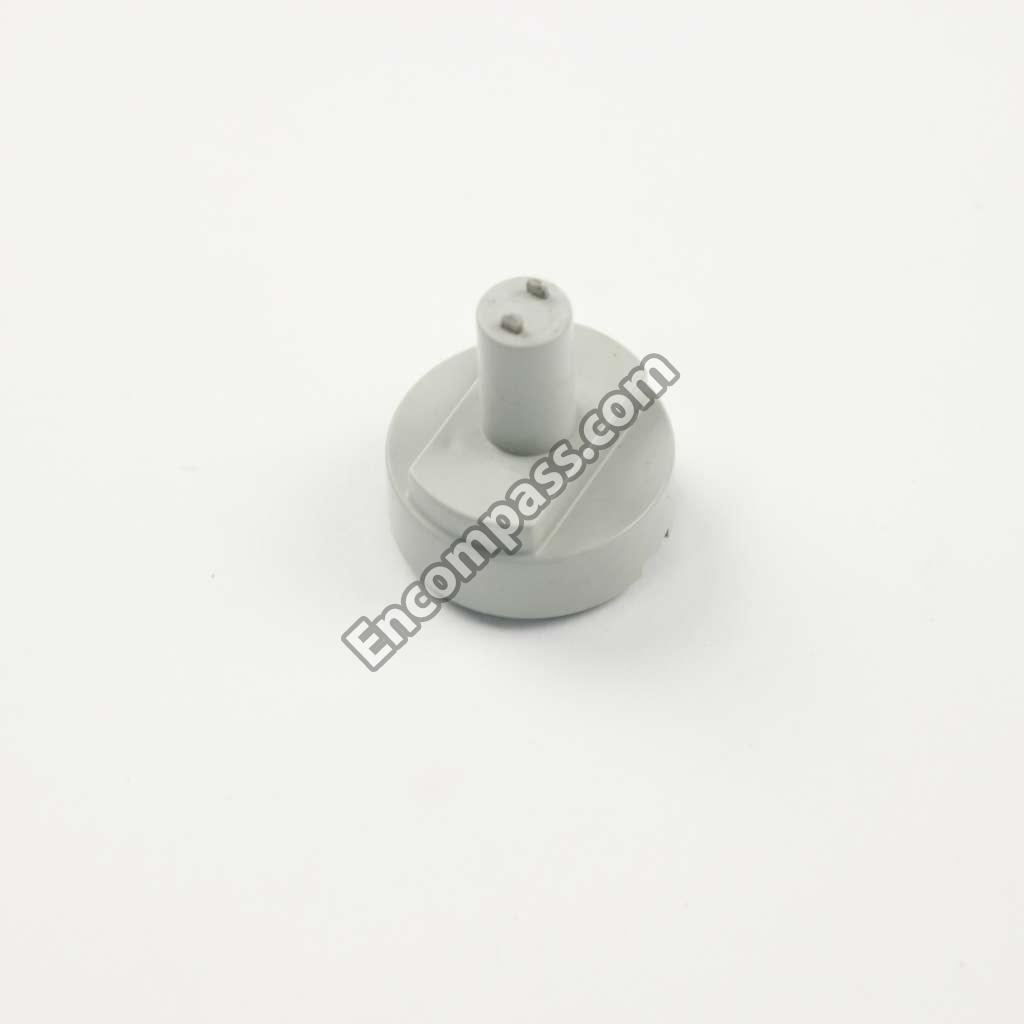

KNOB ASSEMBLY [A056] |
|
|
LEG ASSEMBLY [F026] |
|
|
LEG ASSEMBLY [F027] |
|
|

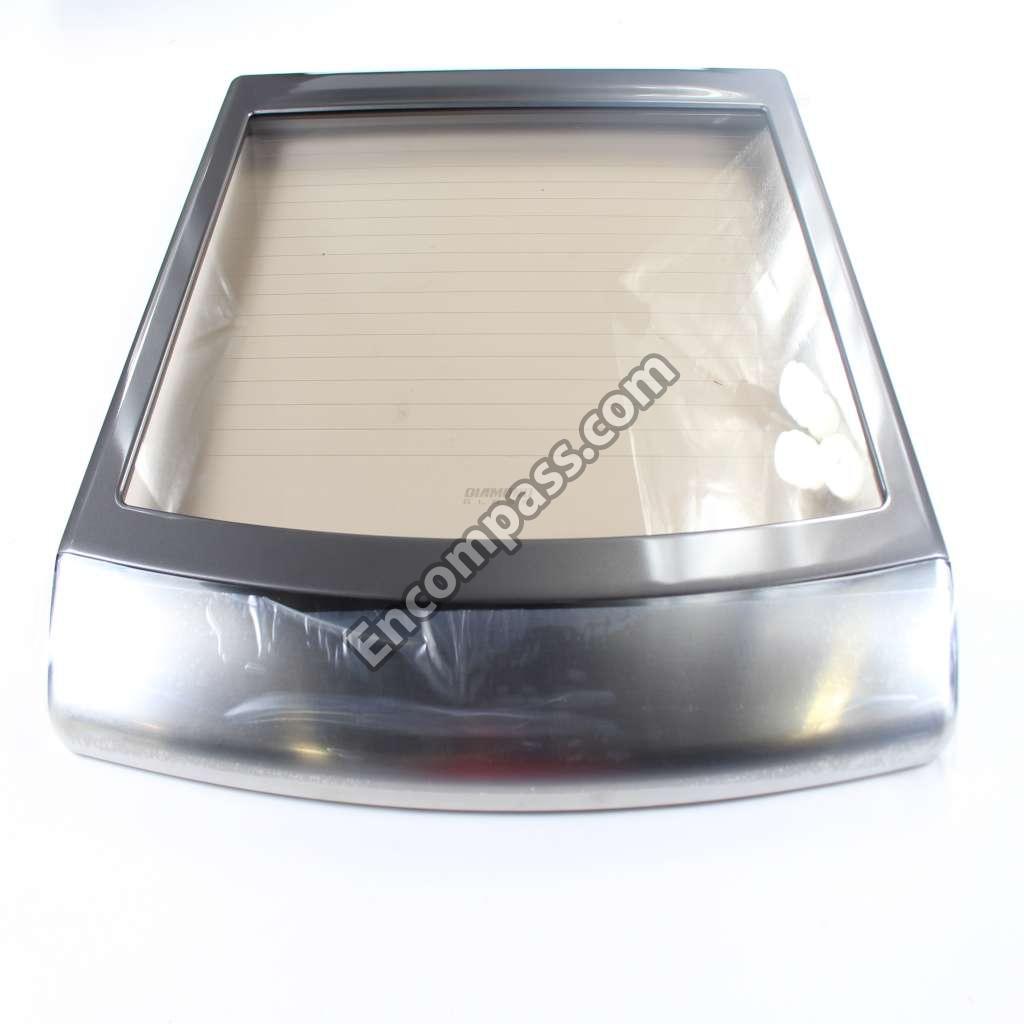

LID ASSEMBLY [A020] |
|
|
MOTOR ASSEMBLY,AC [K230] |
|
|
NOZZLE ASSEMBLY [A157] |
|
|

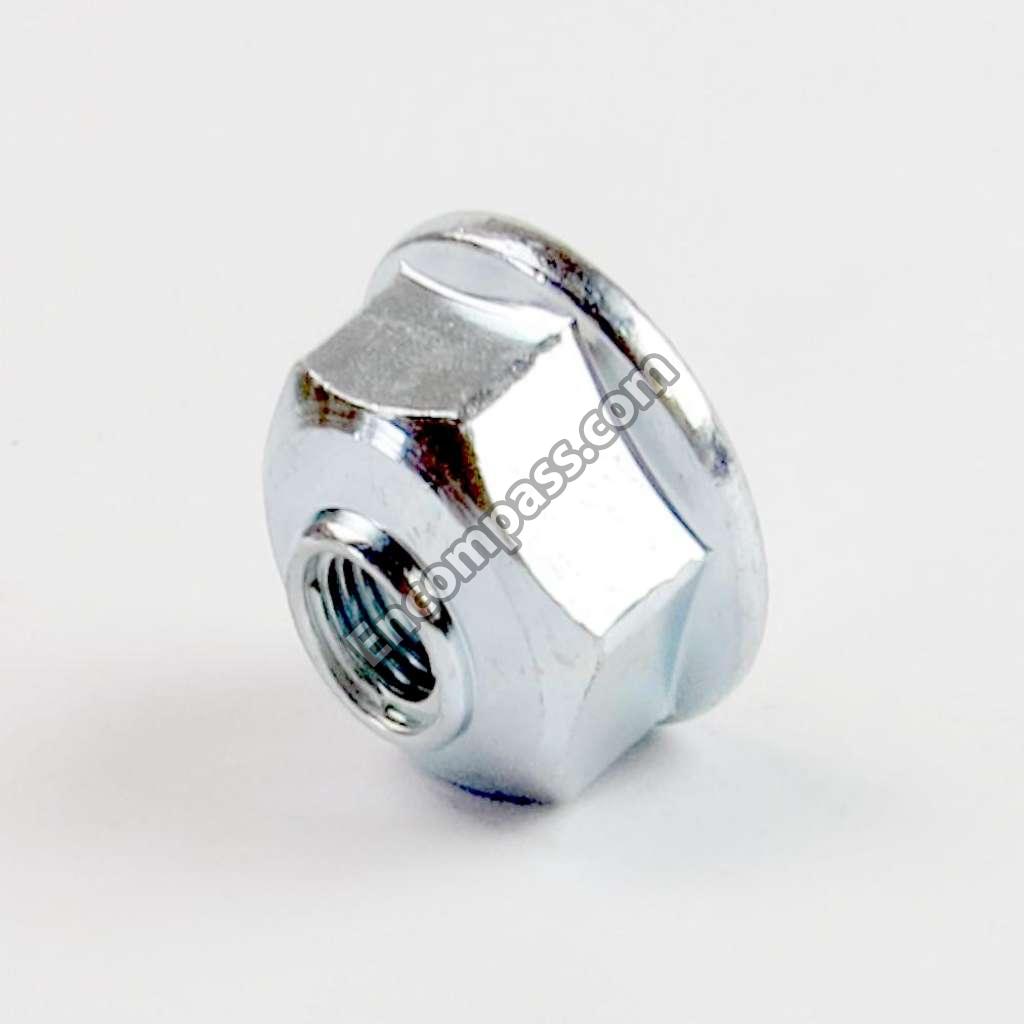

NUT,COMMON [K040] |
|
|
NUT,COMMON [K300] |
|
|
PANEL ASSEMBLY,FRONT [A050] |
|
|
PANEL,REAR [A011] |
|
|

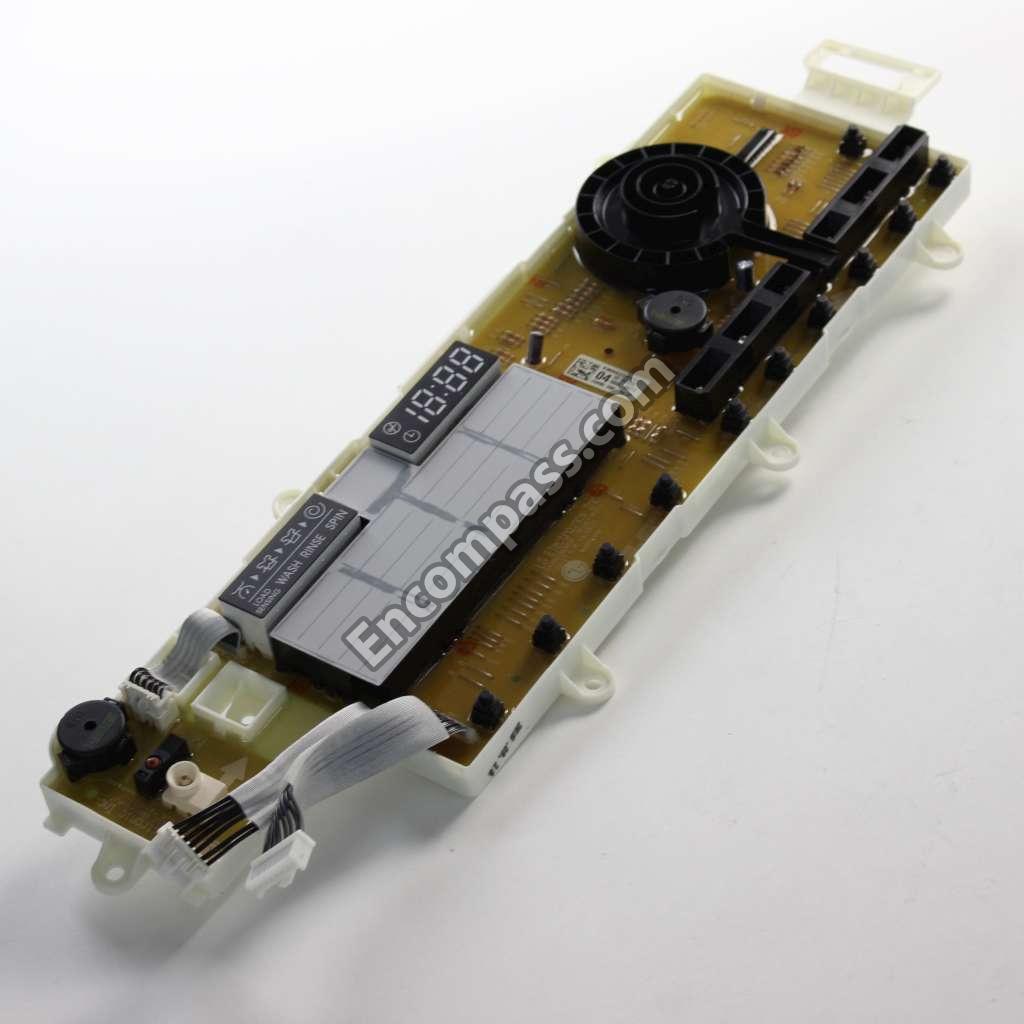

PCB ASSEMBLY,DISPLAY [A062] |
|
|

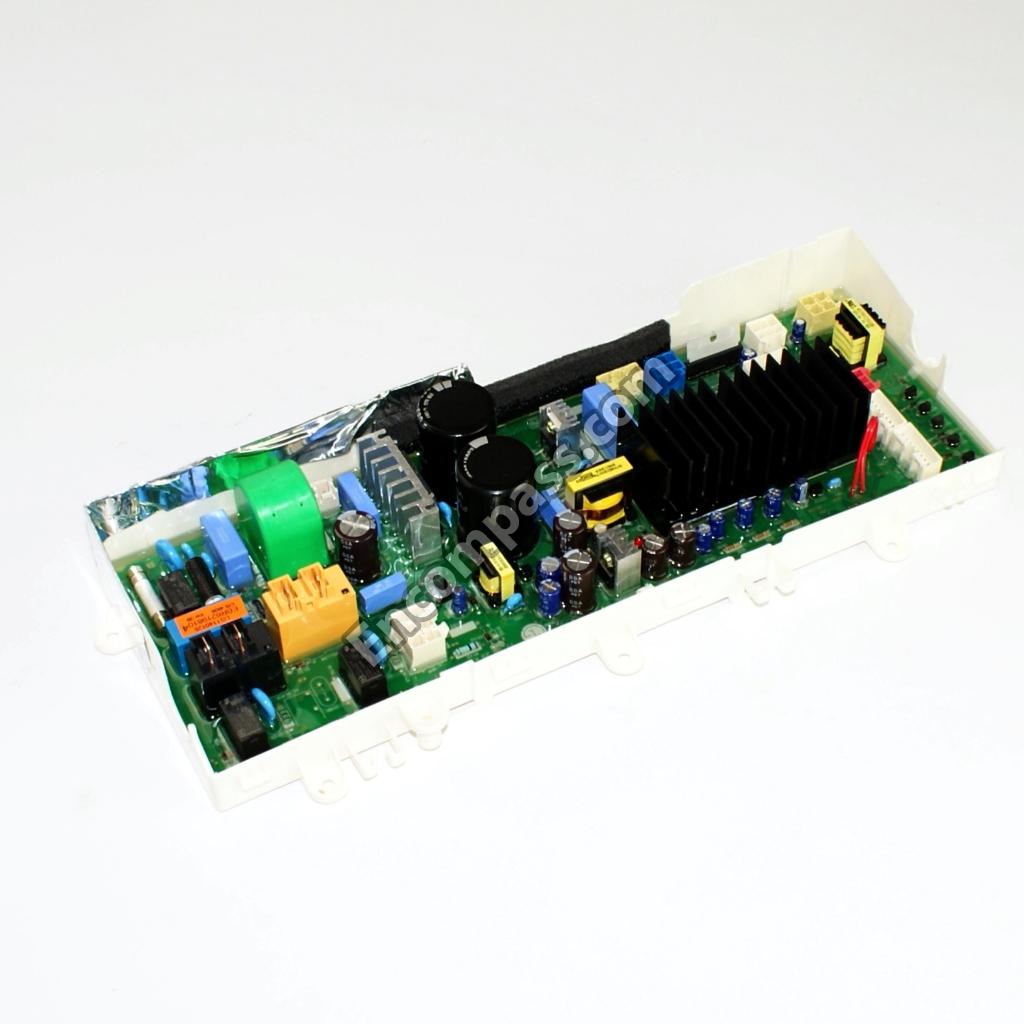

PCB ASSEMBLY,MAIN [A061] |
|
|
PIPE [A183] |
|
|

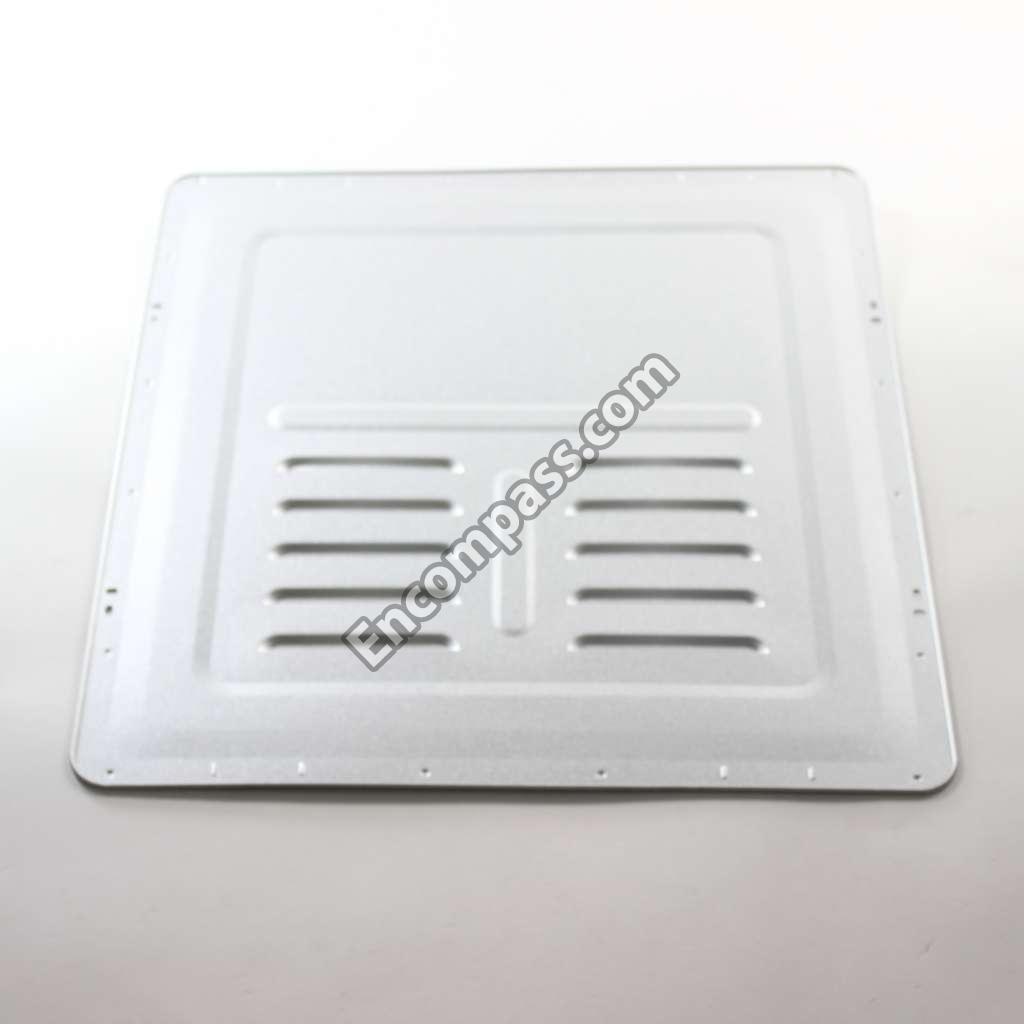

PLATE,LOWER [F015] |
|
|
PLATE,UPPER [A135] |
|
|
POWER CORD ASSEMBLY [A230] |
|
|
PULSATOR ASSEMBLY [K020] |
|
|
PUMP ASSEMBLY,DRAIN [F080] |
|
|
RING,SNAP [A202] |
|
|
ROTOR ASSEMBLY [K201] |
|
|
SCREW,CUSTOMIZED [K021] |
|
|
SCREW,TAPPING [K005] |
|
|
SENSOR ASSEMBLY [F150] |
|
|
SENSOR ASSEMBLY [K351] |
|
|
STATOR ASSEMBLY [K200] |
|
|

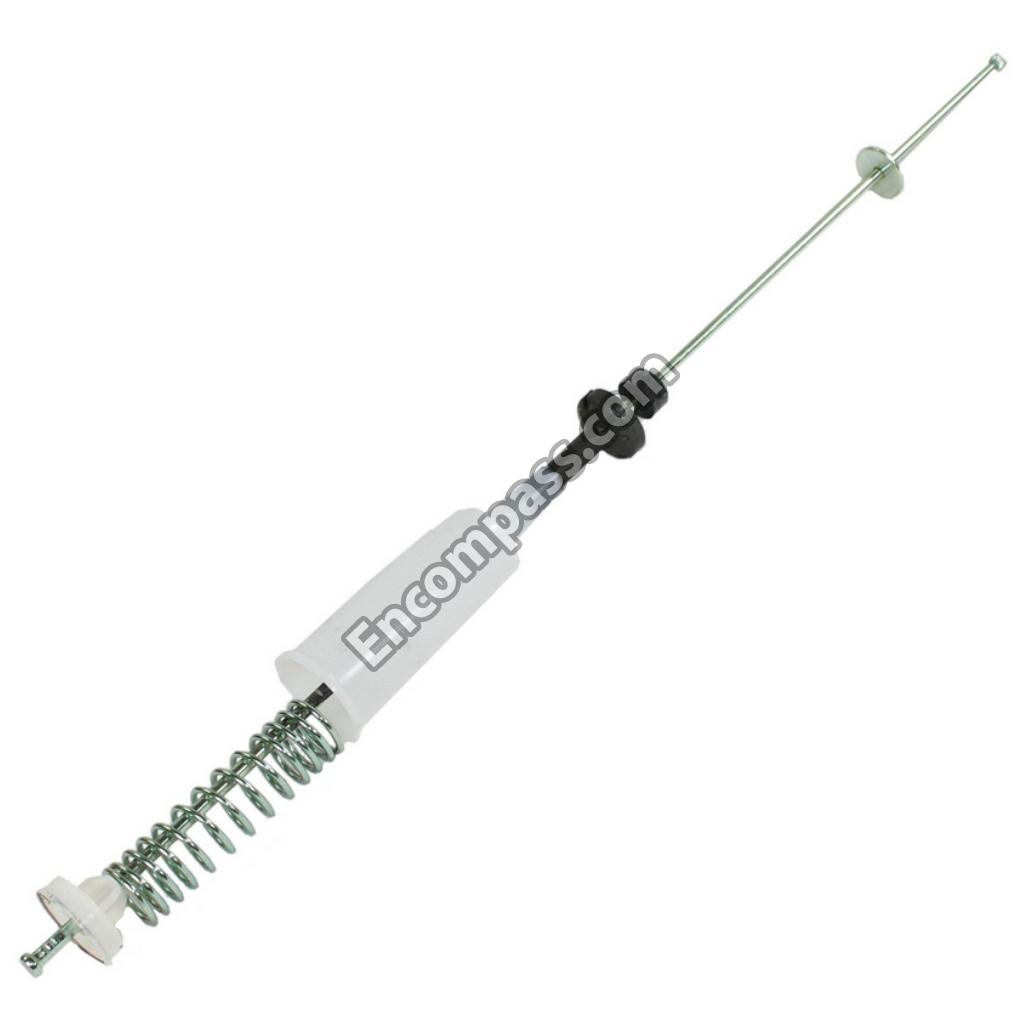

SUSPENSION ASSEMBLY [K100] |
|
|
SWITCH ASSEMBLY [A140] |
|
|
SWITCH ASSEMBLY,SENSOR [A200] |
|
|
THERMISTOR,NTC [K350] |
|
|
THERMOSTAT ASSEMBLY [K410] |
|
|
TUB ASSEMBLY,INNER [K060] |
|
|
VALVE ASSEMBLY,INLET [A180] |
|
|

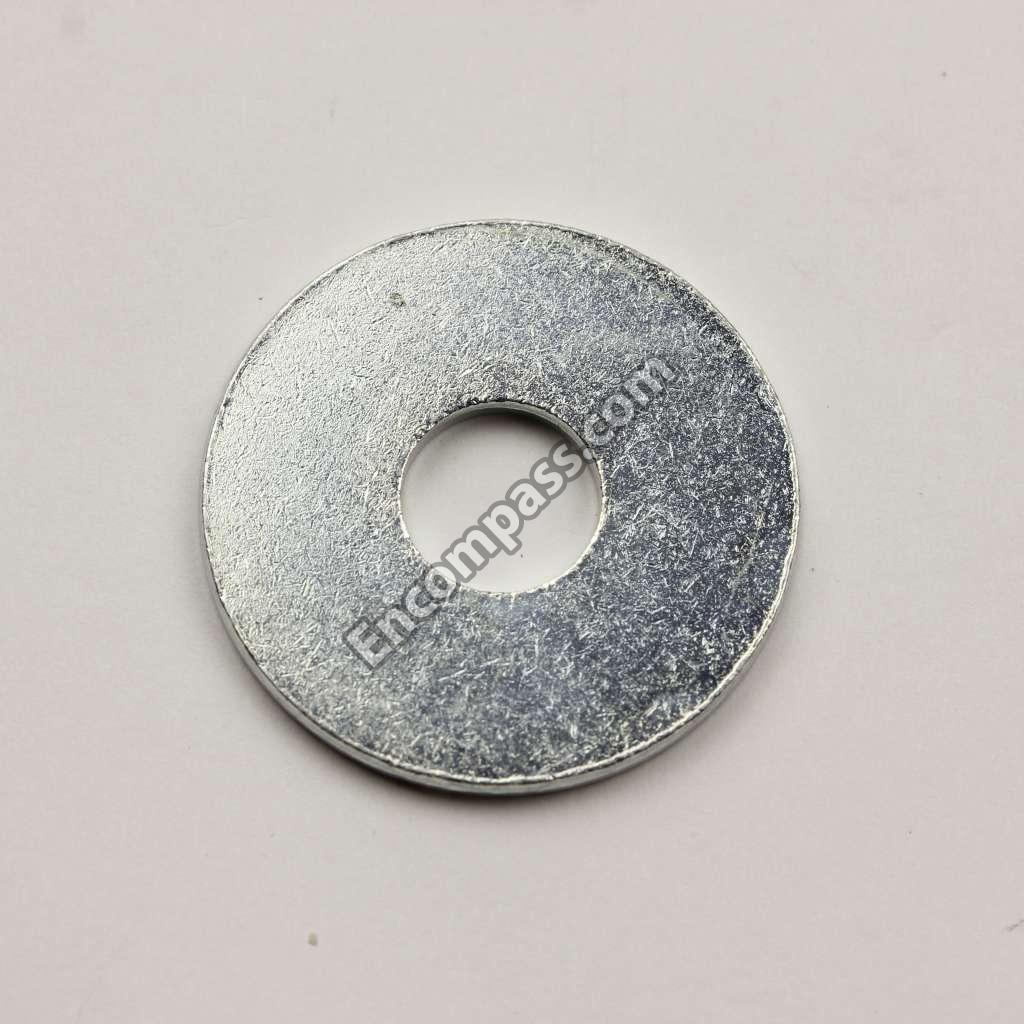

WASHER,COMMON [K030] |
|
|
WASHER,COMMON [K050] |
|
|
WASHER,CUSTOMIZED [K305] |
