Model Image
Manufacturer

LG

Model Number

WT7050CV

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAJ72909611 AAJ72909611 BALANCE ASSEMBLY
AAJ72909607 AAJ72909607 BALANCE ASSEMBLY
AAN73431010 AAN73431010 BASE ASSEMBLY,CABINET
FAA30850701 FAA30850701 BOLT,COMMON

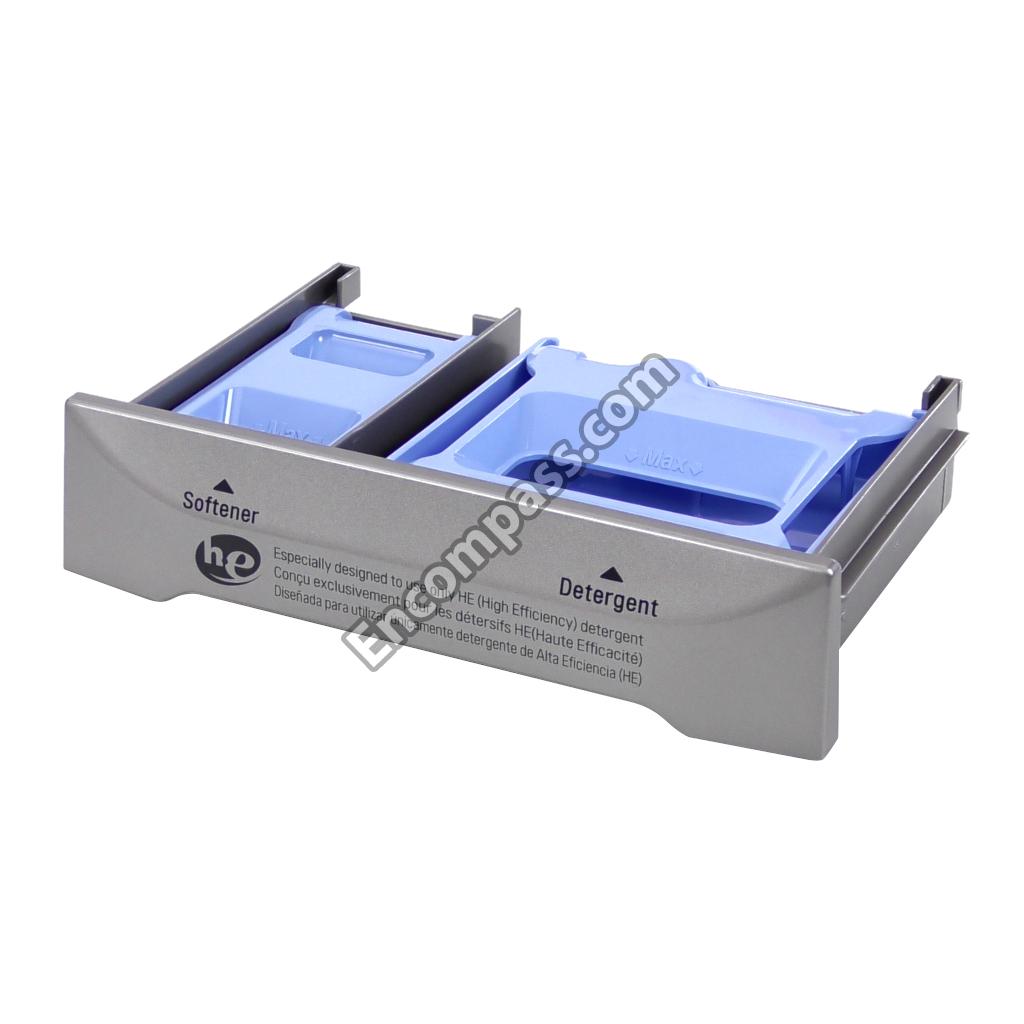

AAZ73855915 AAZ73855915 BOX ASSEMBLY,DETERGENT
MAY65797111 MAY65797111 BOX,DETERGENT
MAY65797106 MAY65797106 BOX,DETERGENT
MAY65797211 MAY65797211 BOX,DETERGENT

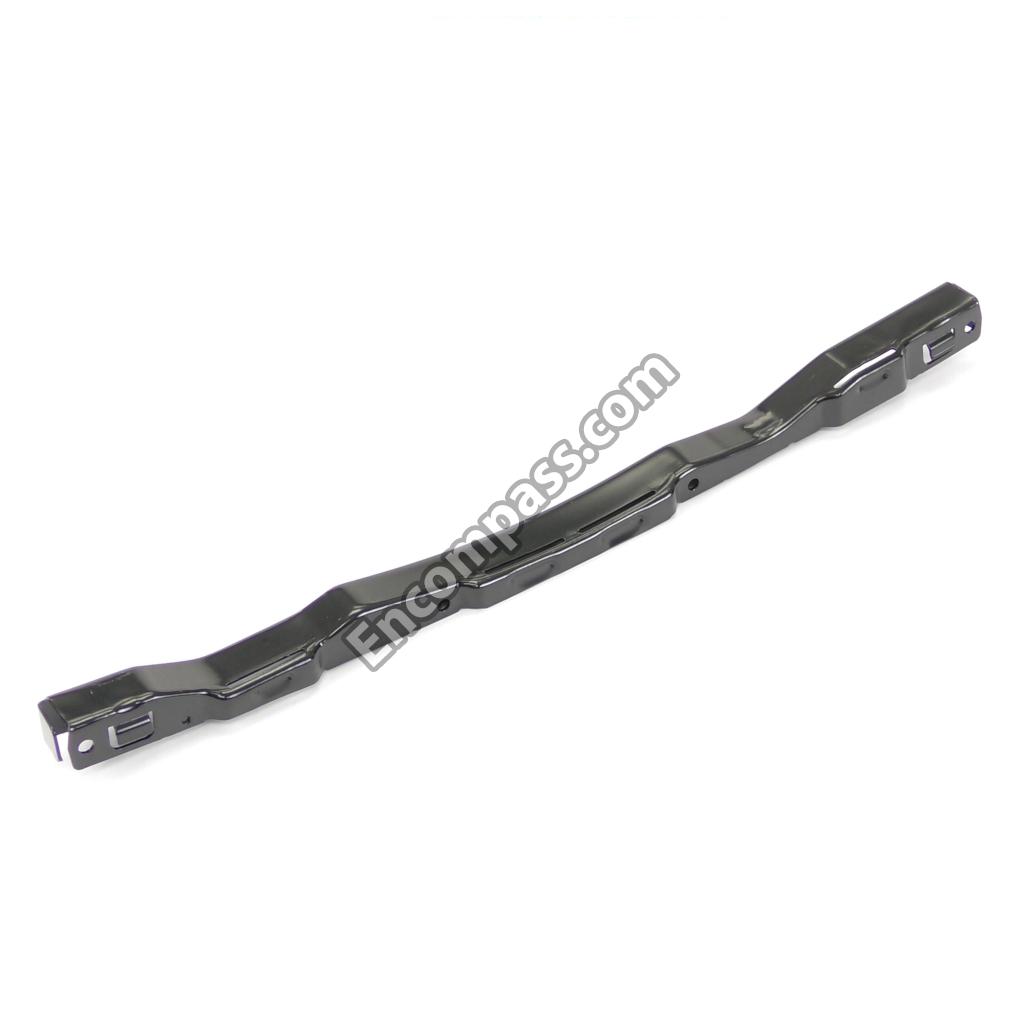

ABA73249001 ABA73249001 BRACKET ASSEMBLY
ABA72939701 ABA72939701 BRACKET ASSEMBLY
MAZ63674302 MAZ63674302 BRACKET ASSEMBLY
ABJ72919650 ABJ72919650 CABINET ASSEMBLY
ABJ72919639 ABJ72919639 CABINET ASSEMBLY
MBL62061401 MBL62061401 CAP,COVER
MBL65219301 MBL65219301 CAP,PULSATOR
5006EA3009B 5006EA3009B CAP,PULSATOR

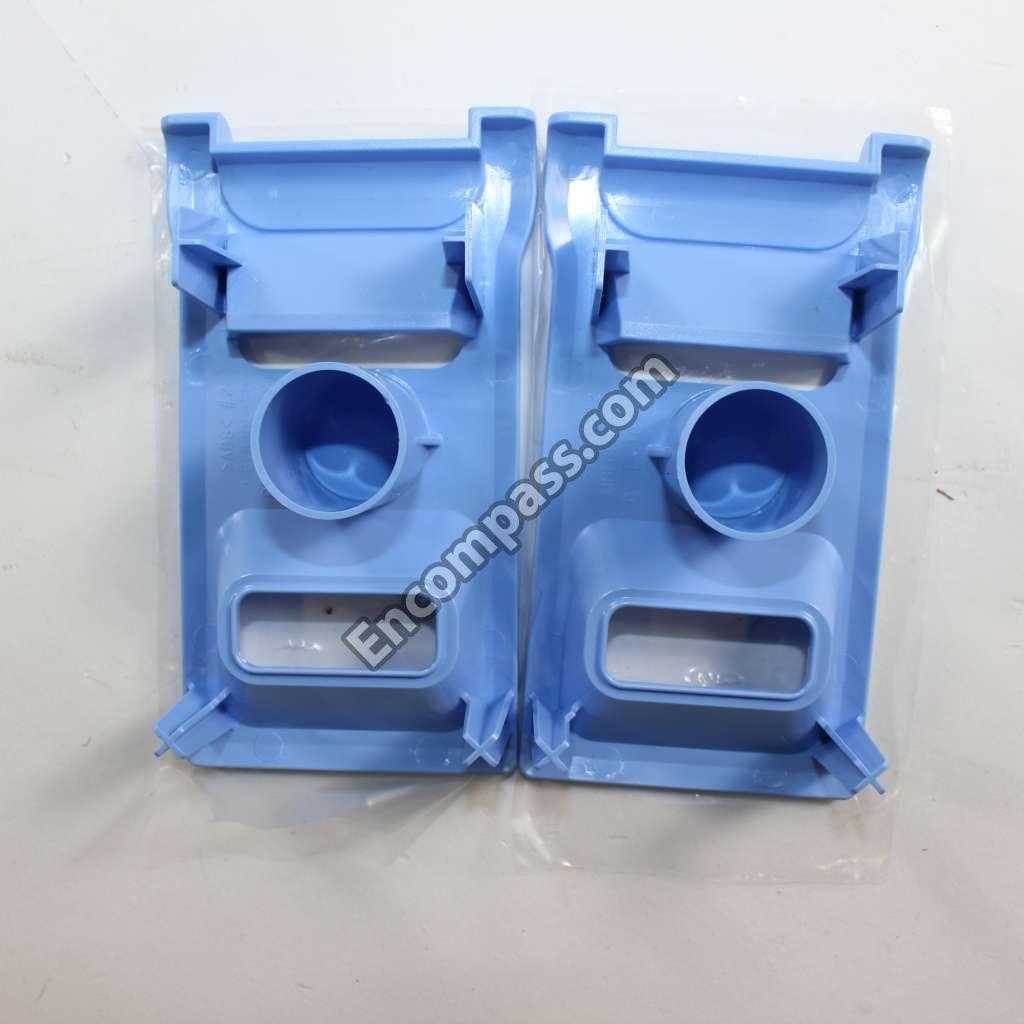

MBL65440008 MBL65440008 CAP,SOFTENER
MBL65460504 MBL65460504 CAP,SOFTENER
MBL62061501 MBL62061501 CAP,SOFTENER
MBL62061601 MBL62061601 CAP,SOFTENER
MBN61861101 MBN61861101 CASE
3W40106M 3W40106M CLAMP
3W40106R 3W40106R CLAMP
4861FR3068A 4861FR3068A CLAMP
ACJ73350404 ACJ73350404 CONNECTOR ASSEMBLY
ACJ73350401 ACJ73350401 CONNECTOR ASSEMBLY
MCD62647002 MCD62647002 CONNECTOR,DRAIN HOSE
MBU62225402 MBU62225402 CONNECTOR,DRAIN HOSE
MCJ61861201 MCJ61861201 COUPLING
4323EA2001C 4323EA2001C COUPLING ASSEMBLY
ACQ85605505 ACQ85605505 COVER ASSEMBLY,TUB
MCK62185702 MCK62185702 COVER,GUIDE
3550EA3007C 3550EA3007C COVER,PROTECT
MCK65833301 MCK65833301 COVER,PROTECT
MCK67652501 MCK67652501 COVER,REAR
MCK62185532 MCK62185532 COVER,TOP
MCK62185523 MCK62185523 COVER,TOP
MCK62185511 MCK62185511 COVER,TOP
5040FA4226B 5040FA4226B DAMPER
MCR66426606 MCR66426606 DECOR,PANEL
ACZ72910402 ACZ72910402 DISPENSER ASSEMBLY
ACZ72910401 ACZ72910401 DISPENSER ASSEMBLY
AEM73732904 AEM73732904 DRAIN HOSE ASSEMBLY

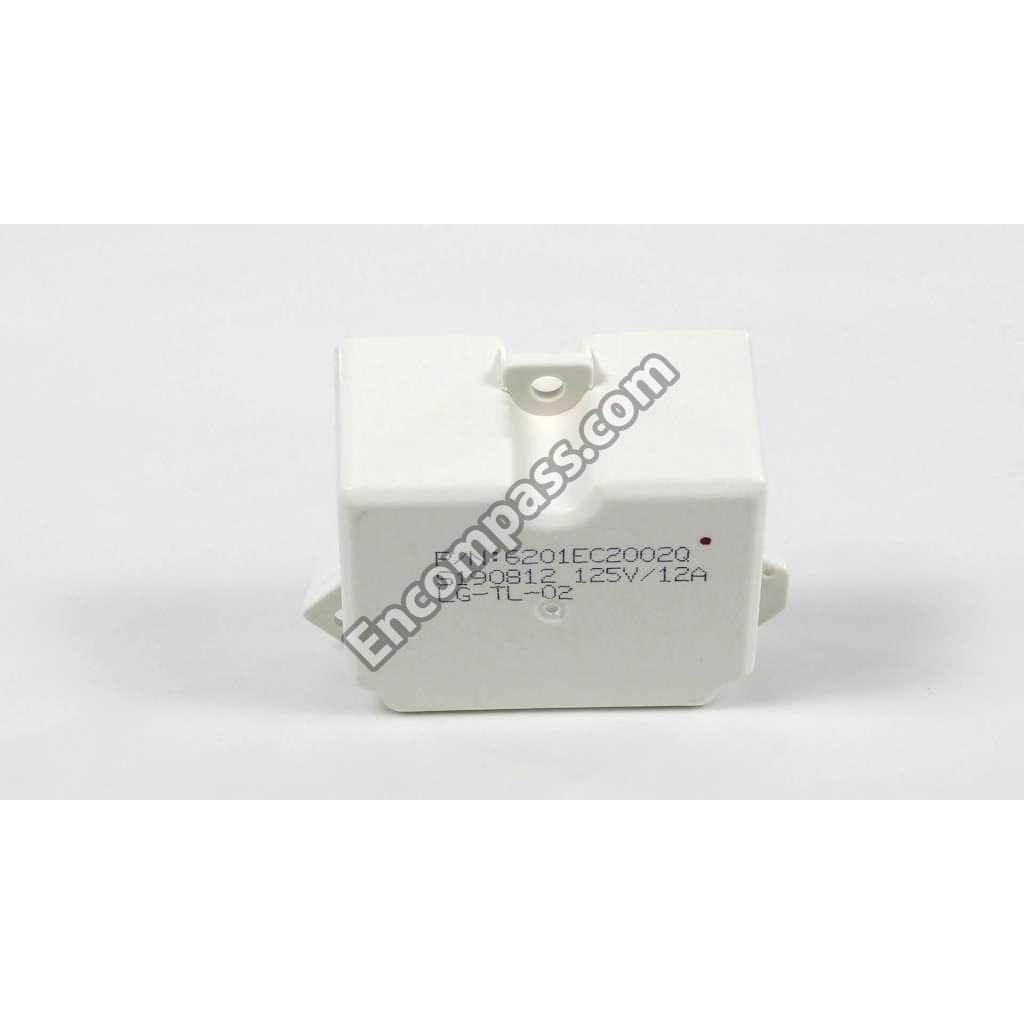

6201EC2002Q 6201EC2002Q FILTER ASSEMBLY
4036FA4364B 4036FA4364B GASKET
4974EA2004B 4974EA2004B GUIDE,WATER

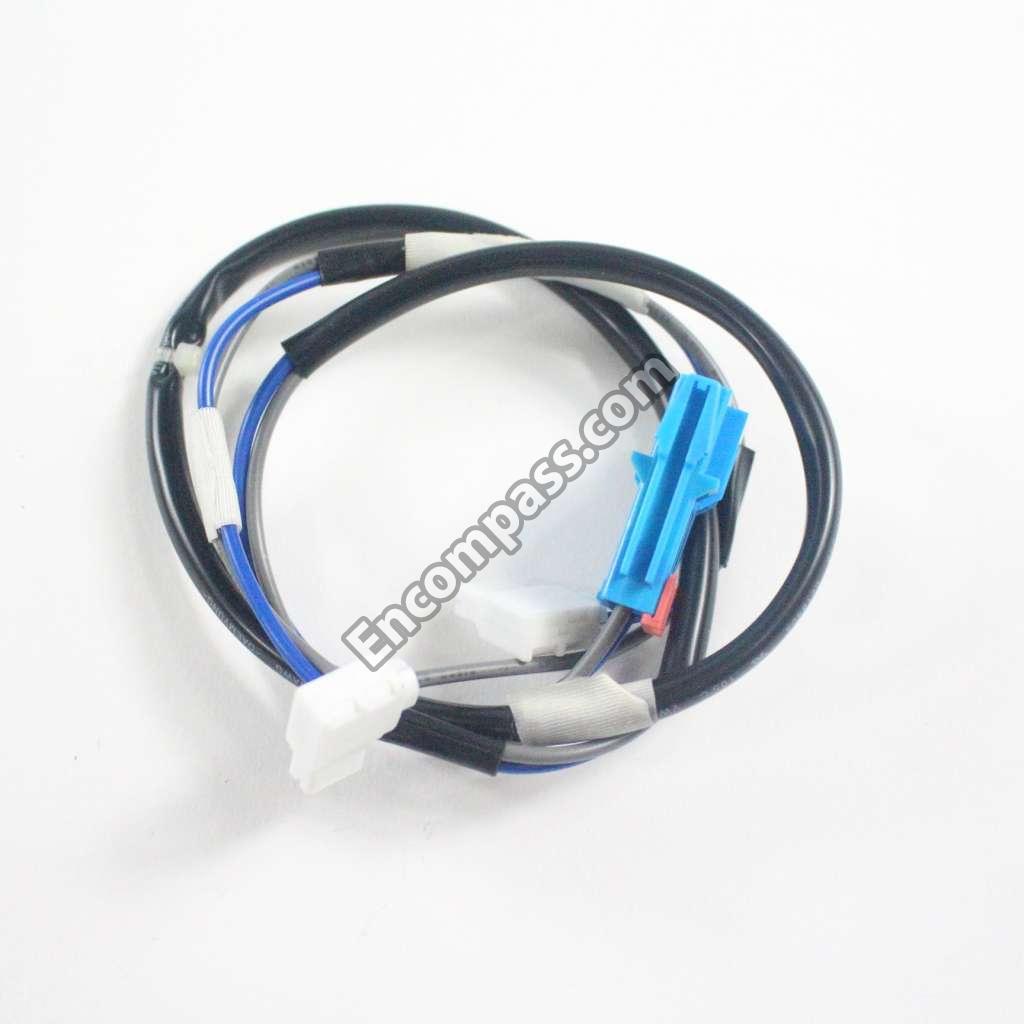

EAD64149701 EAD64149701 HARNESS,MULTI
EAD64129502 EAD64129502 HARNESS,MULTI
EAD64205501 EAD64205501 HARNESS,SINGLE
4930EA3002A 4930EA3002A HOLDER
MEG64119601 MEG64119601 HOLDER
AEJ73820101 AEJ73820101 HOLDER ASSEMBLY
AEJ33026605 AEJ33026605 HOLDER ASSEMBLY
AEJ33026401 AEJ33026401 HOLDER ASSEMBLY
AEM73732901 AEM73732901 HOSE ASSEMBLY,DRAIN
AEM73213001 AEM73213001 HOSE ASSEMBLY,DRAIN
MEJ61841803 MEJ61841803 HOSE,CONNECTOR
MEJ62524903 MEJ62524903 HOSE,INLET
MEJ62565301 MEJ62565301 HOSE,INLET
5214EA3004B 5214EA3004B HOSE,INLET
3661EA1009E 3661EA1009E HOUSING ASSEMBLY,CLUTCH COUPLING
AEN73131403 AEN73131403 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN73651402 AEN73651402 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN72910503 AEN72910503 HOUSING ASSEMBLY,DETERGENT
MEL62141603 MEL62141603 HUB,TUB(INNER)
MEL62141608 MEL62141608 HUB,TUB(INNER)
MEL62141606 MEL62141606 HUB,TUB(INNER)
MEL61841406 MEL61841406 HUB,TUB(INNER)
AEZ73913401 AEZ73913401 KNOB ASSEMBLY
4263FA3933C 4263FA3933C LEG ASSEMBLY
AFG72909523 AFG72909523 LID ASSEMBLY
4681EA1009C 4681EA1009C MOTOR ASSEMBLY,AC
AGB72932401 AGB72932401 NOZZLE ASSEMBLY
4020FA4208V 4020FA4208V NUT,COMMON
1NZZEA4001A 1NZZEA4001A NUT,COMMON
4020FA4208J 4020FA4208J NUT,COMMON
AHL72914404 AHL72914404 PACKAGE ASSEMBLY,C/SKD
AJB73816004 AJB73816004 PACKAGE ASSEMBLY,C/SKD
AGL75452922 AGL75452922 PANEL ASSEMBLY,FRONT
MGC63082702 MGC63082702 PANEL,REAR

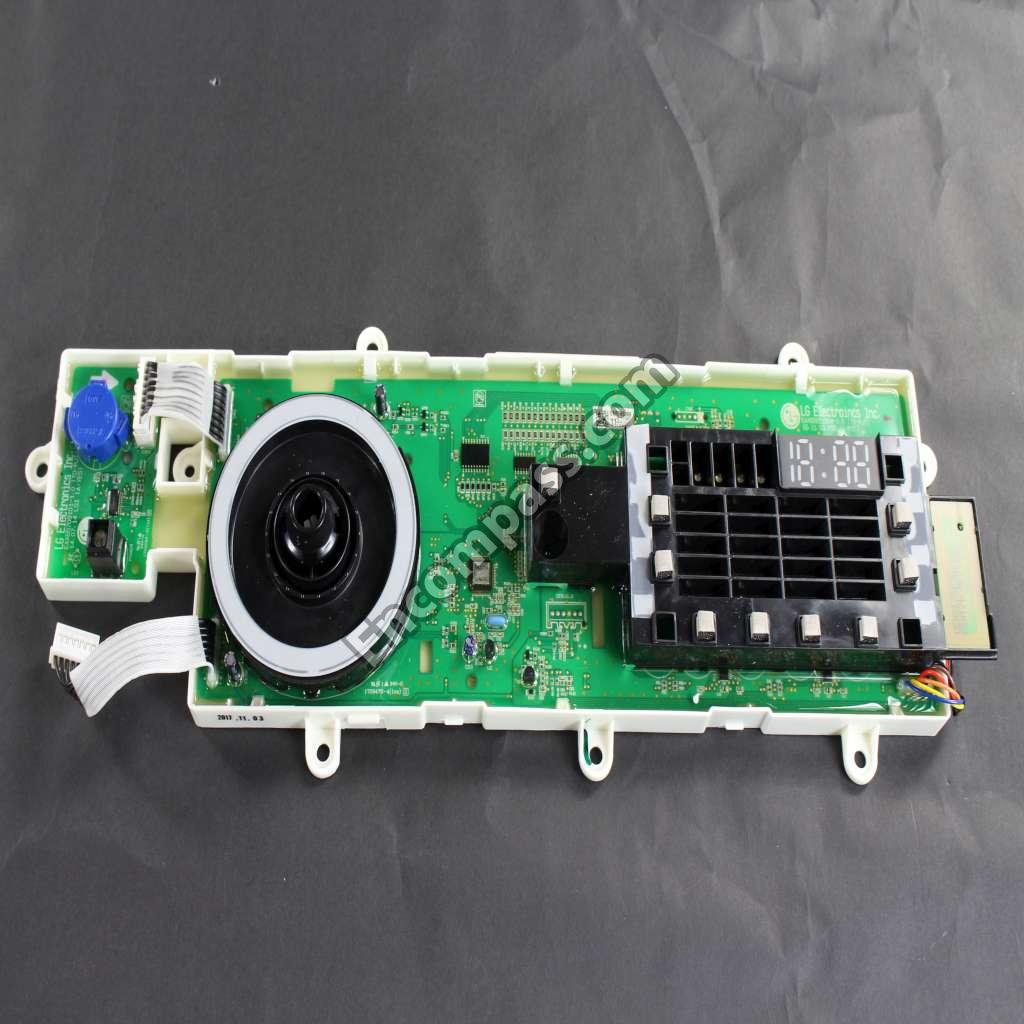

EBR78538811 EBR78538811 PCB ASSEMBLY,DISPLAY

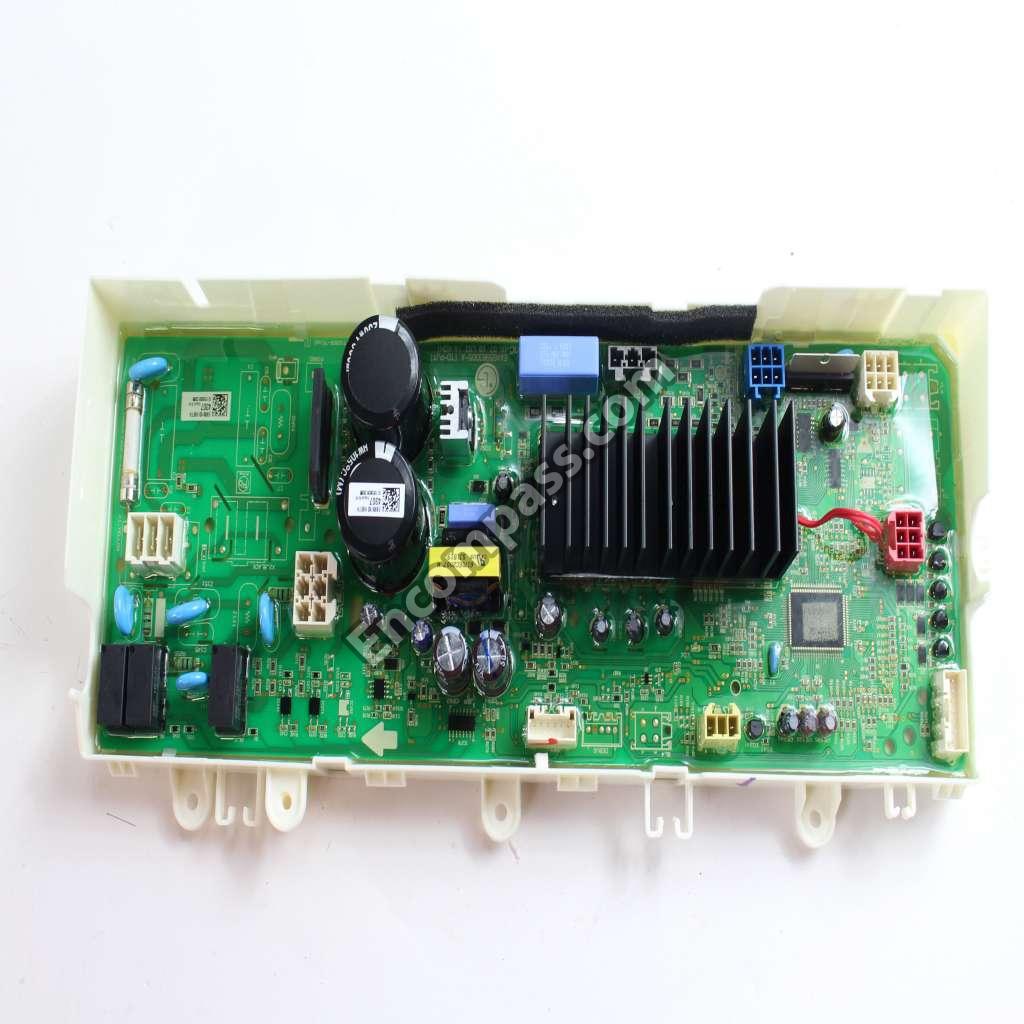

EBR81634307 EBR81634307 PCB ASSEMBLY,MAIN
EAD60778452 EAD60778452 POWER CORD ASSEMBLY
AGZ72909717 AGZ72909717 PULSATOR ASSEMBLY
AGZ72909701 AGZ72909701 PULSATOR ASSEMBLY
AGZ72909711 AGZ72909711 PULSATOR ASSEMBLY
5859EA1004X 5859EA1004X PUMP ASSEMBLY,DRAIN
5859EA1004P 5859EA1004P PUMP ASSEMBLY,DRAIN
MGC64379203 MGC64379203 REAR PANEL
FAB30598601 FAB30598601 SCREW,CUSTOMIZED
1TTL0403384 1TTL0403384 SCREW,TAPPING
FAB32139901 FAB32139901 SCREW,TAPPING
MBL65440004 MBL65440004 SOFTENER CAP

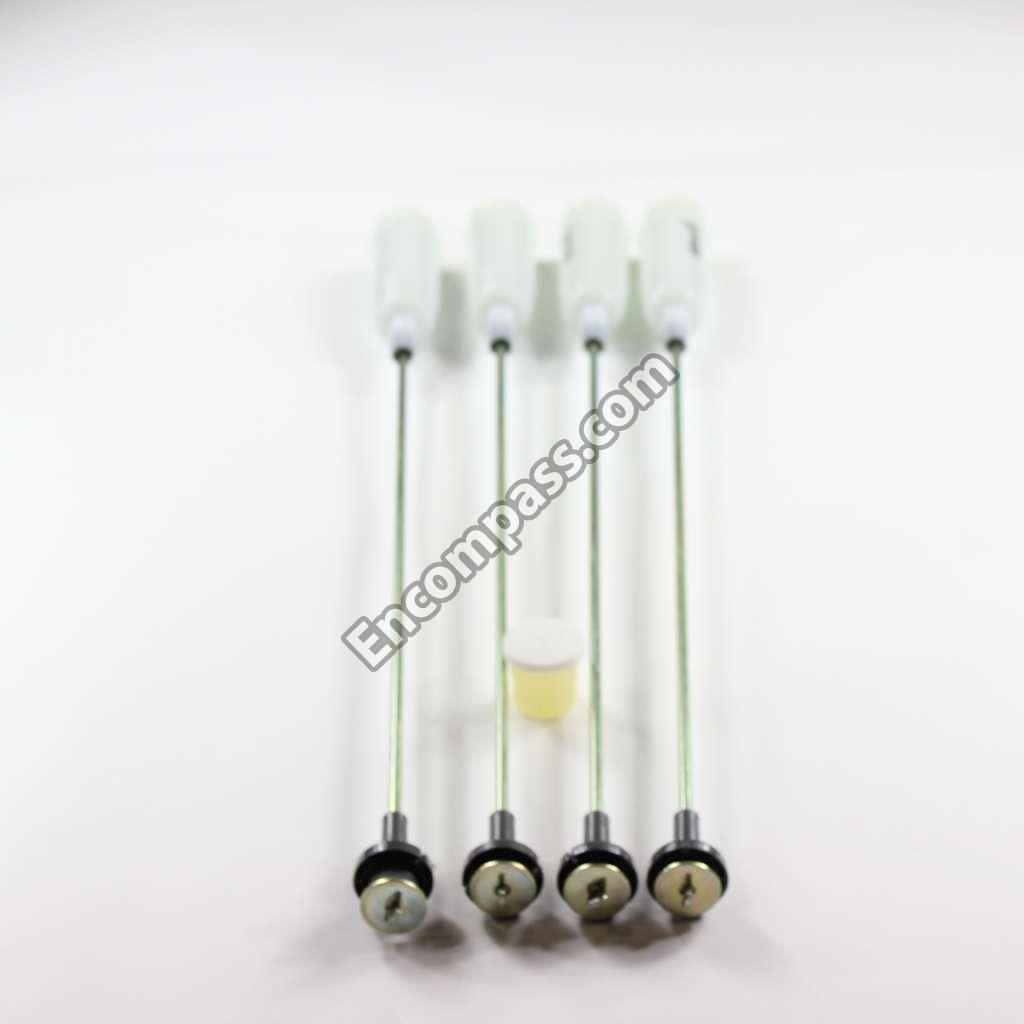

AJK72989704 AJK72989704 SUSPENSION ASSEMBLY
EBF61674802 EBF61674802 SWITCH ASSEMBLY
6501EA1001R 6501EA1001R SWITCH ASSEMBLY,SENSOR
AGF77725085 AGF77725085 TBD,PACKAGE ASSEMBLY,C/SKD
AJQ73293810 AJQ73293810 TUB ASSEMBLY,INNER

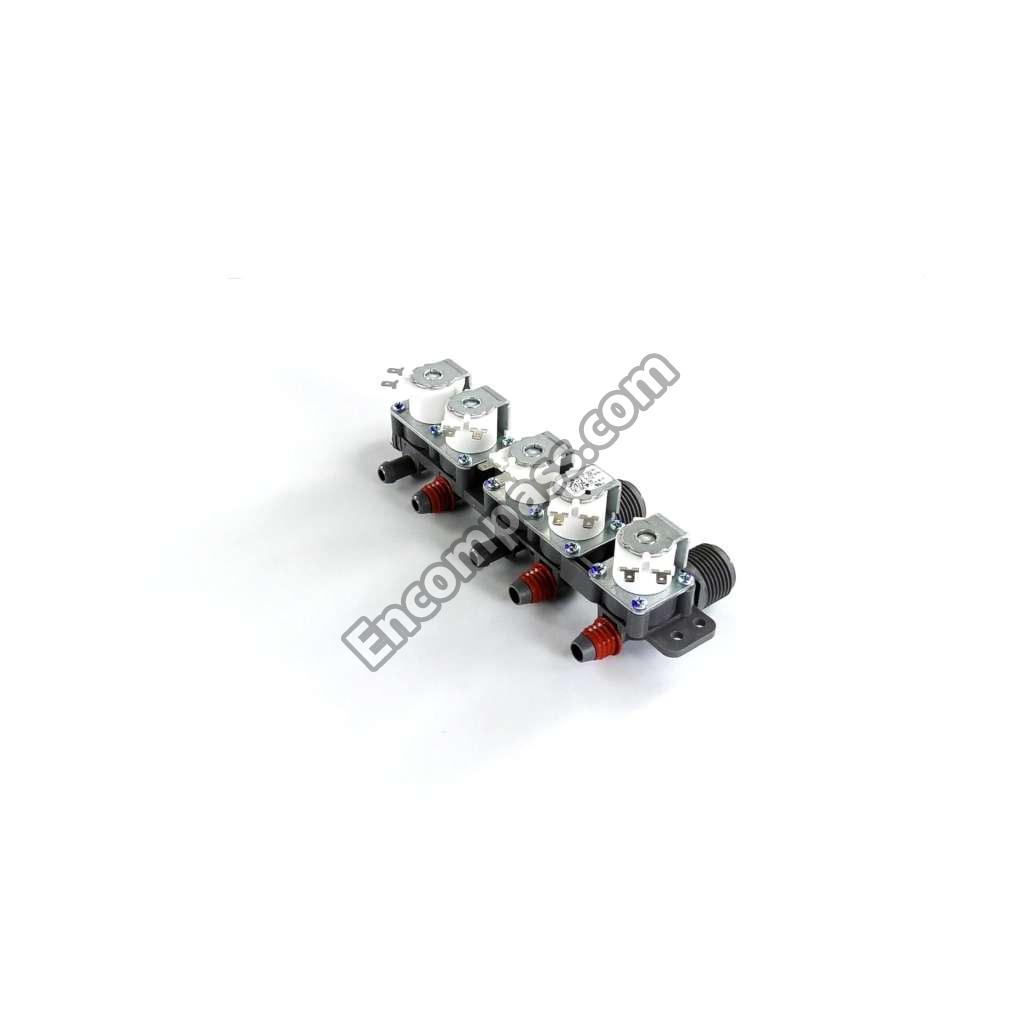

AJU75152601 AJU75152601 VALVE ASSEMBLY,INLET
4040FA4045C 4040FA4045C WASHER,COMMON
FAF30369201 FAF30369201 WASHER,COMMON
4W50100D 4W50100D WASHER,CUSTOMIZED
