Model Image
Manufacturer

LG

Model Number

WT7800CW

Description

5.5 Cu.ft. Smart Wi-fi Enabled Top Load Washer

Interactive Exploded View

Parts List

Part Number Description
AAN76350201 AAN76350201 BASE ASSEMBLY,CABINET
4011FA4353B 4011FA4353B BOLT,COMMON
AAZ72925601 AAZ72925601 BOX ASSEMBLY,DETERGENT
AAZ73855914 AAZ73855914 BOX ASSEMBLY,DETERGENT
MAY62020101 MAY62020101 BOX,DETERGENT

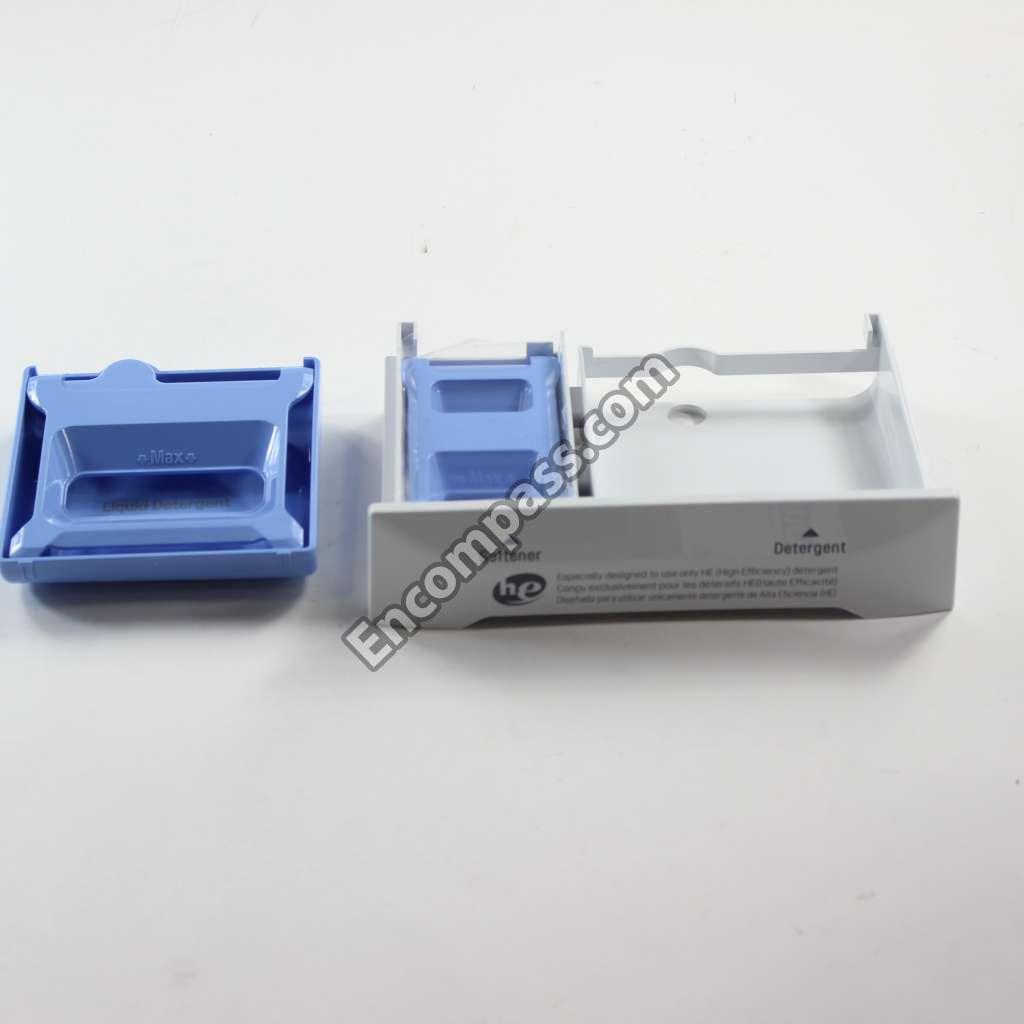

MAY65797106 MAY65797106 BOX,DETERGENT
ABA72939703 ABA72939703 BRACKET ASSEMBLY
ABA73249001 ABA73249001 BRACKET ASSEMBLY
ABA72939704 ABA72939704 BRACKET ASSEMBLY
ABA73249002 ABA73249002 BRACKET ASSEMBLY
MAZ65988601 MAZ65988601 BRACKET,TOP
ABJ75767801 ABJ75767801 CABINET ASSEMBLY
ABJ75767805 ABJ75767805 CABINET ASSEMBLY
MBL67700801 MBL67700801 CAP,COVER
MBL66358002 MBL66358002 CAP,COVER
5006EA3009B 5006EA3009B CAP,PULSATOR
MBL68689901 MBL68689901 CAP,SCREW
MBL62061501 MBL62061501 CAP,SOFTENER
MBL62061601 MBL62061601 CAP,SOFTENER
MBN65224202 MBN65224202 CASE
MBN65224204 MBN65224204 CASE
MBN65224205 MBN65224205 CASE
MBU62225402 MBU62225402 CONNECTOR,DRAIN HOSE
MCJ61861201 MCJ61861201 COUPLING
ACP73009001 ACP73009001 COUPLING ASSEMBLY
ACQ88516306 ACQ88516306 COVER ASSEMBLY,TUB
MCK62185701 MCK62185701 COVER,GUIDE
MCK66959302 MCK66959302 COVER,PROTECT
MCK66959301 MCK66959301 COVER,PROTECT
MCK70144701 MCK70144701 COVER,PROTECT
MCK70144702 MCK70144702 COVER,PROTECT
MCK69953701 MCK69953701 COVER,REAR
3808FA1368F 3808FA1368F COVER,REAR
MCK69953702 MCK69953702 COVER,REAR
MCK70055601 MCK70055601 COVER,TOP
MCK70055606 MCK70055606 COVER,TOP
MCK70055607 MCK70055607 COVER,TOP
MCK70055608 MCK70055608 COVER,TOP
MCK70055609 MCK70055609 COVER,TOP
MCK70084401 MCK70084401 COVER,TUB
MCK70084402 MCK70084402 COVER,TUB
MCQ67395201 MCQ67395201 DAMPER
MCQ67395202 MCQ67395202 DAMPER
5040FA4226B 5040FA4226B DAMPER
MCR67147703 MCR67147703 DECOR,PANEL
MCR66426610 MCR66426610 DECOR,PANEL

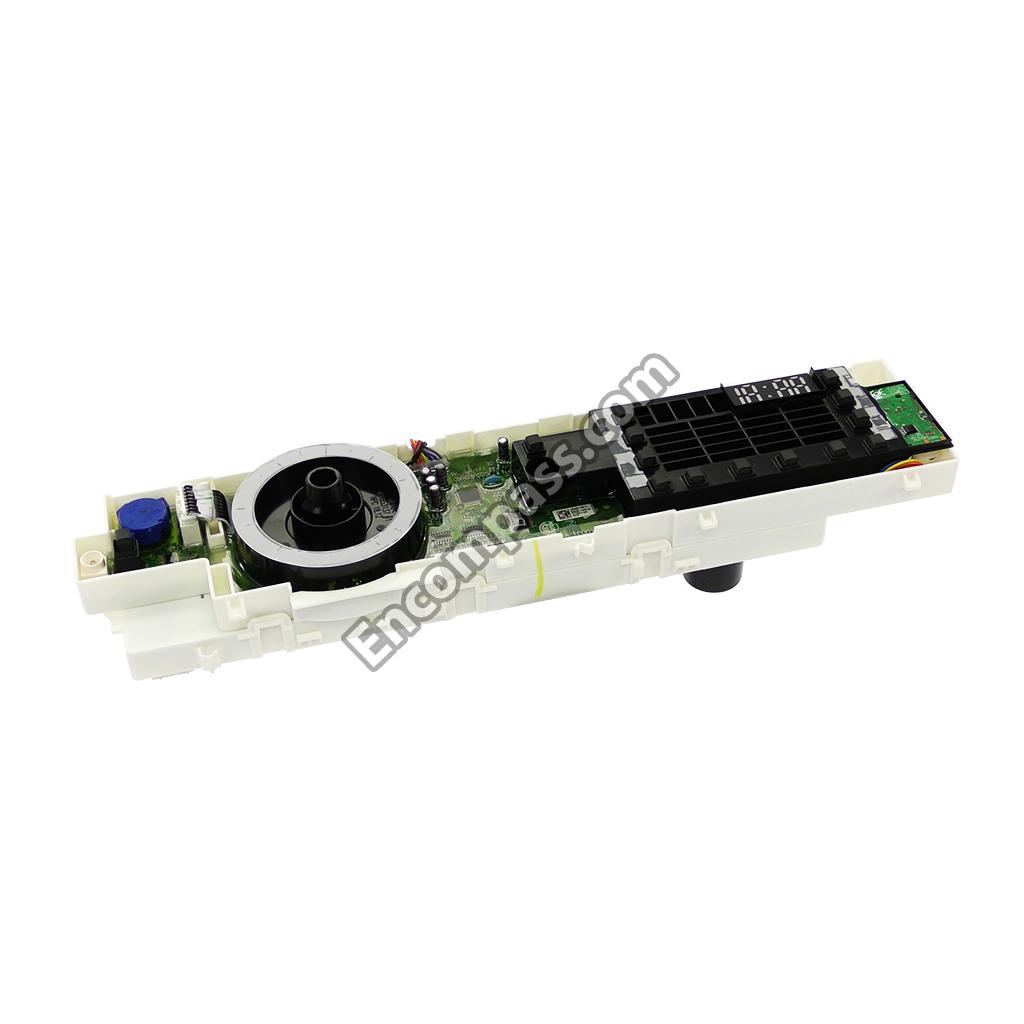

EBR85755505 EBR85755505 DISPLAY CONTROL BOARD
6201EC2002Q 6201EC2002Q FILTER ASSEMBLY
6201EC2002V 6201EC2002V FILTER ASSEMBLY
MDS63251203 MDS63251203 GASKET
4974EA2004A 4974EA2004A GUIDE,WATER
EAD60820241 EAD60820241 HARNESS,MULTI
EAD62708437 EAD62708437 HARNESS,MULTI
EAD60820242 EAD60820242 HARNESS,MULTI
EAD60820248 EAD60820248 HARNESS,MULTI
EAD62708456 EAD62708456 HARNESS,MULTI
EAD64545806 EAD64545806 HARNESS,SINGLE
EAD64545819 EAD64545819 HARNESS,SINGLE
MEG64119601 MEG64119601 HOLDER
4930EA3002A 4930EA3002A HOLDER
AEJ76300502 AEJ76300502 HOLDER ASSEMBLY
AEJ76300501 AEJ76300501 HOLDER ASSEMBLY
AEJ33026401 AEJ33026401 HOLDER ASSEMBLY
AEJ73820101 AEJ73820101 HOLDER ASSEMBLY
AEM73732901 AEM73732901 HOSE ASSEMBLY,DRAIN
AEM75152901 AEM75152901 HOSE ASSEMBLY,DRAIN
5214EA3004B 5214EA3004B HOSE,INLET
AEN74532611 AEN74532611 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN74532613 AEN74532613 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN74691601 AEN74691601 HOUSING ASSEMBLY,DETERGENT
AEN74691606 AEN74691606 HOUSING ASSEMBLY,DETERGENT
MEL62741701 MEL62741701 HUB,TUB(INNER)
MEL62741710 MEL62741710 HUB,TUB(INNER)
AEZ73913401 AEZ73913401 KNOB ASSEMBLY
4263FA3933C 4263FA3933C LEG ASSEMBLY
4263FA3933E 4263FA3933E LEG ASSEMBLY
AFG73629734 AFG73629734 LID ASSEMBLY
AFG73629730 AFG73629730 LID ASSEMBLY
EAU64283201 EAU64283201 MOTOR ASSEMBLY,DC,CLUTCH
EAU63743301 EAU63743301 MOTOR ASSEMBLY,DC,CLUTCH
AGM30029101 AGM30029101 NOISE FILTER,PARTS ASSEMBLY,SVC
AGB72932407 AGB72932407 NOZZLE ASSEMBLY
AGB72932401 AGB72932401 NOZZLE ASSEMBLY
4020FA4208J 4020FA4208J NUT,COMMON
FAD33190601 FAD33190601 NUT,COMMON
4020FA4208V 4020FA4208V NUT,COMMON
AGL76194003 AGL76194003 PANEL ASSEMBLY,FRONT
MGC65100301 MGC65100301 PANEL,REAR
AGM74269801 AGM74269801 PARTS ASSEMBLY
EBR86498803 EBR86498803 PCB ASSEMBLY
EBR86692713 EBR86692713 PCB ASSEMBLY,MAIN
EAD40521487 EAD40521487 POWER CORD ASSEMBLY
EAD60778452 EAD60778452 POWER CORD ASSEMBLY
EAD65611406 EAD65611406 POWER CORD ASSEMBLY
AGZ72909713 AGZ72909713 PULSATOR ASSEMBLY
AGZ72909711 AGZ72909711 PULSATOR ASSEMBLY
AGZ72909722 AGZ72909722 PULSATOR ASSEMBLY
AGZ72909725 AGZ72909725 PULSATOR ASSEMBLY
AGZ72909728 AGZ72909728 PULSATOR ASSEMBLY
AAN76350101 AAN76350101 PUMP ASSEMBLY,DRAIN
AHA75673404 AHA75673404 PUMP ASSEMBLY,DRAIN
AAN73209838 AAN73209838 PUMP ASSEMBLY,DRAIN
AHL73894503 AHL73894503 ROTOR ASSEMBLY
AHL73894509 AHL73894509 ROTOR ASSEMBLY
AHL76195121 AHL76195121 ROTOR ASSEMBLY,COMBINED
FAB30598601 FAB30598601 SCREW,CUSTOMIZED
FAB33199206 FAB33199206 SCREW,CUSTOMIZED
AJB73816015 AJB73816015 STATOR ASSEMBLY
AJB73816031 AJB73816031 STATOR ASSEMBLY
AJB76315035 AJB76315035 STATOR ASSEMBLY,COMBINED
AJK73229710 AJK73229710 SUSPENSION ASSEMBLY
AJK73229704 AJK73229704 SUSPENSION ASSEMBLY
AJK73309707 AJK73309707 SUSPENSION ROD KIT ASSEMBLY
EBF61674802 EBF61674802 SWITCH ASSEMBLY
6501EA1001R 6501EA1001R SWITCH ASSEMBLY,SENSOR
AJQ74774302 AJQ74774302 TUB ASSEMBLY,INNER
AAN76350205 AAN76350205 TV STAND ASSEMBLY,CABINET
AJU75152602 AJU75152602 VALVE ASSEMBLY,INLET
FAF30369201 FAF30369201 WASHER,COMMON
4040FA4045C 4040FA4045C WASHER,COMMON
1WZZEA4002C 1WZZEA4002C WASHER,COMMON
